A140 User Guide

Contents

The A140 is supplied with the correct power adapter for your
local system. The package may also contain optional accessories
shown below, depending on your service provider.
The product is protected with a clear plastic film. This should be
removed before use.

Optional accessories

HDMI cable
Ethernet cable
10 way mini-DIN to
3 x RCA or 6 x RCA cable
Remote control
10 way mini-DIN to
and batteries
SCART cable

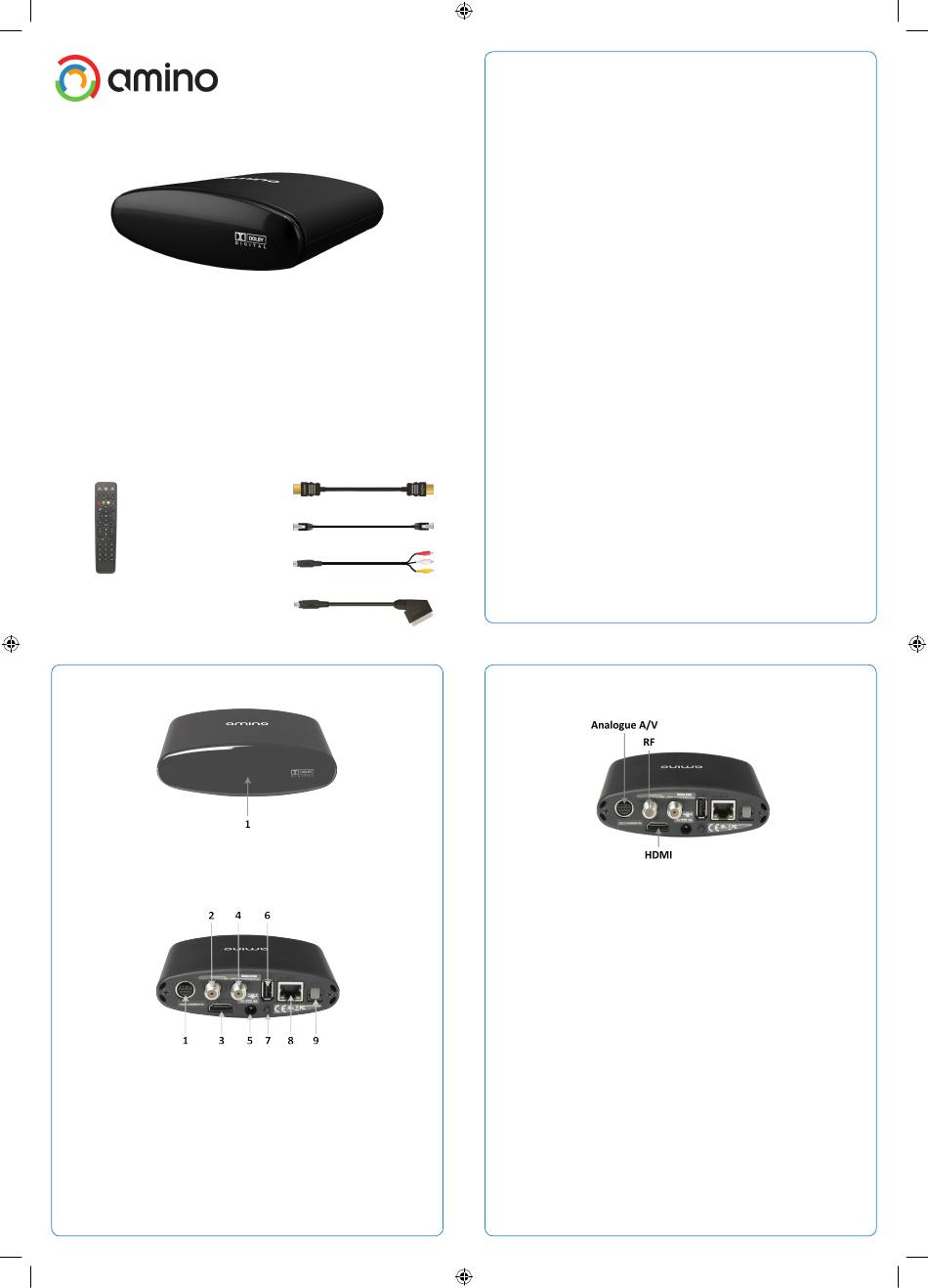

1. Overview of the A140

1. Power/Activity LED:
Green = on.
Green flashing = IR command received.
Red = standby.
1. Analogue A/V output.
2. RF modulator output.
3. HDMI output.
4. RF antenna input.
5. DC power input.
6. USB port.
7. Service button. No function in normal use. Only use under
guidance from your service provider.
8. Ethernet port.
9. S/PDIF optical output.

Important - Safety instructions

Read these instructions carefully and keep for future reference. Note all
warnings.
The product contains no user-serviceable parts. Refer all servicing to qualified
service personnel.
Handle the product with care and do not attempt to dismantle the product.
Do not expose the product or its accessories to any liquids, rain or moisture.
Do not locate the product near a heat source and do not block ventilation
holes: the product will become warm during operation. Allow at least 10 cm
(4") around the product for air circulation.
Do not locate the product where it may be subject to physical shock, vibration
or where the product may fall over.
Do not place the product on soft furnishings or carpets.
Only use the power supply provided by the manufacturer. The use of any
other type of power supply may invalidate any approval or warranty applying
to the product and may be dangerous. If the power supply does not match
your local system, contact your product supplier.
Protect the power supply cord from damage.
The disconnect device is the power supply cord. Removing the power supply
cord from the mains supply isolates the product from the mains.
Disconnect the product from the mains supply if left unused for long periods
of time or during electrical storms.
Disconnect the product before cleaning, and use a dry cloth only.
Only use attachments and accessories specified by the manufacturer.
The product is for indoor use only.

2. Connecting the A140 to a TV

Warning! Before connecting or disconnecting any cable switch
off all system devices (TV, A/V Amplifier, etc) and disconnect
from the mains electrical supply.
The A140 provides three options for connecting audio and
video to your TV:
HDMI (recommended): best quality. Connect an HDMI cable
to the HDMI output of the A140 and to the HDMI input of
your TV.
Analogue A/V: good quality. SD only, composite or
component with analogue audio left/right (depending on
supplied A/V lead).
RF: moderate quality. Connect the RF cable directly to a TV
tuner input. DO NOT connect the RF output to any cable
distribution network, satellite dish or antennae. A TV terrestrial
antenna or cable connection may only be made to the RF
input to provide loop-through functionality to the TV via the
STB. Connections to a cable distribution system must be made
through a galvanic isolator.
