Amino Amigo 7X User Manual

Amigo 7X User Guide

Contents

The Amigo 7X is supplied with the correct power adapter for your
local system. The package may also contain optional accessories
shown below, depending on your service provider.
The Amigo 7X is protected with a clear plastic film. This should be
removed before use.

Optional accessories

HDMI cable
Ethernet cable
3.5 mm jack to
3 x RCA cable
Remote control
and batteries

1. Connecting the Amigo 7X to a TV

Warning! Before connecting or disconnecting any cable, switch
off all system devices (TV, A/V Amplifier, etc.) and disconnect
from the main electrical supply.
Connect cable to STB + TV
The Amigo 7X provides options for connecting audio and video
to your TV:
HDMI (recommended): Best quality. Connect an HDMI cable
to the HDMI output of the Amigo 7X and to the HDMI input of
your TV.
Analogue A/V: Good quality. SD only composite with analogue
audio left/right.

Connecting via Wi-Fi

Internal dual band Wi-Fi is a feature for the Amigo 7X. Please
contact your service provider for detailed instructions about the
wireless network configuration.
READ

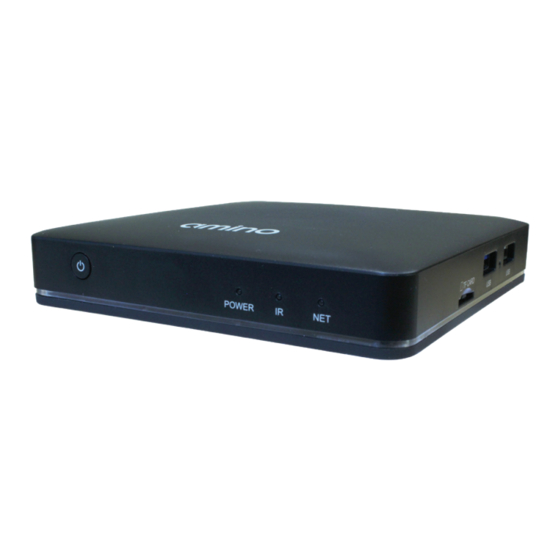

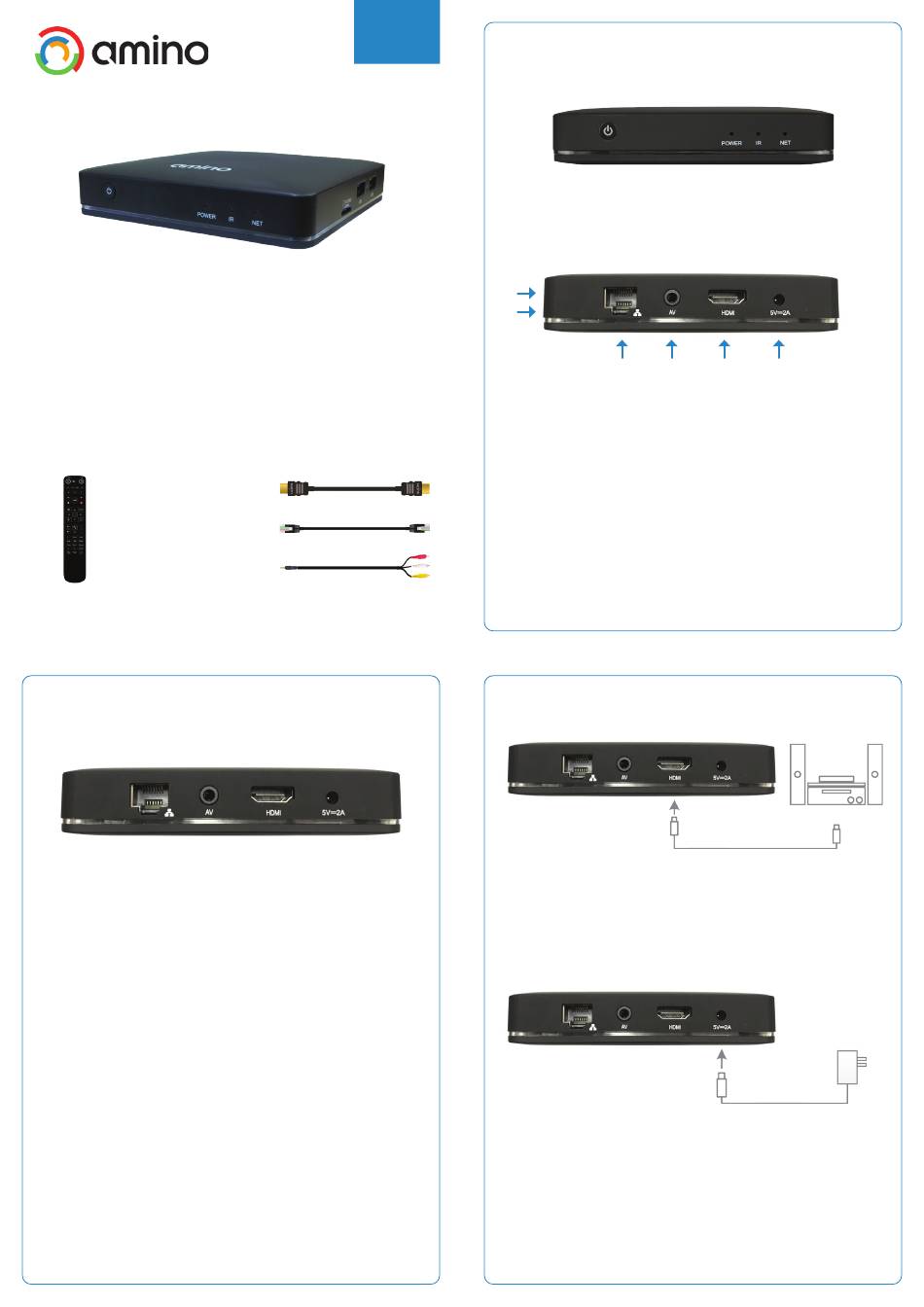

Overview of the Amigo 7X

ME FIRST
1. Power/Activity LED and IR receiver.
5
6
1. DC power input 5V 2A.
2. HDMI port.
3. Analogue A/V output (adapter cable available).
4. Ethernet port.
5. 2X USB port. DO NOT use this port for Powered USB.
Use for external storage media such USB flash drive (external
storage media must be formatted as FAT32). You can also
update software and program lists using this connection.
6. MicroSD Slot (IP only).

2. Connecting the Amigo 7X to an A/V receiver

Connect an HDMI cable to the HDMI output of the Amigo 7X and
to the HDMI input of your A/V receiver or home cinema system.

3. Connecting the Amigo 7X to the power supply

Warning! The Amigo 7X must only be used with the supplied
power adapter.
Connect the power adapter to the power input of the Amigo 7X,
then connect the power adapter to the mains supply. The power
adapter provided will be specific to your region. Ensure you have
the correct power adapter for your region. If you are unsure,
contact your service provider.
4 3 2 1
