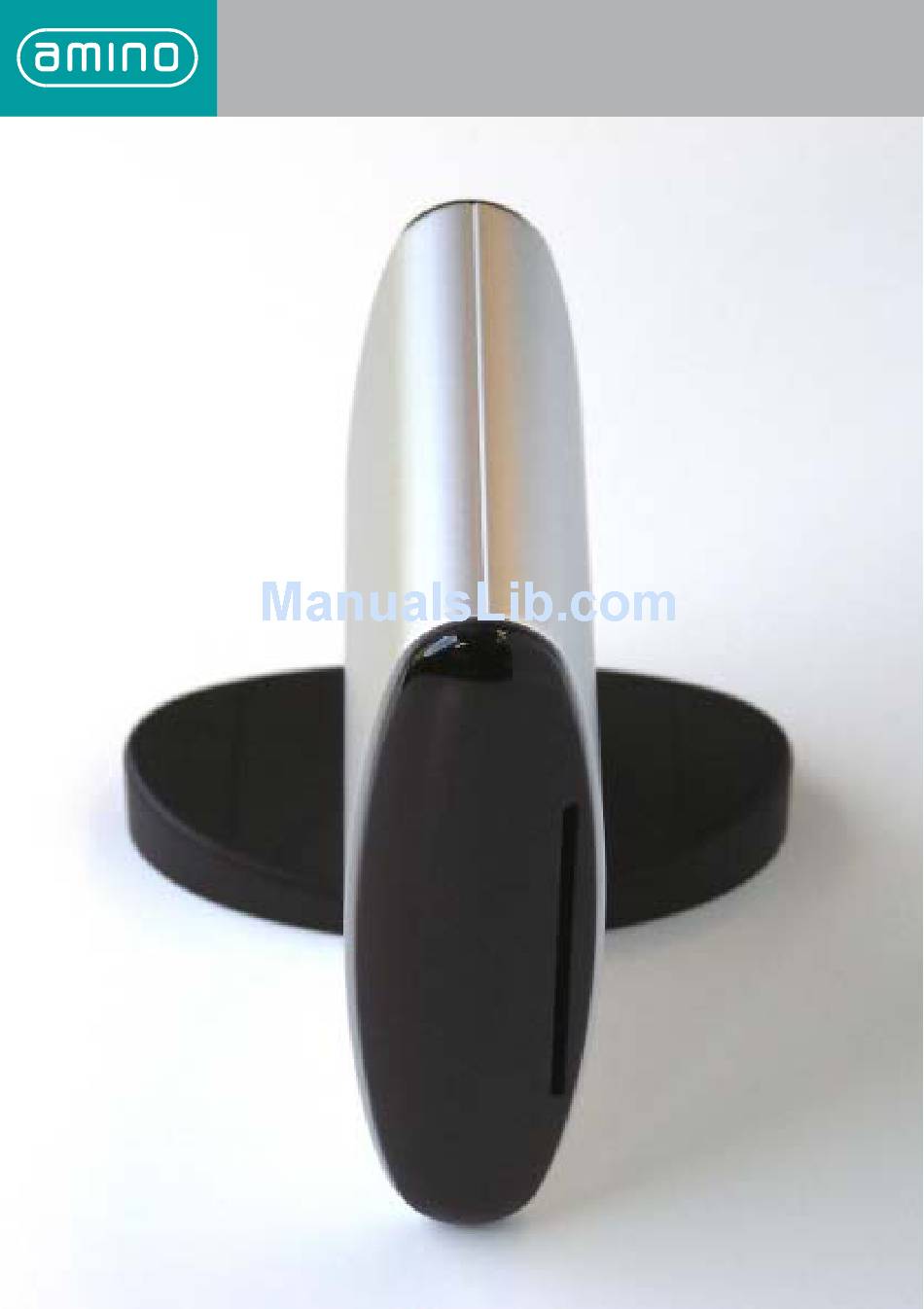

  • Page 1 AmiNET110 Set-Top Box User Guide Issue 1.1 January 2006...
  • Page 2 Your AmiNET110 IP based set top box is a state of the art gateway to the next generation of interactive digital television services. It gives you access to Video on Demand, Multicast Video and the World Wide Web on a standard television.
  • Page 3 AmiNET110 - FCC Statement of Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Table Of Contents

    Your AmiNET110................4 AmiNET110 Features...............4 Installation................6 AmiNET110 connected to TV, no RF............6 AmiNET110 connected to TV via RF............7 AmiNET110 connected to TV via Amino A/V, to amplifier via SPDIF & to VCR via RF............8 Mounting the AmiNET110..............9 Horizontal Mounting................9 Vertical Mounting................9 Using the AmiNET110..............10...

  • Page 5: Your Aminet110

    Your AmiNET110 Your AmiNET110 IP based set top box is a state of the art gateway to the next generation of interactive digital television services. It gives you access to Video on Demand, Multicast Video and the World Wide Web on a standard television.
  • Page 6 Power/Ir Receive Indicator Smart Card (Not supplied) RF Input Power Input RF Output AV Output Mini-DIN Ethernet SP-DIF Digital Output RJ-45 RCA-Phono © Amino Communications Ltd 2006...

  • Page 7: Installation

    The AmiNET110 can be installed quickly and easily by following these step-by-step instructions. You can use the Amino A/V Cable (supplied) or an RF cable to connect the AmiNET110 to your Television. If you have the capability, you can also connect the AmiNET110 to a stereo amplifier via the SP-DIF digital output.

  • Page 8: Aminet110 Connected To Tv Via Rf

    RGB SCART inputs). • Connect your incoming RF cable (from your aerial, cable TV box, etc) to the RF In on the AmiNET110 and connect an RF cable from the AmiNET110’s RF Out to your television.

  • Page 9: Aminet110 Connected To Tv Via Amino A/V, To Amplifier Via Spdif & To Vcr Via Rf

    • Connect the incoming RF signal from your aerial/cable box to the RF In on the AmiNET110. • Connect an RF cable from the RF Out on the AmiNET110 to the RF Input on your VCR. • If required, connect the RF Out on your VCR to your television •...

  • Page 10: Mounting The Aminet110

    Mounting the AmiNET110 The AmiNET110 can be mounted either horizontally or vertically, and is supported securely in both orientations. Horizontal mounting To mount the unit horizontally simply place it down onto the upper surface of the base moulding, which is contoured to reflect the product’s shape.

  • Page 11: Using The Aminet110

    Using The AmiNET110 All user interaction with the AmiNET110 is handled via the supplied remote control or with an optional keyboard. The supplied IR remote control is illustrated below: Power TV control mode STB control mode (Illuminates when selected) (Illuminates when selected)

  • Page 12: Buttons & Key Combinations

    • VOL +/- Increase/Decrease the volume. • MUTE -Toggle the sound on/off. Web control The following buttons can be used to control access to the Web: • SELECT - Tilt to move the mouse pointer/highlight and press to select. © Amino Communications Ltd 2006...
  • Page 13 2. Letterbox mode – Widescreen content is viewed in a letterbox, black bars will be present at the top and bottom of the picture and the entire width of the transmission is visible. © Amino Communications Ltd 2006...
  • Page 14 3. Widescreen TV – If you have a Widescreen TV (16:9) select this option to properly utilize your TV’s geometry. • Primary Language – First choice for subtitle selection. • Secondary Language – Second choice for subtitle selection. © Amino Communications Ltd 2006...

  • Page 15: Standards

    CSA 22.2 No. 60950-00 3 Edition UL60950 3 Edition UL1310 (AC & DC Adapters) (for PSU) EN55022: Specifications for Limits and Methods of measurement IT equipment - radio disturbance characteristics.. EC 89/336/EEC: The EMC Directive. FCC Part 15. © Amino Communications Ltd 2006...
  • Page 16 © Amino Communications Ltd 2006...
  • Page 17 Amino Communications Ltd Amino Comm Amino Comm unications Ltd unications Ltd unications Ltd unications Ltd Registered in England and Wales No. 3490180 Registered office: Buckingway Business Park, Anderson Road, Swavesey Cambridge, CB4 5UQ A wholly owned subsidiary of Amino Holdings Ltd...
