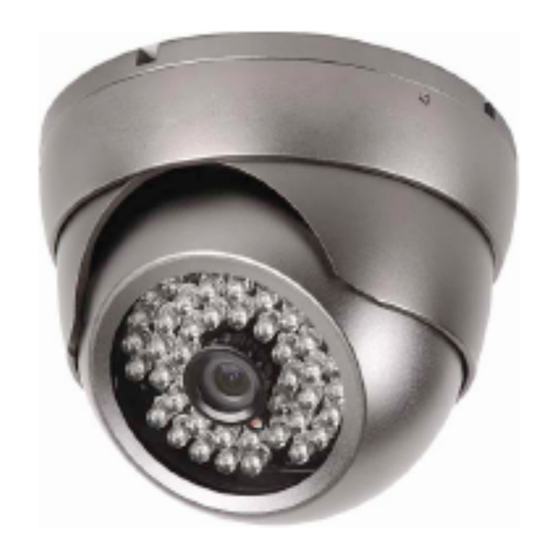

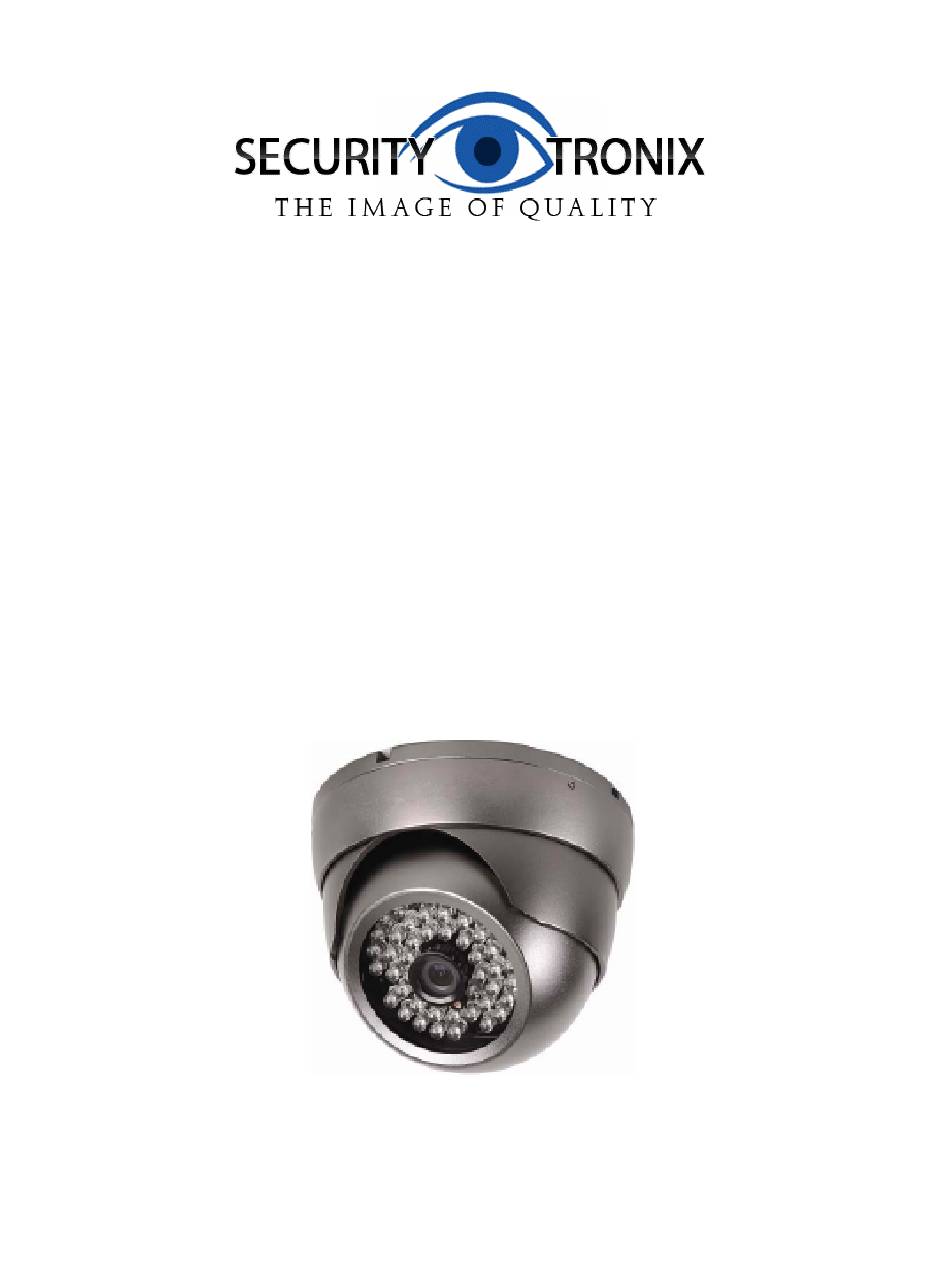

- Page 1 INSTALLATION MANUAL ST-D540IRVP2812 –B Vandalproof Infrared Dome Color Camera...
- Page 2 This package contains: One ST-D540IRVP2812-B infrared dome color camera One installation manual Note: The ST-D540IRVP2812-B requires a minimum 12VDC 500mA power supply such as the ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-D540IRVP2812-B is a vandalproof infrared dome color camera designed around a 1/3”...
- Page 3 INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.
- Page 4 4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75Ω coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. d.
