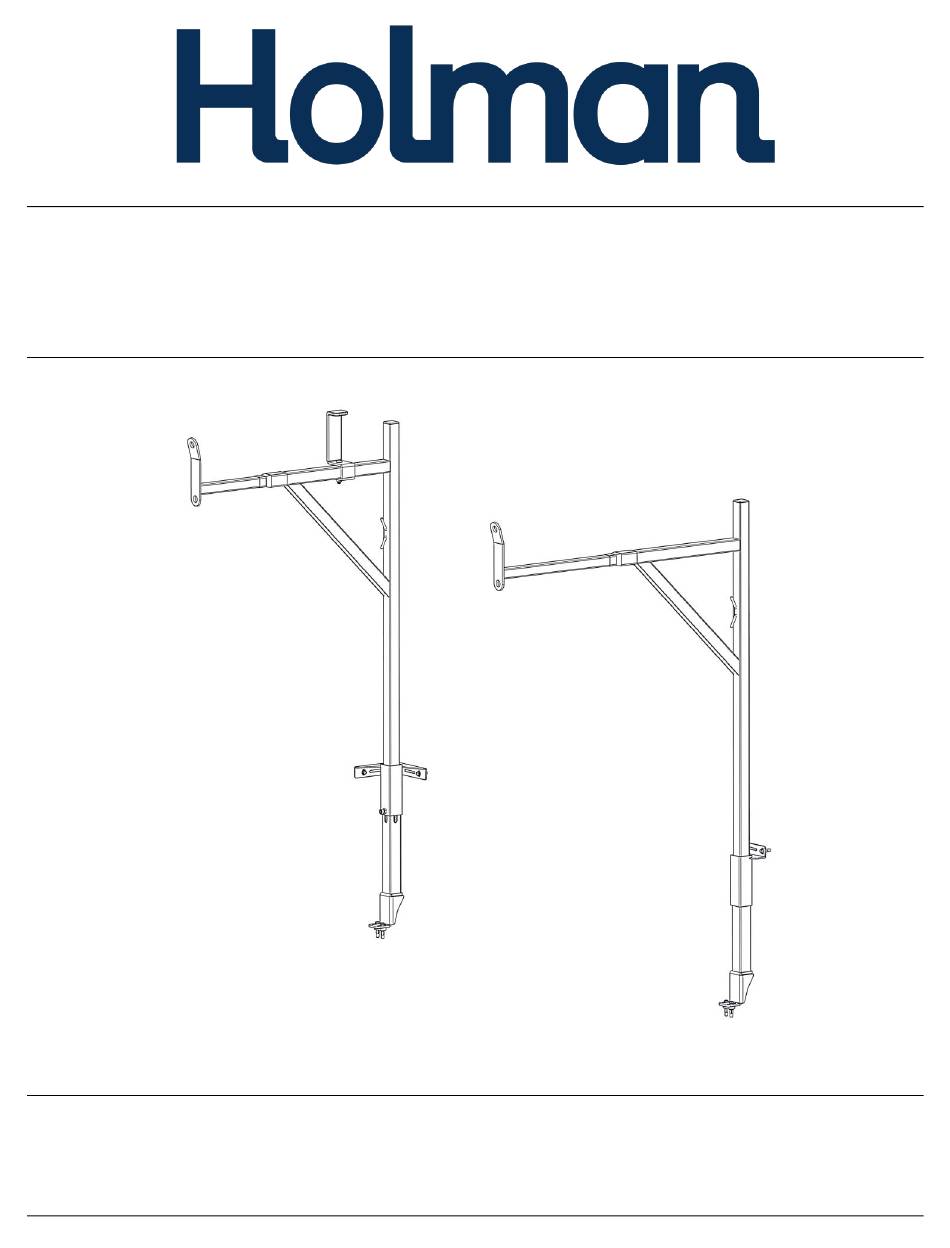

- Page 1 Installation Guide 30091 Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20220317R1 DATE: __________________...
-
Page 2: Table Of Contents
Instructions – 30091 *PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING, INSTALLING, AND USING THIS PRODUCT.* Warning Always check for wires, fuel tanks and lines, brake lines and other important vehicle functionality items prior to drilling and installing all products. -
Page 3: Parts List
Instructions – 30091 Parts List For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2... -
Page 4: Hardware
Instructions – 30091 Hardware For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 3... -
Page 5: Step 1 ─ Find Front Mounting Locations
Instructions – 30091 Step 1 ─ Find Front Mounting Locations At the front of the bed, near the cab of the truck, determine a safe location on the truck bed floor where the bottom of the lower leg can be mounted. Insert the lower leg into the front corner bracket. -
Page 6: Step 2 ─ Find Rear Mounting Locations
Instructions – 30091 Step 2 ─ Find Rear Mounting Locations At the rear of the bed, position the bracket and the lower leg into the desired location as in the previous step. Determine a safe location on the truck bed floor where the bottom of the lower leg can be mounted. -
Page 7: Step 3 - Attach Lower Legs
Instructions – 30091 Step 3 – Attach Lower Legs Attach both lower legs and mount brackets to the truck bed using 1/4"x 1-1/4” hex head bolts, 1/4" lock washers and 1/4" flat washers and insert into the previously installed plus nut. -
Page 8: Step 4 - Install Upright Frame
Instructions – 30091 Step 4 – Install Front Upright Frame Insert the upright frame into the previously installed front corner bracket. Adjust to the desired height and secure in place using 3/8” x 3/4" socket head screws. For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) -
Page 9: Step 5 - Install Upright Frame
Instructions – 30091 Step 5 – Install Rear Upright Frame Insert the upright frame into the previously installed rear bracket. Adjust to desired height and secure in place using 3/8” x 3/4" socket head screws. For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) -
Page 10: Step 6 - Install Strut Bracket
Instructions – 30091 Step 6 – Install Strut Bracket Insert the strut brackets into the previously installed upright frames. Be sure to place the rubber sleeve over the both pieces as shown. Have the hole in the rubber sleeve align with the threaded nut on the side of the upright frame. -
Page 11: Step 7 - Mount Stop Bracket
Instructions – 30091 Step 7 – Mount Stop Bracket Attach the stop bracket to the front upright frame using a 3/8” x 2-3/4” carriage bolt, a 3/8” flat washer and a 3/8” nyloc nut in the orientation shown. Adjust the ladder stop to the desired position. Tighten. - Page 12 Instructions – 30091 MAKE SURE ALL HARDWARE IS TIGHT. INSTALLATION IS NOW COMPLETE. For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 11...
