Misting System
Parts Included:
• 4 x Metres of Misting Hose
• 6 x Misting Tees
• 1 x Elbow Connector
• 1 x Misting Elbow
Instruction Manual
Product Code: MK21014
Note: Flush Misting System thoroughly before
attaching misting Nozzles to prevent blockages.
Scan the QR Code on the right to see more information on
the Misting System - including a product guide video.
4
Metre Expansion Kit
• 10 x Hose Clamps with Masonary Nails
• 6 x Brass Misting Nozzles
• 1 x Tee Connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MK21014 and is the answer not in the manual?

Questions and answers

Related Manuals for Holman MK21014

Summary of Contents for Holman MK21014

  • Page 1 • 1 x Elbow Connector • 1 x Tee Connector • 1 x Misting Elbow Instruction Manual Product Code: MK21014 Note: Flush Misting System thoroughly before attaching misting Nozzles to prevent blockages. Scan the QR Code on the right to see more information on...

  • Page 2: Table Of Contents

    Table of Contents 1. Outdoor Cooling Misting System....p1 2. The Way It Works........p1 3. Glossary..........p2 4. Misting System Assembly & Installation..p3 A. Plan Your Misting Installation....p3 B. Water Supply.........p3 C. Positioning Misting Jets......p4 D. Installing The Fittings......p5 E. Installing The Misting System....p6-7 F.

  • Page 3: Outdoor Cooling Misting System

    Generally, you will not want to run the misting systems continuously. If you do, the general environment may become damp and unpleasant. The simple way to solve this problem is to use a Holman Misting Timer. This timer can be programmed to suit the environmental conditions of the day.

  • Page 4: Glossary

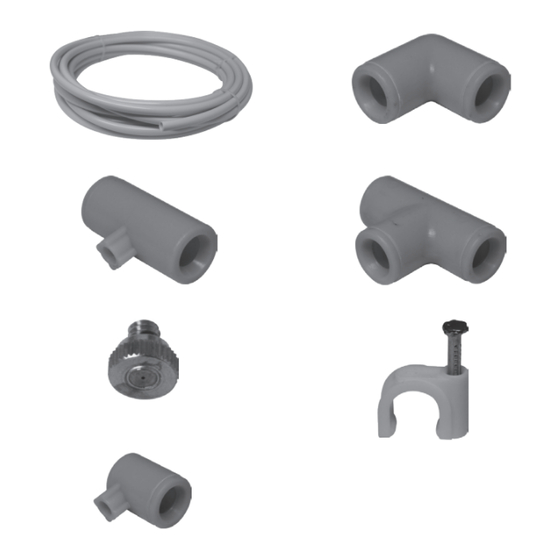

    Glossary Parts Included: 1) 4 x Metres of Misting Hose 5) 1 x Elbow Connector 2) 6 x Misting Tees 6) 1 x Tee Connector 3) 6 x Brass Misting Nozzle 7) 10 x Hose Clamps with Masonary Nails 4) 1 x Misting Elbow...

  • Page 5: Misting System Assembly & Installation

    Of course, the misting pipe can be connected directly to a garden tap. HINT: If you want to easily maintain the use of the garden tap for other uses, install a Holman 2 way or 4 way manifold and fit the misting system to one outlet.

  • Page 6: Positioning Misting Jets

    • Try and create a curtain of mist at least on two sides of the area being cooled. • Install a Holman misting timer. This will allow you to regulate the amount of water entering a space by adjusting the “ON” times and “OFF” times of the timer.

  • Page 7: Installing The Fittings

    To ensure a good joint, the tube must be cut “square” and “burr free”. The best way to achieve this result is to use the Holman misting tube cutter. This ensures a clean square cut. It is also very quick to use.

  • Page 8: Installing The Misting System

    Run the misting tube to the position where you want your first misting jet. Use Holman Misting Tee or Elbow connectors to go around corners or split the pipe runs. Elbow or Tee...
  • Page 9 (Misting Jet) (Hose Clamp) (Hose Clamp) The Holman hose clamps use a very strong masonry nail that should not bend when you hammer it into timber or masonry. HINT 1: Run pipework along mortar joints in brickwork. Hammer the hose clamps into the mortar for a reliable result.

  • Page 10: Flushing The System

    Misting System Assembly & Installation F. Flushing The System Perhaps the most important part of the installation process is to properly flush the system. Remove ALL JETS and then connect the water and run for 4 or 5 minutes. This will ensure that all dirt and pipe swarf is flushed from the system.

  • Page 11: Maintenance Of Your Misting System

    Maintenance 5. Maintenance Of Your Misting System Please use these hints to keep your misting system operational and prevent unnecessary clogging of the misting jets: - 1) Drain Water from your System When your system is not in use, drain all water from your system. If you use an automatic draining valve, this job will happen automatically.

  • Page 12: Warranty

    Should you have any questions about this product or its operation please telephone our customer service helpline on 1300 716 188. Holman offer a 2 year replacement warranty from the original date of purchase. To claim warranty the product must be returned with a copy of the original receipt.
