- Page 1 User Guide...
- Page 2 PRODUCT CODE: CO6002 2 of 28...
-
Page 3: Table Of Contents
Contents Overview Main Components Function and Resetting Specifications Precautions and Use Setup Battery Installation Setup Process Set Clock Starts Start Time Run Time Set Day Zone Conflicting Starts Removal of All Zones from a Start Operation Automatic Watering Manual Watering No/Suspended Watering Mode Maintenance Cleaning... -
Page 4: Overview

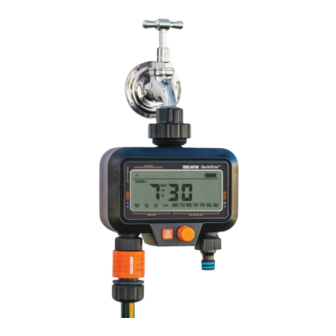

Overview Main Components 1. ZONE 1 outlet 5. Display 2. ZONE 2 outlet 6. ON/OFF 7. MENU DIAL ® Each outlet is 20mm BSP with 12mm snap‑on 8. Battery compartment: connection included ® Requires 2× AA alkaline 3. 20/25mm BSP tap nut inlet batteries only 4. -
Page 5: Function And Resetting
Overview (continued) Function and Resetting ® Inactivity on your QuikDial Tap Timer controls for 10 seconds will return to the default system mode displaying the current time Á Removing the AA batteries will reset all clock and schedule settings ® To reset your QuikDial, remove the batteries for 2 minutes which will return the timer to factory default Á... -
Page 6: Precautions And Use
Overview (continued) Precautions and Use Á Your QuikDial is designed to hang vertically from a tap Á Do not use in place of irrigation solenoids Á Use with caution on short run drip systems, these can keep valves open when they need to close. -
Page 7: Setup
Battery Installation 1. Install 2× 1.5v AA ® After installing the batteries, alkaline batteries into your the display will flash QuikDial Tap Timer, as ZONE I, then ZONE II indicated in the battery as part of start up compartment [a] ® Once the start‑up process... -
Page 8: Setup Process
Setup (continued) Setup Process ® Your QuikDial has a simple ® ZONES will water and intuitive setup system sequentially starting from the set START TIME quickly completed in 5 steps ® 1 or 2 ZONES can be included in each START, for... - Page 9 Setup (continued) Setup Process ® Here is a quick overview to see how all these settings combine into an automated watering schedule for your garden Z O N E Start Time 07:00 Run Time 10min Mo Tu We Th Fr Sa Su Set Day ZONE I will start at 7:00 am, for a duration of 10 minutes, on Mondays and Tuesdays.
-
Page 10: Set Clock
Setup (continued) Set Clock 4. Press the MENU DIAL and ® The current time and day the MINUTES will flash [c] of the week is needed as the reference point for your program to work ® The CLOCK is in 24hr time (12:00 is midday and 00:00 is midnight) 1. -
Page 11: Starts
Setup (continued) Starts ® Your QuikDial has up to 4 START TIMES available, these can be used for 1 or both ZONES as needed ® There is a default time set for each START. To see these, turn the MENU DIAL clockwise (right) ®... - Page 12 Setup (continued) Turn a Start On/Off ® Begin by turning the MENU DIAL clockwise (right) until you see the START NUMBER (1, 2, 3 or 4) you want to select ® If the START is OFF and you need to turn it ON: 1.
- Page 13 Setup (continued) Turn a Start On/Off ® If the START is ON and you need to turn it OFF: 1. Select the START NUMBER 4. Press the MENU DIAL to by turning the MENU DIAL confirm the start as OFF 2.
-
Page 14: Start Time
® START TIME is the time of 3. Press the MENU DIAL day your watering begins once, the menu box around START TIME will flash [c] ® Your QuikDial waters each ZONE sequentially starting from this time. ZONES are added at a later step— refer to... -
Page 15: Run Time
Setup (continued) Start Time 6. Press the MENU DIAL 7. Turn the MENU DIAL left or again and the MINUTES right to set the MINUTES will now flash [e] 8. Once the MINUTES are correct, press the MENU DIAL again to move on to RUN TIME Run Time ®... -
Page 16: Set Day
Setup (continued) Run Time Set Day 3. Turn the MENU DIAL ® Your QuikDial allows clockwise (right), and the you to select the days menu box will now flash of the week to water around RUN TIME [b] Á There is no interval watering option ®... - Page 17 Setup (continued) Set Day 4. Turn the MENU DIAL 6. Turn the MENU DIAL clockwise (right), until a box clockwise (right) to is flashing around SET DAY move to TU and lines are flashing below 7. Repeat for each day, the days of the week [b] pressing the MENU DIAL to remove days as needed...
-
Page 18: Zone
ZONE or select all ZONES is flashing around ZONE [a] via the ZONE menu ® When ZONES are set to water within the same START your QuikDial will water each zone sequentially starting from the set START TIME 5. Press the MENU DIAL to confirm you’d like to... - Page 19 Setup (continued) Zone 6. ZONE I will flash [b] 7. Turn the MENU DIAL clockwise (right) and ZONE II [c] will flash ® Pressing the MENU DIAL once when the ZONE is flashing will allow you ® As ZONE II is not to select or delete the ZONE from the START programmed to water during...
-
Page 20: Conflicting Starts
Setup (continued) Conflicting Starts Á If more than one START ® Use the 4 available has been set with the STARTS to spread out your same START TIME and watering needs—avoiding SET DAYS, the timer will conflicting STARTS ignore the duplication. Only the first start will be run in these cases Removal of All Zones from a Start... -
Page 21: Operation
QuikDial controls, the set watering schedule will be active in the background as per your confirmed settings ® In this state, your QuikDial display will cycle between ® Additional zones the CLOCK [a] and the scheduled for watering START TIME of your next... -
Page 22: Manual Watering
Operation (continued) Manual Watering ® By default, the pre‑set ® During watering, the manual RUN TIME is 5 min sprinkler animation will be active [c] and the selected 1. For manual (instant) ZONE [d] will flash watering, press ON/OFF 2. ZONE I will flash [a], turn the MENU DIAL to select a ZONE 5. -
Page 23: No/Suspended Watering Mode
ON/OFF and to adjust it—press ON/OFF to stop your QuikDial will return watering and restart the to the default display MANUAL WATERING process from step 1 No/Suspended Watering Mode 1. -
Page 24: Maintenance
Maintenance Cleaning ® Check and clean your filter washer at least twice a year ® Debris can be removed with a soft toothbrush and suitable cleaner where needed (white vinegar/CLR) ® Damaged filters/washers should be replaced ® In hard water areas, further cleaning may be required after periods of no use—as minerals will set in the body of the timer 1. -
Page 25: Cold Weather
Maintenance (continued) Cold Weather ® Your QuikDial should be Á Keep your QuikDial out of freezing conditions removed from the tap and as this can damage stored away during winter internal components Batteries Á Please only use quality ® Remove batteries from... -
Page 26: Troubleshooting
Troubleshooting Incorrect Decal ® If you have received a QuikDial with the batch number 23/36, it is likely this will have the incorrect face decal due to a printing error. This will not affect the functionality of the QuikDial, however may cause some confusion in the initial set up process ®... - Page 27 There may be an airlock—remove your timer from the tap and give it a shake to displace the airlock The Holman website has a host of additional information on features. Head to support.holmanindustries.com.au for more tips, tricks and support content.
- Page 28 Head to ort.holmanindustries.com.au for more tips, tricks and support content. still need help, feel free to email our friendly Customer Service team at Copyright © 2023 Holman Industries ort@holmanindustries.com.au or call at 08 9416...
