Holman MK21015 Instruction Manual

20 metre deluxe misting kit
Hide thumbs Also See for MK21015:

Advertisement

Quick Links

Instruction Manual
Product Code: MK21015
Note: Flush Misting System thoroughly before
attaching misting nozzles to prevent blockages.
Scan the QR Code on the right to see more information on
the Misting System - including a product guide video.
Misting Kit
20 Metre Deluxe

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MK21015 and is the answer not in the manual?

Questions and answers

Summary of Contents for Holman MK21015

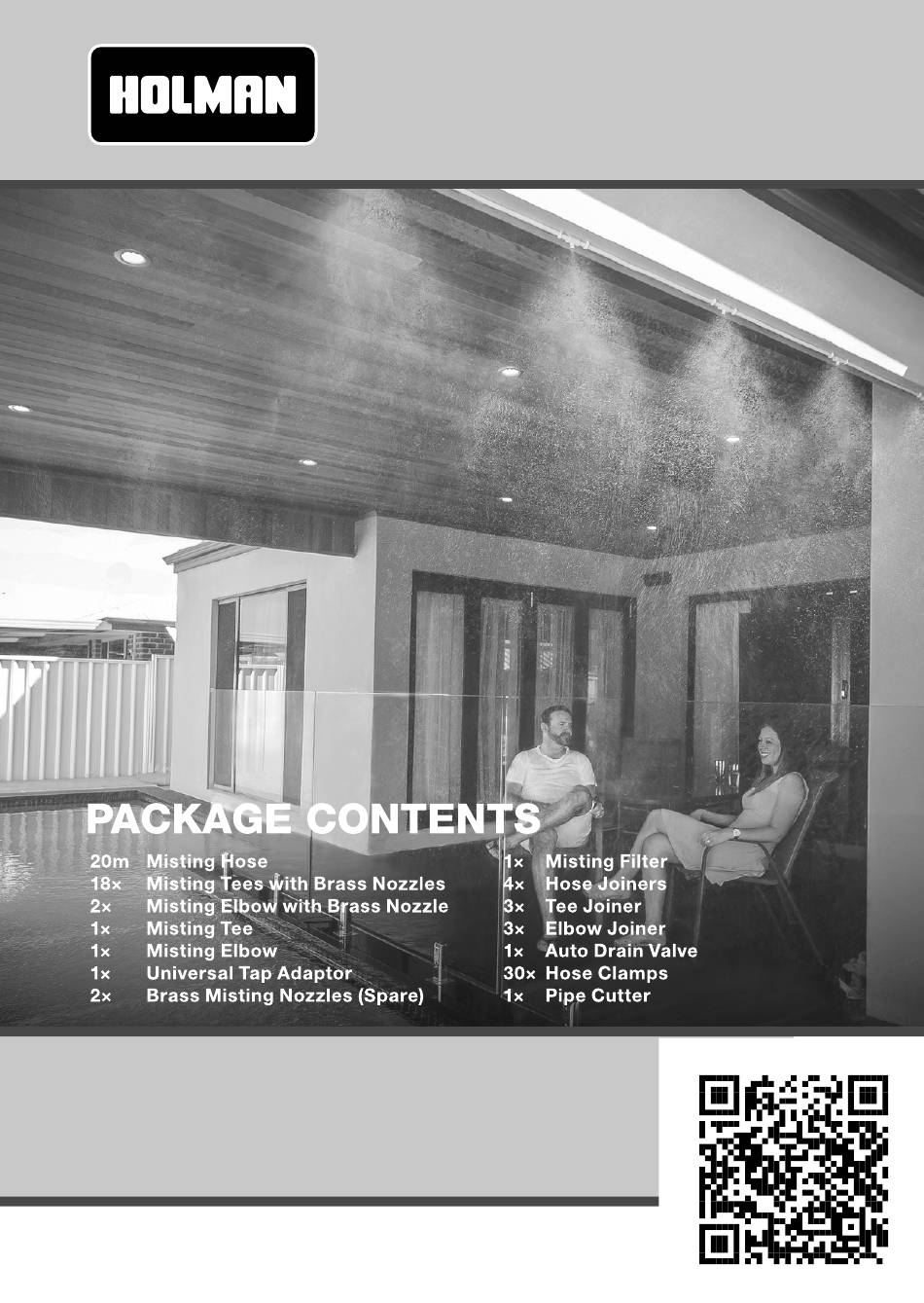

  • Page 1 Misting Kit 20 Metre Deluxe Instruction Manual Product Code: MK21015 Note: Flush Misting System thoroughly before attaching misting nozzles to prevent blockages. Scan the QR Code on the right to see more information on the Misting System - including a product guide video.
  • Page 2: Table Of Contents

    Table of Contents 1. Outdoor Cooling Misting System....p1 2. The Way It Works........p1 3. Glossary............p2 4. Misting System Assembly & Installation...p3 A. Plan Your Misting Installation....p3 B. Water Supply..........p3 C. Positioning Misting Jets......p4 D. Installing The Fittings.......p5 E. Installing The Misting System....p6-7 F.
  • Page 3: Outdoor Cooling Misting System

    Generally, you will not want to run the misting systems continuously. If you do, the general environment may become damp and unpleasant. The simple way to solve this problem is to use a Holman Misting Timer. This timer can be programmed to suit the environmental conditions of the day.
  • Page 4: Glossary

    Glossary...
  • Page 5: Misting System Assembly & Installation

    (See page 6 for Garden Hose connection) HINT: If you want to easily maintain the use of the garden tap for other uses, install a Holman 2 way or 4 way manifold and fit the misting system to one outlet.
  • Page 6: Positioning Misting Jets

    • Try and create a curtain of mist at least on two sides of the area being cooled. • Install a Holman misting timer. This will allow you to regulate the amount of water entering a space by adjusting the “ON” times and “OFF” times of the timer. You would have more “ON”...
  • Page 7: Installing The Fittings

    To ensure a good joint, the tube must be cut “square” and “burr free”. The best way to achieve this result is to use the Holman misting tube cutter. This ensures a clean square cut. It is also very quick to use.
  • Page 8: Installing The Misting System

    Curtain of Mist for most effective coverage. Auto Drain Valve (Illustration shows 5 Misting Tees and 1 Misting Elbow being used as an example of a basic layout. Further products to extend your misting system are available at your local HOLMAN stockist). Misting Filter...
  • Page 9 (Misting Jet) (Hose Clamp) (Hose Clamp) The Holman hose clamps use a very strong masonry nail that should not bend when you hammer it into timber or masonry. HINT 1: Run pipe-work along mortar joints in brickwork. Hammer the hose clamps into the brickwork for a reliable result.
  • Page 10: Flushing The System

    Misting System Assembly & Installation F. Flushing The System Perhaps the most important part of the installation process is to properly flush the system. Remove ALL JETS and then connect the water and run for 4 or 5 minutes. This will ensure that all dirt and pipe swarf is flushed from the system.
  • Page 11: Maintenance Of Your Misting System

    Maintenance Do not remove the end of Auto Drain Valve unless blocked. There is a very small ball inside and if opened the ball will fall out. 5. Maintenance Of Your Misting System Please use these hints to keep your misting system operational and prevent unnecessary clogging of the misting jets: - 1) Drain Water from your System When your system is not in use, drain all water from your system.
