Summary of Contents for Holman CO1605

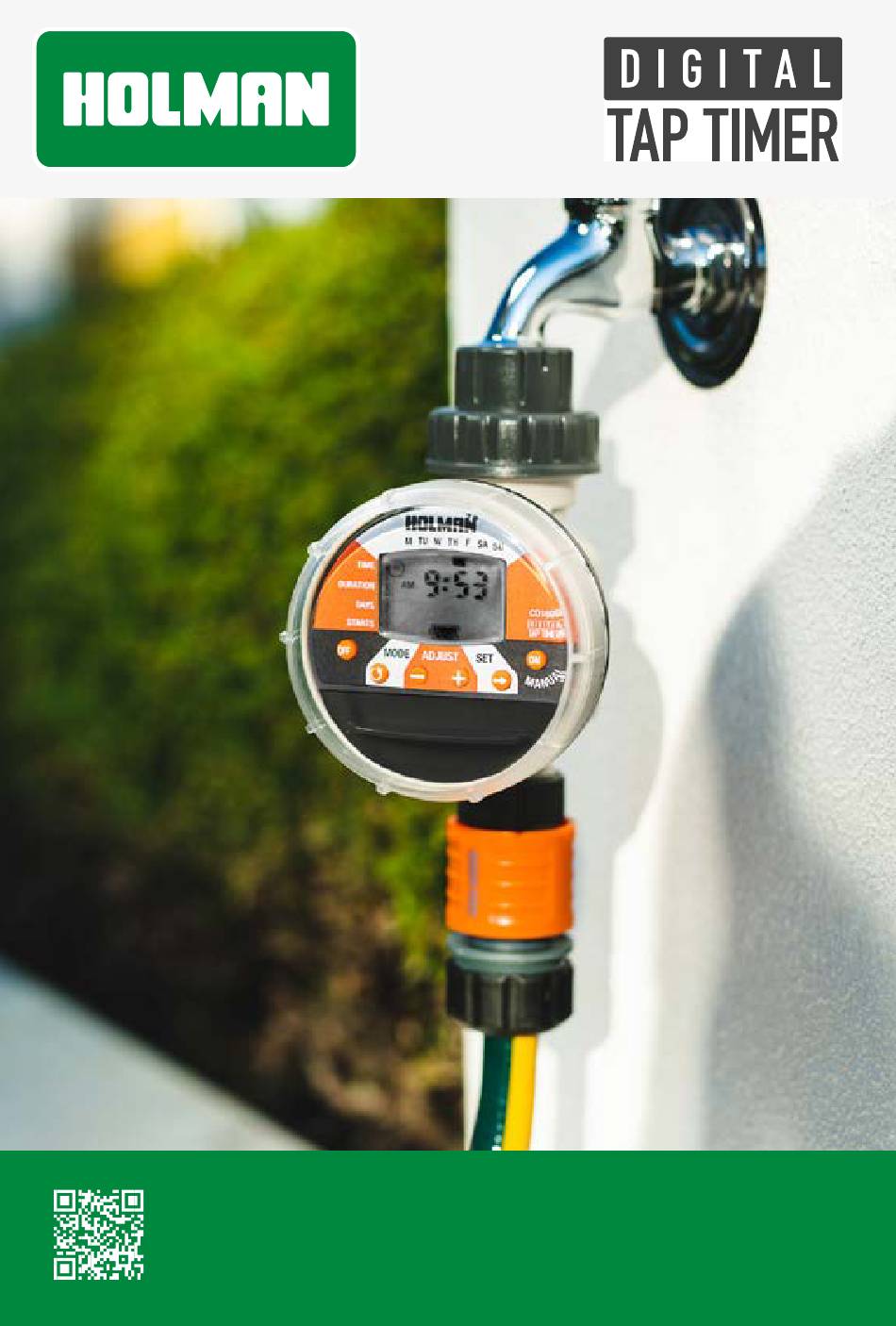

  • Page 1 User Guide DOWNLOAD THE LATEST MANUAL!
  • Page 2 Please read these instructions in full before proceeding with setup Customer Service Copyright © Holman Industries 2024 support@holmanindustries.com.au www.holmanindustries.com.au Reliance Worldwide Corporation (Aust.) Pty. Ltd. 27-28 Chapman Place Eagle Farm, QLD, Australia 4009 PRODUCT CODE: CO1605 2 of 16...
  • Page 3: Table Of Contents

    Contents Overview Specifications Setup Battery Installation Setting the Current Time Setting the Duration Setting the Watering Days Setting the Start Times Operation Manual Watering Suspend Watering Schedule Maintenance Cold Weather Extending Battery Life Clean Filter Troubleshooting 3 of 16...
  • Page 4: Overview

    Overview Specifications WATERING SCHEDULING Up to 4 start times per day WATERING DURATION MIN 1 min, MAX 12hrs 59min WATER PRESSURE MIN 100kPa, MAX 600kPa WORKING TEMPERATURE MIN 3ºC POWER SOURCE 1× 9V alkaline battery (not included) INLET/OUTLET 25/20mm BSP / 12mm Flow Rate WATER PRESSURE (kPa) FLOW RATE (L/min)

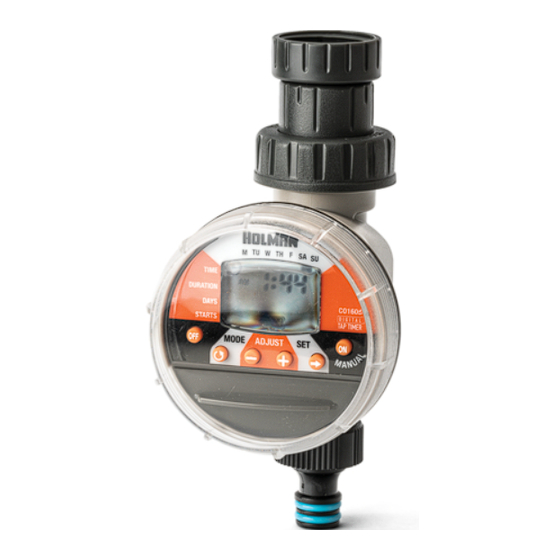

  • Page 5 Overview (continued) Automatic Digital Tap Timer 1. Universal Tap Adaptor 6. Battery Compartment 2. Tap Connection 7. Clear Screw-on Cover 3. Union Nut 8. Snap-on Hose Connection warning 1× 9V alkaline battery 4. LCD Display required but not included 5. Control Buttons 5 of 16...
  • Page 6: Setup

    Setup Battery Installation 1. Hold the Tap Timer with the battery compartment facing you 2. Remove the battery compartment tray [a] 3. Connect a 9V alkaline battery to the battery connector 4. Insert the connected battery and push in the battery compartment tray Ý...
  • Page 7: Setting The Current Time

    Setup (continued) Setting the Current Time 1. Press ARROW-CI until clock is displayed in M Tu W Th F Sa Su Time the top left corner next to TIME. Duration Days This means you are in TIME mode Starts Mode Adjust 2.
  • Page 8: Setting The Duration

    Setup (continued) Setting the Duration Ý DURATION is the length of time M Tu W Th F Sa Su Time you want the water to run for Duration Days Starts 1. Press until Mode Adjust displayed on the left next to Manual DURATION [a].
  • Page 9: Setting The Watering Days

    Setup (continued) Setting the Watering Days Ý DAYS is where you select what M Tu W Th F Sa Su Time day(s) you want to water on Duration Days Starts 1. Press until calendar is displayed on Mode Adjust the left next to DAYS [a]. This Manual means your are in DAYS mode 2.
  • Page 10: Setting The Start Times

    Setup (continued) Setting the Start Times Ý START is the time of day you want your watering to begin Ý You can schedule up to 4 start times per day M Tu W Th F Sa Su Time 1. Press until is displayed Duration...
  • Page 11: Operation

    Operation Manual Watering Ý MANUAL allows you to manually M Tu W Th F Sa Su Time turn on your tap timer and Duration Days set a watering duration Starts Mode Adjust Ý This will not effect your Manual automatic schedule 1.
  • Page 12: Maintenance

    Maintenance Cold Weather Ý Do not use with freezing cold water Ý We do not recommend the use of your Tap Timer over the winter period. It will not handle low temperatures, below 3 degrees Celsius may damage the timer Ý...
  • Page 13: Troubleshooting

    Troubleshooting Question Answer Why is my tap timer making a If you are running a low pressure ☑ funny noise and not opening? drip system, you need to install an Air Release Valve (102646) at the highest point of your system and above your drippers This breaks the air in the drip line ☑...
  • Page 14 You cannot enter a start time ☑ for each day individually The Holman website has a host of additional information on features. Head to support.holmanindustries.com.au for more tips, tricks and support content. If you still need help, feel free to email our friendly Customer Service team at 14 of 16 support@holmanindustries.com.au.
  • Page 15 For more information, please contact us at support@holmanindustries.com.au Pressure Reduce the pressure from your tap with a Holman Pressure Reducer. This product is Reducer ideal for reducing the water pressure to 200kPa for your poly pipe and drip systems VPR200 that water garden beds or vertical gardens.
  • Page 16 We recommend registering your new product on our website. This will ensure we have a copy of your purchase and activate an extended warranty. Keep up to date to with relevant product information and special offers available through our newsletter. www.holmanindustries.com.au/product-registration/ Copyright © 2024 Holman Industries...
