Summary of Contents for Furniture of America CM-AC6260

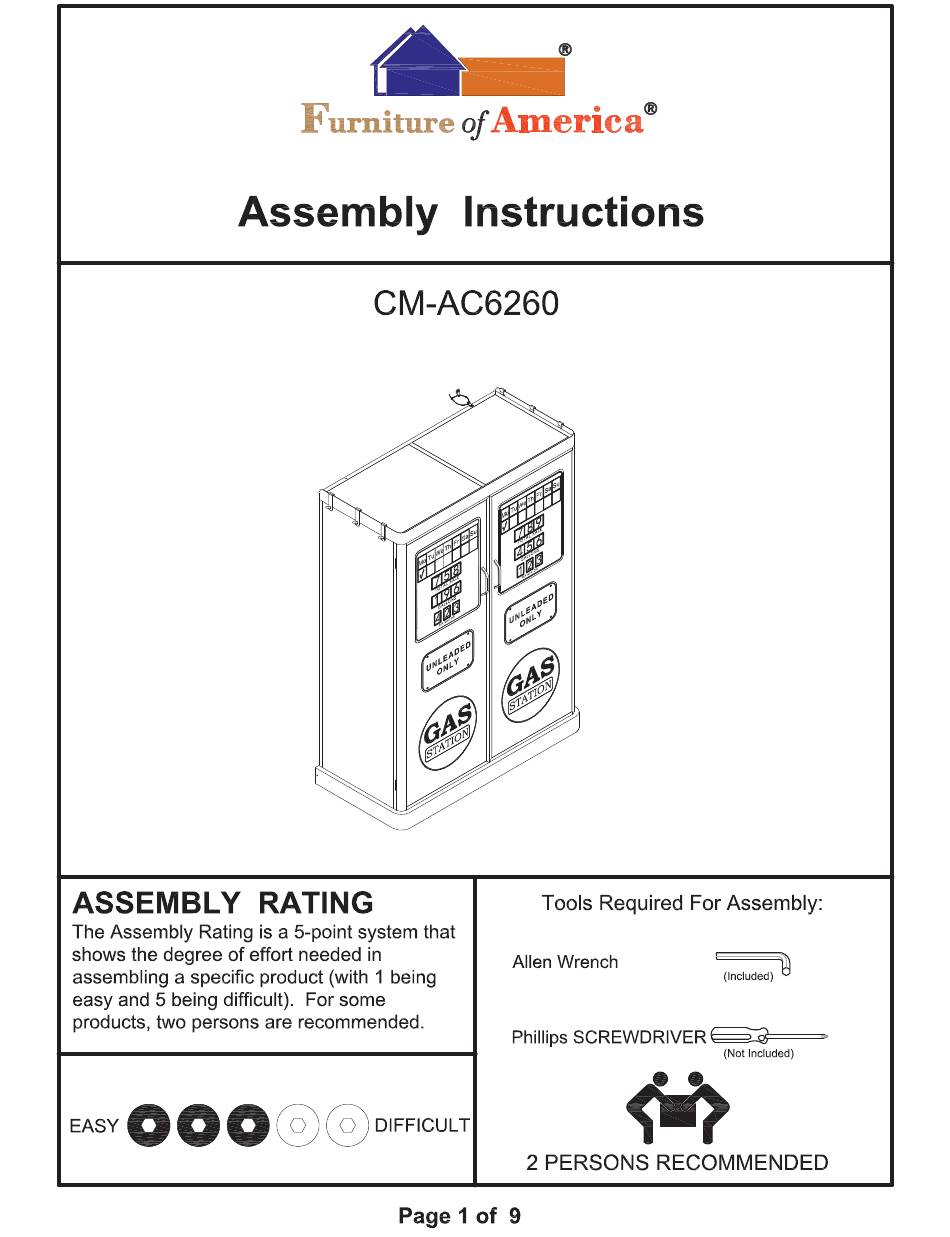

- Page 1 Rev.15-12-16...
- Page 4 Handle...
- Page 5 2. Align the left side panel (#3), the middle panel (#4), and right side panel (#5) to the pre-drilled holes shown in the image. Insert 1. Carefully place the rear panel bolts (#A) into each (#6) onto a protected surface. panel and secure using a Phillips screwdriver.
- Page 6 1. Align the front door (#7) to the pre- drilled holes along the sides of the right, left, and middle panel. 2. Insert 4 bolts (#A) into each panel and secure using the Phillips screwdriver. 2. Insert 2 bolts (#C) into top holes on the rear panel. 1.
- Page 7 2. Insert a total of 4 bolts (#A) from within into the pre-drilled holes on each side of the base and secure using the Phillips screwdriver. 1. Align the base (#2) to the bottom. 3. Insert 2 bolts (#C) into the pre- drilled holes along the outside of the base to connect with the side panels.
- Page 8 THE PARTS ARE FOR 2sets...
- Page 9 1. Determine exactly where you want to drill a hole and mark the spot(s). Be sure that you hold the drill perpendicular to the wall so that the anchor will sit parallel. You should drill a hole that is approximately the same size as the anchor bolt (#I) itself.
