Summary of Contents for Furniture of America Tarragona CM-AC6165

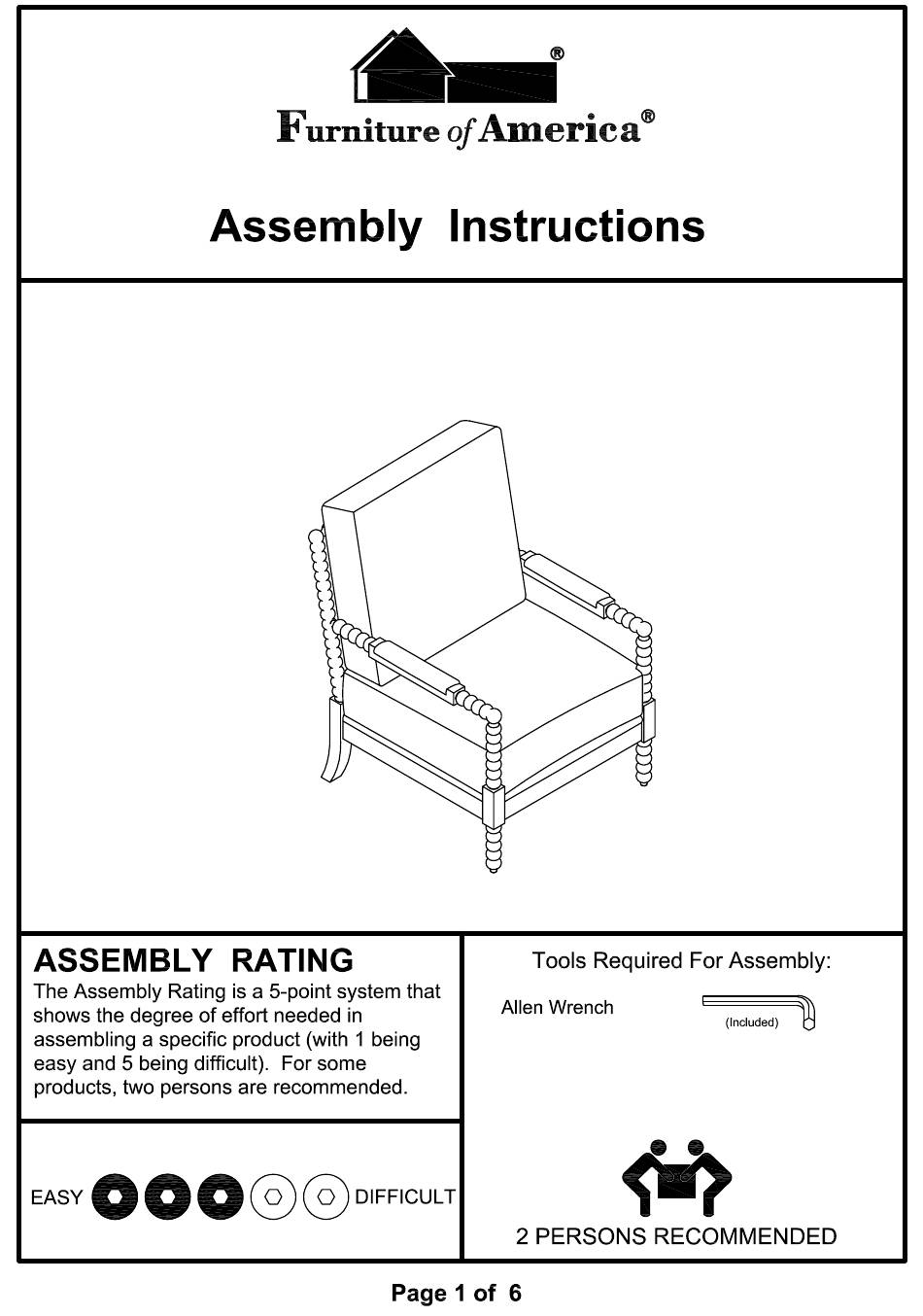

- Page 1 For more information contact our team: service.ec@foagroup.com CM-AC6165 Rev: 17-12-09...
- Page 4 1) Insert wood dowels (#K) to the holes of the seat frame (#3), then align the seat frame (#3) to the holes of the chair back (#1). 3) Prepare 4 bolts assembly by inserting lock washer (#E), then flat washer (#F) onto bolts (#B).
- Page 5 Prepare 2 bolts assembly by inserting lock washer (#E), then flat washer (#F) onto bolts (#C). Secure holes of left arm (#4) to seat frame (#3) with bolts (#C). Align right arm (#5) to the holes of the chair back (#1) and seat frame (#3). Secure right arm (#5) to chair back with bolts (#H) that contains washer (#I).
- Page 6 Assembly Completed...
