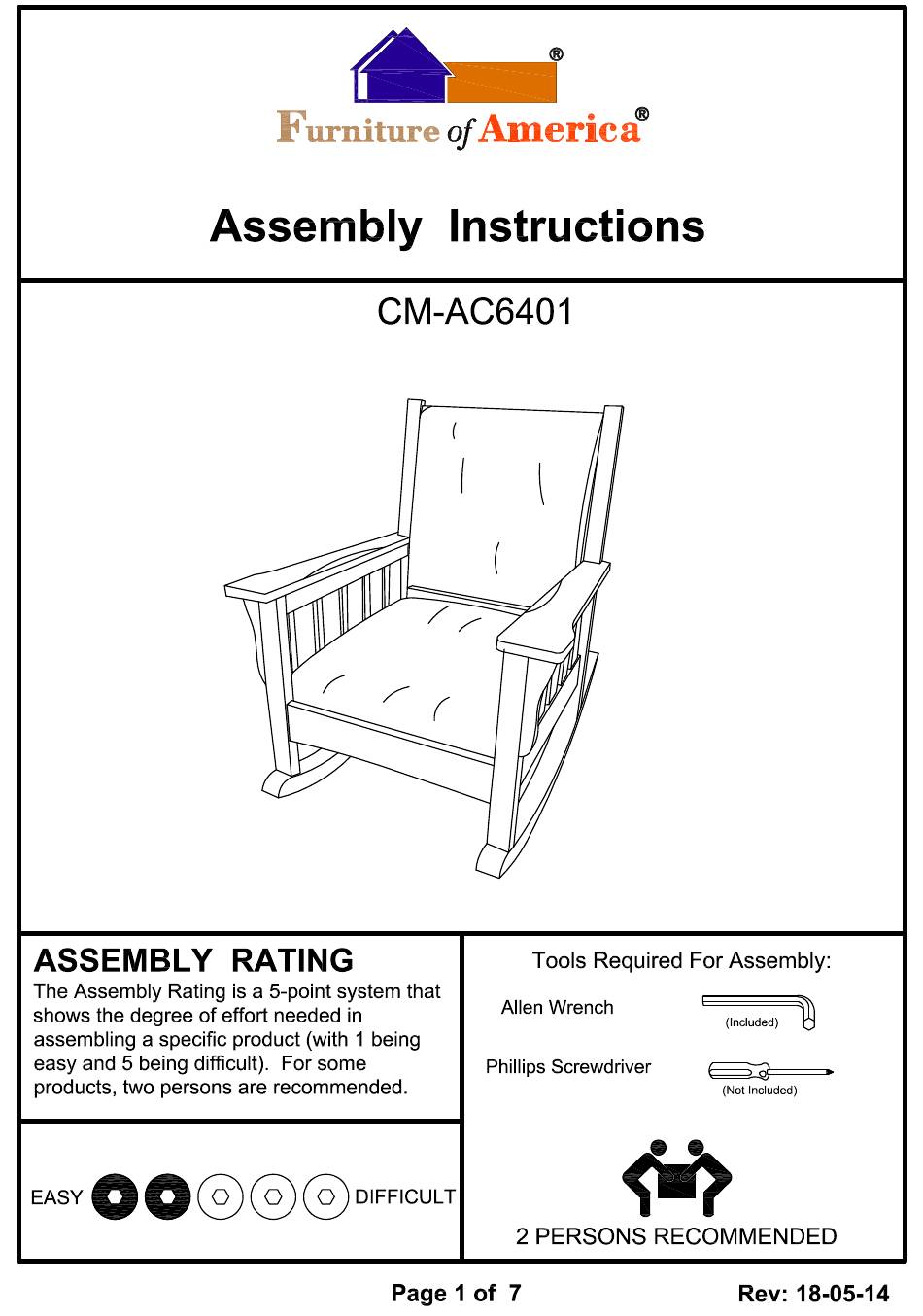

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 5 Align front rail (#4) to the left arm (#2), then secure by using bolts (#A) with washers (#F). Align right arm (#3) to the front rail (#4), then secure by using bolts (#A) with washers (#F).
- Page 6 Align chair back (#1) to the arms (#2,3). Secure the upper 2 upper holes by using bolts (#A) with washers (#F,E). Secure the lower 4 bolts by using bolts (#A) with washers (#F). Align rocker runners (#5) to the holes of the arms (#2,3), then secure by using bolts (#B) with washers (#C,D).
- Page 7 Place back cushion (#7) to rocking chair. Place seat cushion (#6) onto rocking chair, then secure by using screws (#J). There are no pre- drilled holes on seat cushion (#6). Screw (#J) directly into wooden frame of seat cushion (#6). ASSEMBLY COMPLETED...
