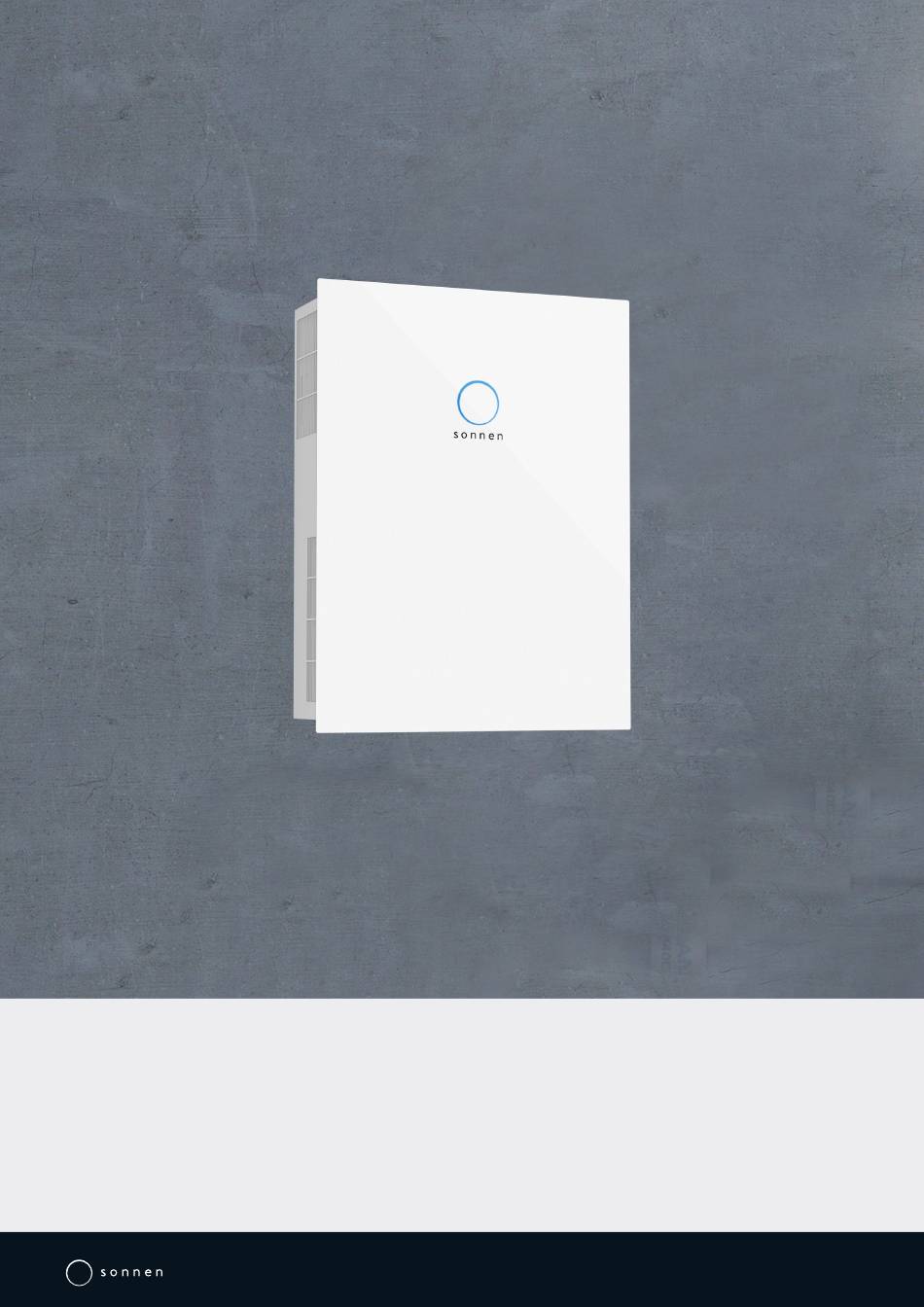

- Page 1 Operating instructions | for Operators sonnenBatterie hybrid 9.53 KD-564 • Part no. 1001821 • Version 03 info@sonnen.com.au • sonnen.com.au...
- Page 2 Document Document number / Version 564 / 03 Part number / Revision 1001821 / 02 Valid for AU, NZ Publication date 11/08/2022 The latest version can be accessed at my.sonnen.de (in the Downloads section) 36028797279441931 Operating instructions sonnenBatterie hybrid 9.53...
-
Page 3: Table Of Contents
3.4 Function .............................. 11 3.4.1 Basic principle.......................... 11 3.4.2 Feed-in limit .......................... 12 3.5 Function of the sonnen Eclipse ...................... 13 4 Switching on the storage system...................... 14 4.1 Switching on the PV disconnector SPV.................. 14 4.2 Switching on the fuse switch F1....................... 14 4.3 Switching on the grid voltage...................... -
Page 4: Information About This Document
1 | Information about this document 1 Information about this document This document describes the operation of the sonnenBatterie hybrid 9.53. „ Make sure you read this entire document carefully. „ Keep this document for reference purposes. 1.1 Target group of this document This document is intended for the storage system operator. -
Page 5: Safety
2 Safety 2.1 Intended Use The sonnenBatterie hybrid 9.53 is a battery storage system which can be used to store electrical energy. Improper use of this system poses a risk of death or injury to the user or third parties as well as damage to the product and other items of value. The following points must therefore be observed in order to comply with the intended use of the prouct: •... -
Page 6: Voltage In And On The Storage System
„ Do not deep-discharge the battery modules. In the event that module contents are released: „ Do not enter the room under any circumstance. „ Avoid contact with the escaping electrolyte. „ Contact the fire services. 6 / 28 Operating instructions sonnenBatterie hybrid 9.53... -
Page 7: Conduct In Case Of A Fire
Safety | 2 2.6 Conduct in case of a fire Fire may occur with electrical equipment despite its careful design. Likewise, a fire in the vicinity of the equipment can cause the storage system to catch fire, releasing the con- tents of the battery modules. -
Page 8: Product Description
6.75 kWh 9.0 kWh 11.25 kWh 13.5 kWh Nominal voltage 48 V Battery input voltage 44 – 54 V Any oversizing of the PV input may cause a thermal derating of the inverter. 8 / 28 Operating instructions sonnenBatterie hybrid 9.53... - Page 9 Product description | 3 Current (Max. continous) 75 A Short-circuit current (I 90 A Max. efficiency (battery) 98 % Min. number of battery modules Max. number of battery modules Dimensions / weight without extension cabinet (from 2.5 up to 5 kWh) Dimensions (H/W/D) in cm 88/67/23 Weight in kg...
-
Page 10: Type Plate
WEEE mark. The product must not be disposed of in household waste; dispose of it through environmentally friendly collection centres. Observe the documentation. The documentation contains safety information. RCM mark. The product meets the requirements of the applicable regulations. 10 / 28 Operating instructions sonnenBatterie hybrid 9.53... -
Page 11: Function
Product description | 3 3.4 Function 3.4.1 Basic principle Illustration 1: sonnenBatterie function PV system Measurement of consumption Storage system Public electricity grid Consumers in building (e. g. washing machine, hob, lamps, refrigerator, etc.) The storage system (2) is connected to the PV system (1) and the public electricity grid (5). Furthermore the current consumption of the consumers in the building (3) is constantly measured (4). -
Page 12: Feed-In Limit
In order for this to occur, the inverter must support power reduction using a switch contact or an external solution (e.g. a solar datalogger). Configur- ation and connection are carried out by the electrician. 12 / 28 Operating instructions sonnenBatterie hybrid 9.53... -
Page 13: Function Of The Sonnen Eclipse
Product description | 3 3.5 Function of the sonnen Eclipse The sonnen Eclipse (light ring in the sonnen logo on the front of the storage system) indic- ates the current status of the storage system when it is switched on. -
Page 14: Switching On The Storage System
The storage system then starts up and performs a self-test. Once the self-test is success- ful, the storage system is ready to operate. When the storage system is in normal operation, the sonnen Eclipse pulses white (see Function of the sonnen Eclipse [P. 13]). -
Page 15: Digital Sonnen World
Digital sonnen world | 5 5 Digital sonnen world By purchasing the storage system you receive access to sonnen digital products. To mon- itor the storage system and other sonnen products in real time and configure settings, you have several options: my.sonnen.de You can access the online portal at any time. -
Page 16: Using The Online Portal
The login window opens. „ Click on the corresponding button to register and create a sonnen account. After creating the sonnen account you can use this in future to log in and access all sonnen digital products. 5.1.2 Visualising measurement data A fundamental part of the online portal is the graphic display of the data from your storage system and of processes within your building. -
Page 17: Overview Of Your Sonnen Products
5.1.3 Overview of your sonnen products You can find an overview of the current status of your sonnenBatterie and information on your existing sonnen accessories on the pages Overview, Details and Downloads. You can also find technical details and installation data as well documentation here. -
Page 18: Using The Web Interface
„ Enter the following address into an internet browser: https://find-my.sonnen-batterie.com The following window appears: 12345 123.456.78.99 „ Click on the blue LAN IP number. The login page appears. „ Log in as user with the following password: sonnenUser3552 18 / 28 Operating instructions sonnenBatterie hybrid 9.53... -
Page 19: Dashboard Page
The other information, such as the serial number and model designation of your storage system (each under General Information), may be necessary in the event of a fault, if you contact the electrician performing the installation or the sonnen service team, for ex- ample. -
Page 20: Settings Page
(Charge state to start CHP) and the upper limit at which the CHP is stopped (Charge state to stop CHP) are specified as percentages. „ Contact your installer before changes are made to the settings. 20 / 28 Operating instructions sonnenBatterie hybrid 9.53... -
Page 21: Maintenance
Maintenance | 6 6 Maintenance For fault-free, safe, reliable and long-lasting operation of the storage system, it is essential to carry out regular function checks and cleaning. The battery modules installed in the storage system do not require maintenance. 6.1 Checking function Maintenance interval Action to be taken „... -
Page 22: Decommissioning
„ Switch off fuse switch F1. „ Switch off the external PV disconnector switch. „ Switch off the grid voltage using the AC miniature circuit breaker. Illustration 4: Fuse switch F1 and PV discon- nector 22 / 28 Operating instructions sonnenBatterie hybrid 9.53... -
Page 23: Troubleshooting
„ Ensure that the network line for the stor- age system is connected to the home network router. „ Contact your installer or the sonnen ser- The sonnen Eclipse of the storage sys- The storage system has detected a tem illuminates red. -
Page 24: Uninstallation And Disposal
„ Dispose of the storage system and the batteries it contains in an environmentally friendly way through suitable collection systems. „ Contact sonnen GmbH to dispose of old bat- teries. Illustration 5: WEEE symbol 24 / 28 Operating instructions sonnenBatterie hybrid 9.53... - Page 28 GmbH Am Riedbach 1 D-87499 Wildpoldsried...
