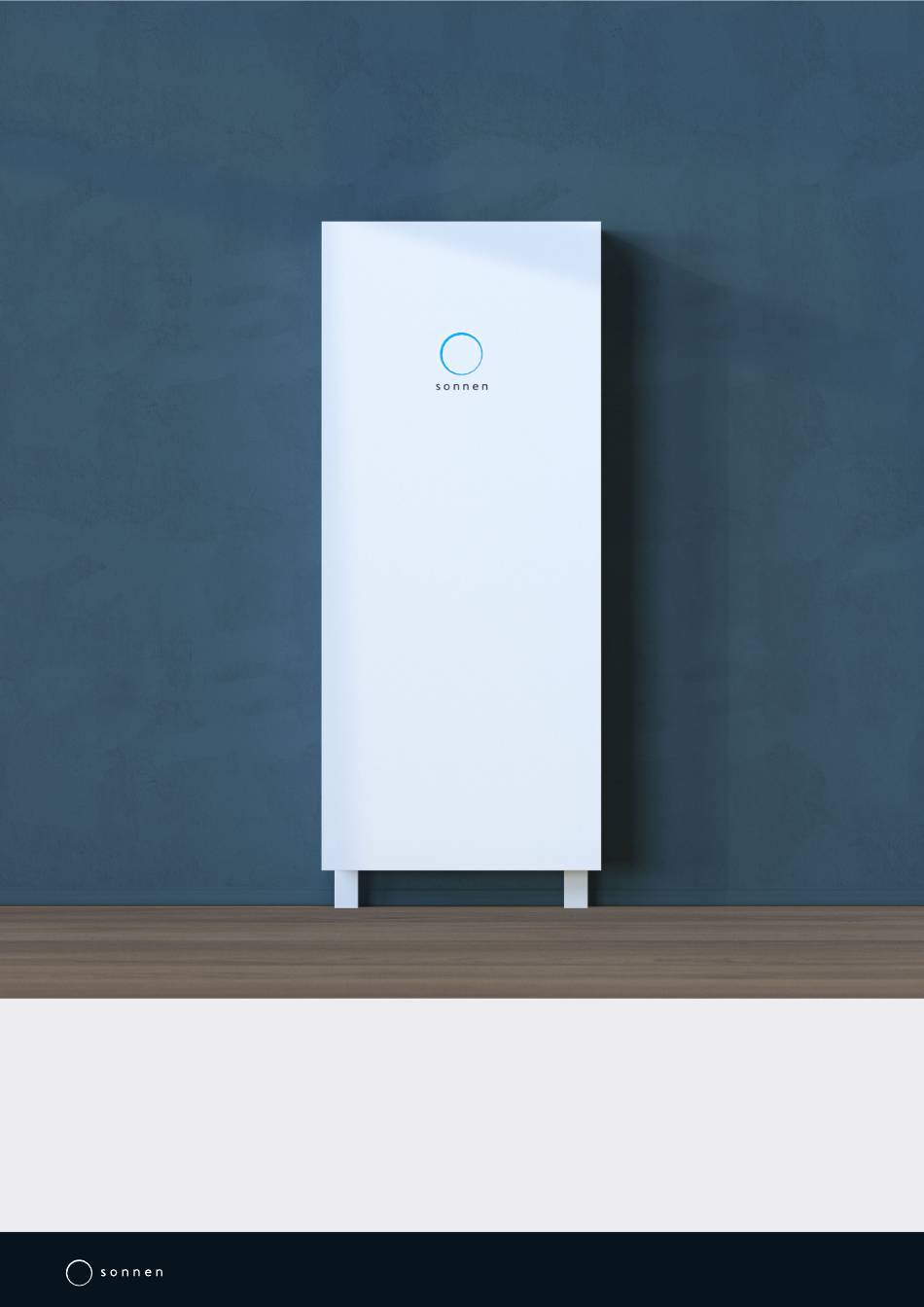

Installation instructions | for electricians
sonnenBatterie 10
with sonnenProtect 4000 (optional)
KD-557 • Part no. 1000241 • Version 02
info@sonnen.de •
sonnen.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the sonnenBatterie 10 and is the answer not in the manual?

Questions and answers

Related Manuals for Sonnen sonnenBatterie 10

Summary of Contents for Sonnen sonnenBatterie 10

  • Page 1 Installation instructions | for electricians sonnenBatterie 10 with sonnenProtect 4000 (optional) KD-557 • Part no. 1000241 • Version 02 info@sonnen.de • sonnen.de...
  • Page 2 „ Retain this document for reference purposes. Publisher sonnen GmbH Am Riedbach 1 D-87499 Wildpoldsried Service number +61 13 7666 Email info@sonnen.de Document Document number Part number 1000241 Version Valid for AU, NZ Publication date 18/09/2019 161236107 Installation instructions sonnenBatterie 10...

  • Page 3: Table Of Contents

    Table of contents Table of contents 1 Information about this document...................... 6 Target group of this document ...................... 6 Designations in this document ...................... 6 1.3 Explanation of symbols.........................  6 2 Safety.................................. 7 Proper use .............................. 7 2.2 Intended use of the sonnenProtect.................... 8 2.3 Qualified electricians..........................
  • Page 4 9.6.1 Installing the backup circuit(s)...................  68 9.6.2 Positioning components in the electrical distributor .......... 70 9.6.3 Wiring the sonnenProtect.................... 70 9.6.4 Attaching safety label to the distributor................  73 9.6.5 Attaching type label to storage system................ 73 Installation instructions sonnenBatterie 10...
  • Page 5 12 Decommissioning ............................ 82 12.1 Switching the storage system off.................... 82 12.2 Switching the storage system off to electrically isolate it............. 83 13 Troubleshooting.............................. 84 13.1 sonnenBatterie 10 .......................... 84 13.2 sonnenProtect 4000 (optional) ..................... 85 14 Uninstallation and disposal .........................  87 14.1 Uninstallation............................ 87 14.2 Disposal ..............................

  • Page 6: Information About This Document

    1 | Information about this document 1 Information about this document This document describes the installation of the sonnenBatterie 10. „ Read this document in its entirety. „ Keep this document in the vicinity of the sonnenBatterie. 1.1 Target group of this document This document is intended for licensed electricians.

  • Page 7: Safety

    2 Safety 2.1 Proper use The sonnenBatterie 10 is a battery storage system which can be used to store electrical en- ergy. Improper use poses a risk of death or injury to the user or third parties as well as dam- age to the product and other items of value.

  • Page 8: Intended Use Of The Sonnenprotect

    The sonnenProtect 4000 is an backup power unit designed to supplement the sonnenBatterie 10. The sonnenProtect - in conjunction with the appropriate storage sys- tem of the sonnen GmbH - serves to supply power in the event of a power failure. Any other use is considered improper use.

  • Page 9: Qualified Electricians

    • The electrician must be a person with a technical knowledge or sufficient experience to enable him/her to avoid dangers which electricity may create. • The electrician must has successfully completed the sonnen Australia installer training and have valid installer accreditation at the time of installation.

  • Page 10: Conduct In The Event Of A Fault Or Fire

    In the case of irritation of the skin, eyes or mucous membranes, consult a doctor. 3. Contact the sonnen service team (+61 13 7666). A fire may occur even with electrical devices that are designed with care. A nearby fire can also cause the storage system to ignite.

  • Page 11: Symbols On The Product

    Safety | 2 • The battery modules do not contain metallic lithium. 2.6 Symbols on the product Warning: electrical voltage. Wait five minutes after switching off (capacitor de- energising time). 5 min Warning: flammable materials. Warning: hazards due to batteries. Warning: product is heavy.

  • Page 12: Storage And Transport

    „ Only transport battery modules in packaging that meets applicable regula- tions. „ Never transport damaged battery modules. Lithium-ion batteries are hazardous goods. Therefore the following points must be ob- served when transporting the battery modules: 12 / 100 Installation instructions sonnenBatterie 10...

  • Page 13: Checking For Transport Damage

    Reporting transport damage Report transport damage immediately to the shipping company and to sonnen GmbH. „ Refuse to accept the delivery if the discovered defects are serious. „ Document the defect in a brief report and make the notation ‘Conditional acceptance’...

  • Page 14: Transport To The Installation Location

    2. Let the power module sit until it can be ensured that there is no more condensation on the surfaces. Depending on ambient conditions, this may take up to 24 hours. 3. Only then can the power module be installed and commissioned. 14 / 100 Installation instructions sonnenBatterie 10...

  • Page 15: Product Description

    Product description | 4 4 Product description 4.1 System components Overview of storage system Designation Function cover Cover for the storage system. mounting frame Mounting frame with integrated bracket for securing it to the wall and for compensating for uneven surfaces. power module Power module with integrated inverter and switch panel.
  • Page 16 Switch cover Silicone cap that can be removed for operating the storage sys- tem. USB socket Socket for connecting a USB device. ON/OFF switch Switch for switching the storage system on and off. 16 / 100 Installation instructions sonnenBatterie 10...

  • Page 17: Scope Of Delivery

    Product description | 4 4.2 Scope of delivery „ Check the following scope of delivery to ensure it is complete. Housing set cover Battery shelves Mounting frame Mounting frame Feet Supports Spacer plate Floor plate Installation equipment pack KD-557 | 1000241 | EN | 02 17 / 100...
  • Page 18 Dummy plug (Ø 50 mm) Cable entry plate (Ø 50 mm) Screws Battery screws and washers Crossbar for mounting frame sonnenProtect 4000 (optional) sonnenProtect incl. connection cables (each Cable entry plate (Ø 50) about 5 m) 18 / 100 Installation instructions sonnenBatterie 10...

  • Page 19: Type Plate

    11215, 11216, 11659 transformer up to 60 A. Available for maximum amperages up to 100 A, 400 A 200 A or 400 A. Additional sonnen products for extending storage system functionality sonnenCharger Charging station for electric vehicles for intelligent Different versions control by the storage system.

  • Page 20: Additional Parts And Tools Required

    • For establishing a connection to the storage system. • For running the commissioning assistant. Permanent marker • For filling out the type plate. Touch display for WM271 • If necessary: for configuring the power meter. power meter 20 / 100 Installation instructions sonnenBatterie 10...
  • Page 21 Product description | 4 *When mounting with extension cabinet. The list of tools refers to the materials contained in the scope of delivery for the storage system. Other individual tools are required based on the type of building installation and the additional parts chosen by the installer. Tool Designation Drill...

  • Page 22: Installing The Storage System

    5 | Installing the storage system 5 Installing the storage system • sonnen recommends installing the storage system with the accompanying feet so that while it is secured to the wall, part of the load is still supported by the feet.

  • Page 23: Planning Cable Entry

    • Easy opening of the storage system. • Sufficient space for installation and maintenance work. 5.1.2 Planning cable entry sonnen recommends routing the cables for the storage systems out of one opening in the wall dir- ectly behind the storage system. Alternatively, the cables can be routed from above and behind the storage system.

  • Page 24: Securing The Mounting Frame

    12 cm in three levels by selecting the highest or lowest setting. • The levelling elements from the installation equipment pack can be used to compensate for uneven points in the floor. 24 / 100 Installation instructions sonnenBatterie 10...

  • Page 25: Drilling The Holes

    Installing the storage system | 5 „ Install the levelling elements on the feet. „ Use two of the four slotted holes each to define the height of the storage system. „ Install the two feet using the screws, contact discs and nuts from the installation equip- ment pack.

  • Page 26: Sealing The Openings

    • The openings on the mounting frame must be sealed in order for the specified degree of protection for the storage system to be achieved. 26 / 100 Installation instructions sonnenBatterie 10...

  • Page 27: Completing The Mounting Frame

    Installing the storage system | 5 „ Seal the eight openings on the mounting frame shown in the figure using the dummy plugs (diameter: 32 mm) from the installation equipment pack. „ Seal the four openings in the top right section of the mounting frame using suitable dummy plugs (diameter: 27.8 mm) from the accessories set.
  • Page 28 „ Mount the two supports for the cover and the two battery shelves on the mounting frame as shown in the figure. Use the screws from the installation equipment pack for this purpose (2. - 5.). „ Tighten the screws with a torque of 6 Nm. 28 / 100 Installation instructions sonnenBatterie 10...

  • Page 29: Routing Cables Into The System

    Installing the storage system | 5 5.3 Routing cables into the system The specified degree of protection for the storage system and therefore touch protection and protection against the ingress of water and foreign bodies is only achieved when all openings on the storage system are sealed as described in the product documentation.

  • Page 30: Installing The Power Module

    (3.). „ Tighten the screws with a torque of 6 Nm. „ Hang the two mounting handles on the touch guard. The mounting handles remain in the storage system. 30 / 100 Installation instructions sonnenBatterie 10...

  • Page 31: Connecting The Storage System

    Connecting the storage system | 6 6 Connecting the storage system DANGER Electrical work on the storage system and electrical distributor Danger to life due to electrocution! „ Switch off the storage system to electrically isolate it. „ Disconnect the relevant electrical circuits. „...

  • Page 32: Electrical Connection Overview

    PV inverter together with a single-phase storage system in three-phase building mains. This means that the PV inverter and storage system must not be in- stalled on the same phase, if applicable. 32 / 100 Installation instructions sonnenBatterie 10...
  • Page 33 Connecting the storage system | 6 Installation with three-phase building mains 1 2 3 A1 A 13 14 15 16 13 14 15 16 1 2 3 Illustration 5: Circuit diagram overview – electrical connection in three-phase mains Consumers in building Power meter WM271 2 CT for consumption –...
  • Page 34 9 MCB Transformer interface for production (A1) Rated differential current of 300 mA, 100 mA or 30 mA. Type depending on the local conditions. Country-specific requirements must be ob- served. Protection of the line must be ensured. 34 / 100 Installation instructions sonnenBatterie 10...

  • Page 35: Placing Components In The Distributor

    Connecting the storage system | 6 6.2 Placing components in the distributor „ Mount the following components necessary for electrical connection of the storage system in the electrical distributor. Up to 23 cm of free space on one mounting rail is needed for the components. Miniature circuit breaker B20/B25 18 mm 72 mm...

  • Page 36: Installing The Power Meter

    (3~) mains wire as shown on the top part of the figure. Illustration 8: Connection to the voltage ter- minal strip at single-phase (1~) and three- phase (3~) mains document number: 401, item number: 22118 36 / 100 Installation instructions sonnenBatterie 10...
  • Page 37 Connecting the storage system | 6 • The clamp-on current transformers are clamped across the affected lines. The energy flow direc- tion of the clamp-on current transformer must be observed. The energy flow in the line must run from K to L. Illustration 9: left: correct energy flow direc- tion / right: incorrect energy flow direction •...

  • Page 38: Configuring The Power Meter

    Illustration 14: Touch display „ Press for 3 seconds. The CnGPASS screen appears. The power meter is now in programming mode. Illustration 15: Password entry screen „ Press once. The SYS screen appears. Illustration 16: CnGPASS screen 38 / 100 Installation instructions sonnenBatterie 10...
  • Page 39 Connecting the storage system | 6 „ Press once. Now it is possible to change the measuring mode. Illustration 17: SYS screen „ Press twice until the setting 3P | 2.3P ap- pears. Illustration 18: SYS screen - change of measur- ing mode „...

  • Page 40: Connecting The Modbus Cable

    If there is no jumper on the Modbus terminal strip between pins 6 and 8: „ Install a jumper between pins 6 and 8 on the Modbus terminal strip. Install the supplied screen clamp for this purpose as described in the provided instructions. 40 / 100 Installation instructions sonnenBatterie 10...

  • Page 41: Establishing An Internet Connection

    150 m. Having a constant internet connection is one of the conditions of the warranty, as sonnen can use this to access the storage system and monitor it for correct function and import software updates.

  • Page 42: Connecting A Demand Response Enabling Device (Dred)

    „ Select the mains cable based on the specification (see Additional parts and tools re- quired [P. 20]). „ Connect the individual wires (N, L, PE) of the mains cable as labelled on the central unit (AC). 42 / 100 Installation instructions sonnenBatterie 10...

  • Page 43: Installing The Battery Modules

    Connecting the storage system | 6 6.8 Installing the battery modules CAUTION Improper handling of battery modules Emission of toxic substances! „ Do not open battery modules. „ Do not damage the battery modules. • Correctly installed battery modules are completely controlled by the storage system. They cannot be switched on and off manually.
  • Page 44 „ Place one washer (plastic) each between the cap nuts for the battery screws and the battery module. „ Tighten the nuts for the battery screws with a torque of 6 Nm. The front battery module is battery module 3 and the back module is battery module 4. 44 / 100 Installation instructions sonnenBatterie 10...

  • Page 45: Connecting The Battery Modules

    Connecting the storage system | 6 6.8.2 Connecting the battery modules DANGER High battery voltage (> 200 V) Danger to life due to electrocution! When battery cables are connected, the central unit always carries the voltage of the battery modules, even if the storage system and mains voltage are switched off.
  • Page 46 „ Connect the remaining battery modules one after the other by connecting the BMS communication lines from socket X1 – OUT to socket X2 – IN of the next battery mod- ule in each case. 46 / 100 Installation instructions sonnenBatterie 10...
  • Page 47 Connecting the storage system | 6 Connecting the battery cables „ Direct the cables through the openings in the battery shelves and secure them to the mounting frame using cable clips. „ Connect a battery cable between battery module 1 and socket DC (BATT) – 1 on the central unit.

  • Page 48: Subsequent Extension Of Storage Capacity

    „ Attaching and earthing the cover [P. 76]. „ Switching the storage system on [P. 79]. „ Change the operating mode from module extension to the right operating mode (e.g. Automatic - Self-Consumption) in the commissioning assistant. 48 / 100 Installation instructions sonnenBatterie 10...

  • Page 49: Installing The Extension Cabinet (Optional)

    Installing the extension cabinet (optional) | 7 7 Installing the extension cabinet (optional) Damage to the battery modules when installing the extension cabinet after NOTICE initial commissioning If an extension cabinet is added to the storage system after the system has already been commissioned, the battery modules may be damaged.

  • Page 50: Installing The Mounting Frame

    „ Remove the reserve dummy plug (Ø 50) for the extension cabinet on the storage sys- tem. „ Use the cable entry points and grommets, if any, from the extension set to direct the cables into the storage system and the extension cabinet. 50 / 100 Installation instructions sonnenBatterie 10...

  • Page 51: Mounting The Battery Coupling

    Installing the extension cabinet (optional) | 7 4 5 6 Type Cable entry plate (Ø 50) Top: battery cable (four individual cables) Bottom: 2 × BMS communication lines Dummy plug (Ø 40) For sealing. Dummy plug (Ø 32) For sealing. Dummy plug (Ø 50) For sealing.

  • Page 52: Connecting The Extension Cabinet

    • The battery modules are connected to each other via the BMS communication lines as described in section Connecting the battery modules [P. 45]. 52 / 100 Installation instructions sonnenBatterie 10...

  • Page 53: Connecting The Battery Cables

    Installing the extension cabinet (optional) | 7 4 5-10 „ Connect the BMS communication lines as shown in the figure. The first battery module (in the storage system) is connected to the BMS – First (X2) socket on the central unit of the storage system. The last battery module (in the extension cabinet) is connected to the BMS – Last (X1) socket on the central unit of the storage sys- tem.

  • Page 54: Completing The Extension Cabinet Installation

    [P. 76] and Attaching the switch cover [P. 77]). Continuing the installation of the storage system „ When the extension cabinet is completely mounted and sealed, continue with the steps in section Checking the installation [P. 77]. 54 / 100 Installation instructions sonnenBatterie 10...

  • Page 55: Using Digital Inputs/Outputs (Optional)

    Using digital inputs/outputs (optional) | 8 8 Using digital inputs/outputs (optional) NOTICE Connection lines too long „ Ensure that the mains line and signal line connected to the storage system do not exceed a maximum length of 30 m. NOTICE Over voltage when switching off electromagnetic relays Damage to components! „...

  • Page 56: Connecting Digital Inputs/Outputs

    „ Only load the relays for PV reduction (PV red. 1 and PV red. 2) up to a max- imum voltage of 60 V (SELV) and a maximum amperage of 550 mA. When flexible single-conductor wires without end ferrules are used, conductor cross-sections of up to 1.5 mm² are possible. 56 / 100 Installation instructions sonnenBatterie 10...
  • Page 57 Using digital inputs/outputs (optional) | 8 Using the PV reduction digital outputs - PV reduction 1 and 2 - is a good idea if the feed-in power of the PV system must not exceed a fixed value (feed-in limit). The PV reduction digital outputs can be used to automatically control the output power of the PV inverter so that the feed-in power does not exceed the required value in a 10- minute average interval.
  • Page 58 The feed-in of the PV system is limited to 50% of the rated power. The following values need to be entered in the commissioning assistant. Level 1 60% (50% plus 10%) Level 2 35% (50% minus 15%) Level 3 58 / 100 Installation instructions sonnenBatterie 10...

  • Page 59: Using Electrical Consumers For Self-Consumption Optimisation

    Using digital inputs/outputs (optional) | 8 8.2.2 Using electrical consumers for self-consumption optimisation When digital output (DO) Self-consumption switch is used, the controls of the storage sys- tem activate an external electrical consumer in certain circumstances, which holds the ex- isting surplus of electricity.

  • Page 60: Using Additional External Electrical Generators

    CHP. The prerequisite for this is that the CHP unit must be available via a suitable interface (2) for activation/ deactivation. 1 CHP 2 Contact for activating CHP unit K2 External relay 60 / 100 Installation instructions sonnenBatterie 10...

  • Page 61: Recording Constant Power Of An Electrical Generator

    Using digital inputs/outputs (optional) | 8 8.2.4 Recording constant power of an electrical generator The use of digital inputs/outputs described here is only permitted for electrical generators with a constant power output. Generators with fluctuating power output, such as modulating combined heat and power stations, must not be connected in this way.

  • Page 62: Recording Fluctuating Power Of An Electrical Generator

    Further information on power measurement and the power meter can be found in the power meter instructions . These instructions explain, among other things, the different measurement concepts and how to use multiple power meters. document number: 401, item number: 22118 62 / 100 Installation instructions sonnenBatterie 10...
  • Page 63 Using digital inputs/outputs (optional) | 8 Example: combined heat and power station with CP measurement concept Illustration 27: Example of implementation of CP measurement concept with a CHP unit as additional gener- ator Information for the example • Storage system without PV connection. •...

  • Page 64: Sonnenprotect 4000 (Optional)

    9 | sonnenProtect 4000 (optional) 9 sonnenProtect 4000 (optional) • Both when the sonnenBatterie 10 is first being installed and after the fact, a sonnenProtect (sonnenProtect 4000) can be added to the system. „ Observe the Safety [P. 7] information for the storage system and sonnenProtect at all times! „...

  • Page 65: Illuminated Switch Function

    sonnenProtect 4000 (optional) | 9 9.2 Illuminated switch function • The illumination of the illuminated switch indicates that the electrical consumers con- nected to the sonnenProtect are causing excessive power consumption. • Backup operation is stopped when an overload is detected until there is no more over- load and the illuminated switch has been pressed for approx.

  • Page 66: Installing The Sonnenprotect

    Removing the cover „ Remove the cover of the sonnenProtect. Drilling the holes „ Mark out the four holes on the back of the sonnenProtect on the wall. 66 / 100 Installation instructions sonnenBatterie 10...

  • Page 67: Connecting The Sonnenprotect

    sonnenProtect 4000 (optional) | 9 „ Drill the holes with a suitable diameter for the selected mounting material. „ Insert suitable wall plugs in the holes. Mounting the sonnenProtect „ Use suitable screws and washers to secure the sonnenProtect to the wall. 9.6 Connecting the sonnenProtect DANGER Electrical work on the storage system and electrical distributor...

  • Page 68: Installing The Backup Circuit(S)

    (the individual power consumption values are estimated values). Electrical consumer Power consumption Active during grid Electrical work outage [kW] [kWh] Lighting Freezer 0.25 0.15 Heating 0.25 0.175 Router, telephone 0.01 0.01 68 / 100 Installation instructions sonnenBatterie 10...
  • Page 69 sonnenProtect 4000 (optional) | 9 Electrical consumer Power consumption Active during grid Electrical work outage [kW] [kWh] Refrigerator 0.25 0.15 Alarm system, grid-connected 0.05 0.05 smoke detector Total 1.04 In this example the total power requirement for a grid outage lasting one hour is approx. 1.1 kWh, in order to maintain the function of all the listed consumers.

  • Page 70: Positioning Components In The Electrical Distributor

    • Figure 'Circuit diagram overview – electrical connection in single-phase mains [P. 71]’ shows the installation of a sonnenBatterie 10 with a sonnenProtect 4000 in single-phase mains. • The area marked in grey shows the system extension where the sonnenProtect was ad- ded.
  • Page 71 sonnenProtect 4000 (optional) | 9 Eingang E L'' N'' L'' N'' Illustration 30: Circuit diagram overview – electrical connection in single-phase mains Consumers in building Signal line from storage system (Protect) Consumer in backup circuit Storage system Residual current device (RCD) Earth connection sonnenProtect Miniature circuit breaker (MCB) | type B | 20 A...
  • Page 72 „ Connect the earthing cable to the central unit of the storage system (PE 10 mm²). „ Connect the earthing cable to the main earthing terminal of the building. 72 / 100 Installation instructions sonnenBatterie 10...

  • Page 73: Attaching Safety Label To The Distributor

    sonnenProtect 4000 (optional) | 9 Connecting the signal line and AC cable „ Connect the signal line to the central unit of the storage system (Protect) using the pre-assembled plug. „ Connect the AC cable to the central unit (AC Protect) using the pre-assembled plug. 9.6.4 Attaching safety label to the distributor DANGER Electrical installation remains live in event of grid outage...

  • Page 74: Commissioning The Sonnenprotect

    The storage system switches to backup operation after switching off the fuses. 2. Activate a consumer in the backup circuit „ Activate an electrical consumer connected to the backup circuit. 74 / 100 Installation instructions sonnenBatterie 10...

  • Page 75: Decommissioning The Sonnenprotect

    2. Check if there is a malfunction which is mentioned in the Troubleshooting [P. 84] section and follow the suggestions for rectification. 3. Contact the sonnen service team if the problem cannot be resolved. 9.8 Decommissioning the sonnenProtect Switching off the sonnenProtect...

  • Page 76: Completing Installation

    • The earth connection between the cover and mounting frame is established via the screw connection. • The inspection window and sonnen Eclipse have protective film on the inside and out- side. „ Remove all protective film before mounting the cover.

  • Page 77: Attaching The Switch Cover

    Completing installation | 10 „ Use three screws with contact discs from the installation equipment pack to secure and earth the cover. „ Tighten the screws with a torque of 8 Nm. 10.3 Attaching the switch cover The specified degree of protection for the storage system and therefore touch protection and protection against the ingress of water and foreign bodies is only achieved when the switch cover of the storage system is mounted.
  • Page 78 • The additional earth connection between the storage system and the main earthing ter- minal is in place and has a cross-section of 10 mm² (CU cross-section or equivalent). Table 7: Installation checklist 78 / 100 Installation instructions sonnenBatterie 10...

  • Page 79: Commissioning

    The storage system then starts and runs a self-test. Once the self-test is successful, the storage system is ready to operate. When the storage system is in normal operation, the sonnen Eclipse pulses white. The other operating statuses and the associated indications of the sonnen Eclipse are described in section Troubleshooting [P. 84].
  • Page 80 „ Assign an individual password for the storage system after you have logged in success- fully using the initial password. Contact the sonnen service team if you have forgotten the individually as- signed password or need to reset the password for another reason.

  • Page 81: Filling In The Commissioning Report

    „ Make a copy of the filled in commissioning report, the original remains with the oper- ator. „ Send a scan of the commissioning report to the following e-mail address within 5 work- ing days: service@sonnen.com.au 11.2.3 Taking photos to document installation The photo upload is obligatory for both offline commissioning and online com- missioning.

  • Page 82: Decommissioning

    Remove the switch cover on the inspection window of the switch panel. 2. Press the ON/OFF switch. The sonnen Eclipse switches off. 3. Switch off the grid voltage using the miniature circuit breaker for the mains line. 4. Reattach the switch cover to the inspection window.

  • Page 83: Switching The Storage System Off To Electrically Isolate It

    Before working on the storage system it must be completely switched off to be electrically isolated. Press the ON/OFF switch. The sonnen Eclipse switches off. 2. Switch off the grid voltage using the miniature circuit breaker for the mains line.

  • Page 84: Troubleshooting

    13 | Troubleshooting 13 Troubleshooting 13.1 sonnenBatterie 10 Fault Possible cause(s) Solution The sonnen Eclipse of the storage sys- The storage system is in normal opera- No troubleshooting is necessary. tem pulses white. tion. „ Check that the circuit breaker in...

  • Page 85: Sonnenprotect 4000 (Optional)

    Troubleshooting | 13 13.2 sonnenProtect 4000 (optional) Fault Possible cause(s) Solution Grid operation (no grid outage) The electrical consumers in the backup The backup circuit lines have not been Check the electrical wiring of the circuit are not supplied with energy in correctly connected.
  • Page 86 Only connect electrical consumers to the backup circuit when they have a power consumption that does not ex- ceed the maximum power (see Tech- nical data [P. 89]). 86 / 100 Installation instructions sonnenBatterie 10...

  • Page 87: Uninstallation And Disposal

    Uninstallation and disposal | 14 14 Uninstallation and disposal 14.1 Uninstallation DANGER Improper uninstallation of the storage system Danger to life due to electrocution! „ The storage system must only be uninstalled by licensed electricians. DANGER Improper uninstallation of the sonnenProtect Danger to life due to electrocution! „...
  • Page 88 „ Dispose of the storage system, the batteries it contains and the sonnenProtect in an environ- mentally friendly way through suitable collec- tion systems. „ Contact sonnen GmbH to dispose of old bat- teries. Illustration 34: WEEE symbol 88 / 100...

  • Page 89: Technical Data

    Technical data | 15 15 Technical data 15.1 sonnenBatterie 10 sonnenBatterie 10 System data (AC) General Nominal voltage 230/240 V Nominal frequency 50 Hz Nominal power 4,600/4,800 W Nominal current 20 A Power factor range 0.9 capacitive ... 0.9 inductive Network Impedance (Z 0.34 Ω...
  • Page 90 • Observe all fire control standards. • Observe applicable local building codes. From 16.5 kWh: storage system with extension Optimal: 5 °C … 30 °C | Derating possible below 5 °C / above 30 °C. 90 / 100 Installation instructions sonnenBatterie 10...

  • Page 91: Sonnenprotect 4000 (Optional)

    Technical data | 15 15.2 sonnenProtect 4000 (optional) sonnenProtect 4000 System data (AC) Nominal power 4,000 W Nominal frequency 50 Hz Output voltage 230/240 V Overload (30 min.) max. 4,600 W Power factor range 0 capacitive ... 0 inductive Max. output current (duration/100 ms) 20 A / 23 A Short-circuit current 40 A...
  • Page 92 S o n n e n A u s t r a l i a P t y L t d 6 0 4 S o u t h T o w e r 1-5 Railway Street, Chatswood NSW 2067 ACN 611 337 547 0408 802 388 support@sonnen.com.au...
  • Page 93 S o n n e n A u s t r a l i a P t y L t d 6 0 4 S o u t h T o w e r 1-5 Railway Street, Chatswood NSW 2067 ACN 611 337 547 0408 802 388 support@sonnen.com.au...

  • Page 94: Commissioning Report

    Commissioning report Commissioning report Please send the filled in report to the following email addresses within 5 working days of successful commissioning: support@sonnen.com.au Commissioning details Specialist company details Storage system serial number Company Date of commissioning Street Post code, town...

  • Page 95: Glossary

    Glossary Glossary Alternating current Electrostatic discharge Accord européen relatif au transport international Energieversorgungsunternehmen [de] - energy des marchandises Dangereuses par Route [fr] – supply company European Agreement concerning the International Carriage of Dangerous Goods by Road Ground Grid and system protection Battery management system Protective measures for ensuring the safety of the grid and systems installed...
  • Page 96 State of Charge Technical connection conditions The technical connection conditions govern the connection to the electricity grid of the distribution network operators in Germany. Universal Serial Bus Virtual Private Network 96 / 100 Installation instructions sonnenBatterie 10...
  • Page 100 GmbH Am Riedbach 1 D-87499 Wildpoldsried...
