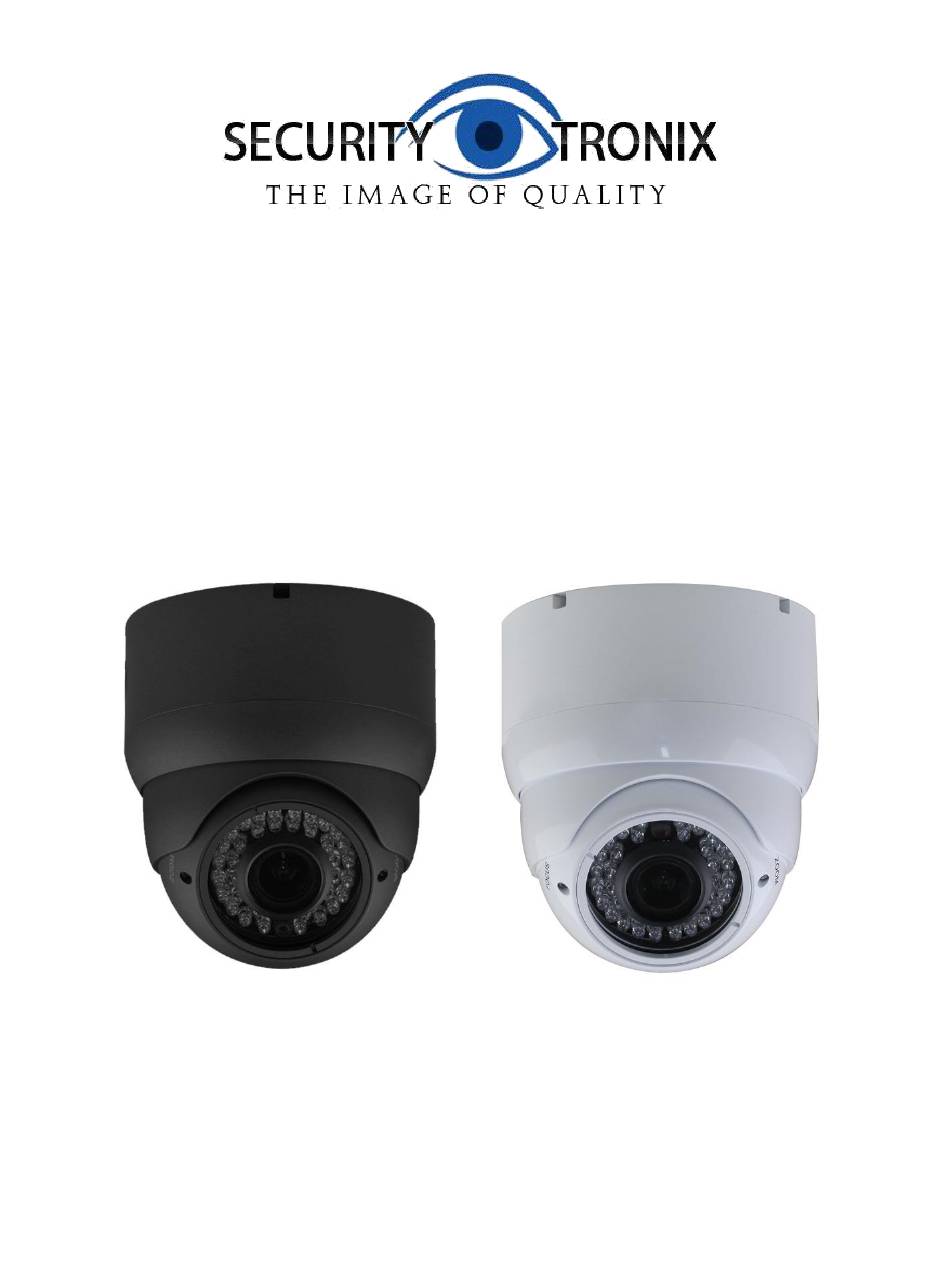

- Page 1 INSTALLATION MANUAL ST-DLI6502812-JBX-B/W Vandalproof Infrared Color Camera With Integrated Junction Box V1.0 12-23-13...
- Page 2 PACKAGE CONTENTS This package contains: One ST-DLI6502812-B/W Camera with integrated junction box One installation manual Note: The ST-DLI6502812 –B - W requires a 12VDC 500mA power supply such as the ST- PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-DLI6502812-B-W is a vandalproof infrared camera designed around a 1/3” Color SONY CCD with 650TVL of resolution, 36 infrared LEDs providing infrared capability up to 90 feet and a 2.8mm –...
- Page 3 INSTALLATION AND OPERATION 1. UNPACKING and HANDLING Each unit is shipped assembled and factory tested. Ensure that all accessories are removed from the container before discarding packing material 2. MECHANICAL INSPECTION Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose.
- Page 4 V1.0 12-23-13...
- Page 5 5. TROUBLESHOOTING a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
