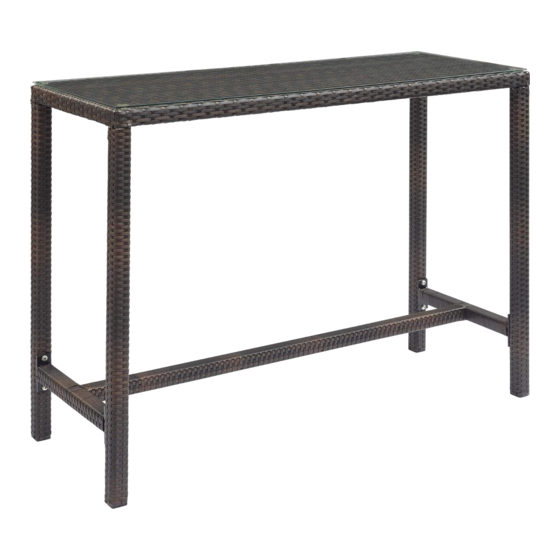

Thank you for purchasing the BAR TABLE!
Before you start, here are some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the bar table, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of children.
Component:
1
Table Glass
x1
2
3
3
4
2
Table Top
x1
Hardware:
A
B
C
D
E
F
G
H
1
3
3
Table Leg
Page 1 of 4
Double-End Bolt
Long Bolt 1/4"x20mm
Flat Washer 1/4"
Nut 1/4"
Allen Wrench 1/4"
Wrench 1/4"
Plastic Cover
Spring Washer 1/4"
Hammer (Not provided)
3
4
x4
Stretcher
x 4
x 8
x 16
x 4
x 1
x 1
x 4
x 8
x1
Advertisement
Table of Contents
Related Manuals for modway EEI-2803
Summary of Contents for modway EEI-2803
- Page 1 Thank you for purchasing the BAR TABLE! Before you start, here are some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. 2.Owing to the size and weight of the bar table, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 BAR TABLE STEP 1: Please put Table Top (2) upside down on a carpeted or padded area. Fully secure 4 pieces of Double-End Bolt (A) with 4 pieces of Spring Washer (H), 4 pieces of Flat Washer (C) into the bottom of Table Top (2) as shown.
- Page 3 BAR TABLE STEP 3: Place Stretcher (4) to the assembled Table Top (2) and Table Legs (3) as shown. Insert 8 pieces of Bolt (B) with 8 pieces of Flat Washer (C) into the holes on Table Leg (3) through the holes on Stretcher (4). Use Allen Wrench (E) to tighten Bolts (B) clockwise until secure.
- Page 4 BAR TABLE STEP 5: Insert 4 pieces of Plastic Cover (G) into the assembled Table Leg (3) by using Hammer (Not provided) as shown. Not Provided Hardware & Tool required STEP 6: Carefully turn over the assembled bar table. Put Table Glass (1) to the Table Top (2) as shown. Assembly is complete.
