EEI –2853

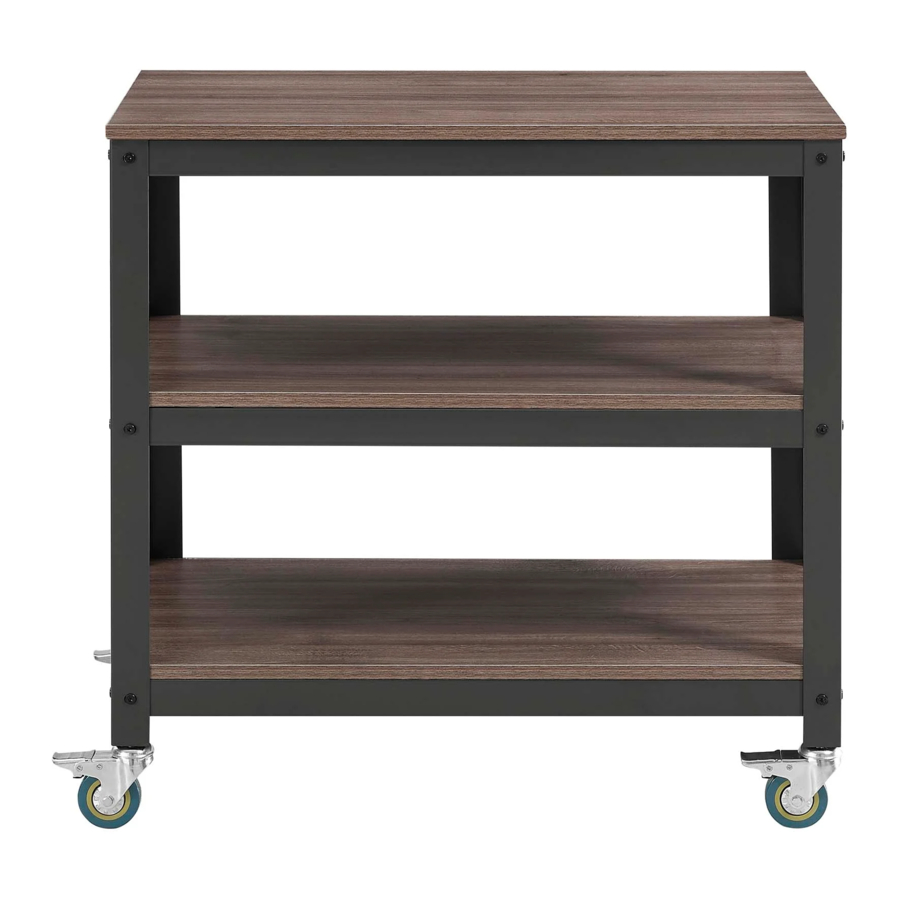

BOOKCASE
Thank you for purchasing the MODWAY BOOKCASE！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2.Owing to the size and weight of the bookcase, we recommend that it is assembled by two adults, on a carpeted
or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe and
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all fitting out of reach of children.
Component:
A
Metal Frame
x3
Customer Service 908-368-1025︱www.modwayfurniture.com
Hardware:
B
B
B
Leg
x4
1
2
3
D
A
B
C
B
A
C
A
C
Shelf
x2
Bolt M6x12mm
Castor
Allen Wrench M4
D
Top Panel
x1
Page 1 of 4
x36
x4
x1
Advertisement
Table of Contents
Related Manuals for modway EEI –2853
Summary of Contents for modway EEI –2853
- Page 1 EEI –2853 BOOKCASE Thank you for purchasing the MODWAY BOOKCASE！ Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2.Owing to the size and weight of the bookcase, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI –2853 BOOKCASE STEP 1: Put 1 piece of Shelf (C) upside down on a carpeted or padded surface. Place 1 piece of Metal Frame (A) to Shelf (C) as shown. Insert 4 pieces of Bolt (1) into the pre-drilled holes on Shelf (C) through the pre-drilled holes on Metal Frame (A). Use Allen Wrench (3) to tighten Bolts (1).
- Page 3 EEI –2853 BOOKCASE STEP 3: Put Top Panel (D) upside down on a carpeted or padded surface. Place the assembled Metal Frame (A), Legs (B), and Shelves (C) to Top Panel (D) as shown. Insert 4 pieces of Bolt (1) into the pre-drilled holes on Top Panel (D) through the pre-drilled holes on Metal Frame (A). Use Allen Wrench (3) to tighten all the Bolts (1) clockwise until secure at this step.
- Page 4 EEI –2853 BOOKCASE STEP 5: Carefully turn over the assembled bookcase. Assembly is complete. Your bookcase is ready to be used now! Customer Service 908-368-1025︱www.modwayfurniture.com Page 4 of 4...
