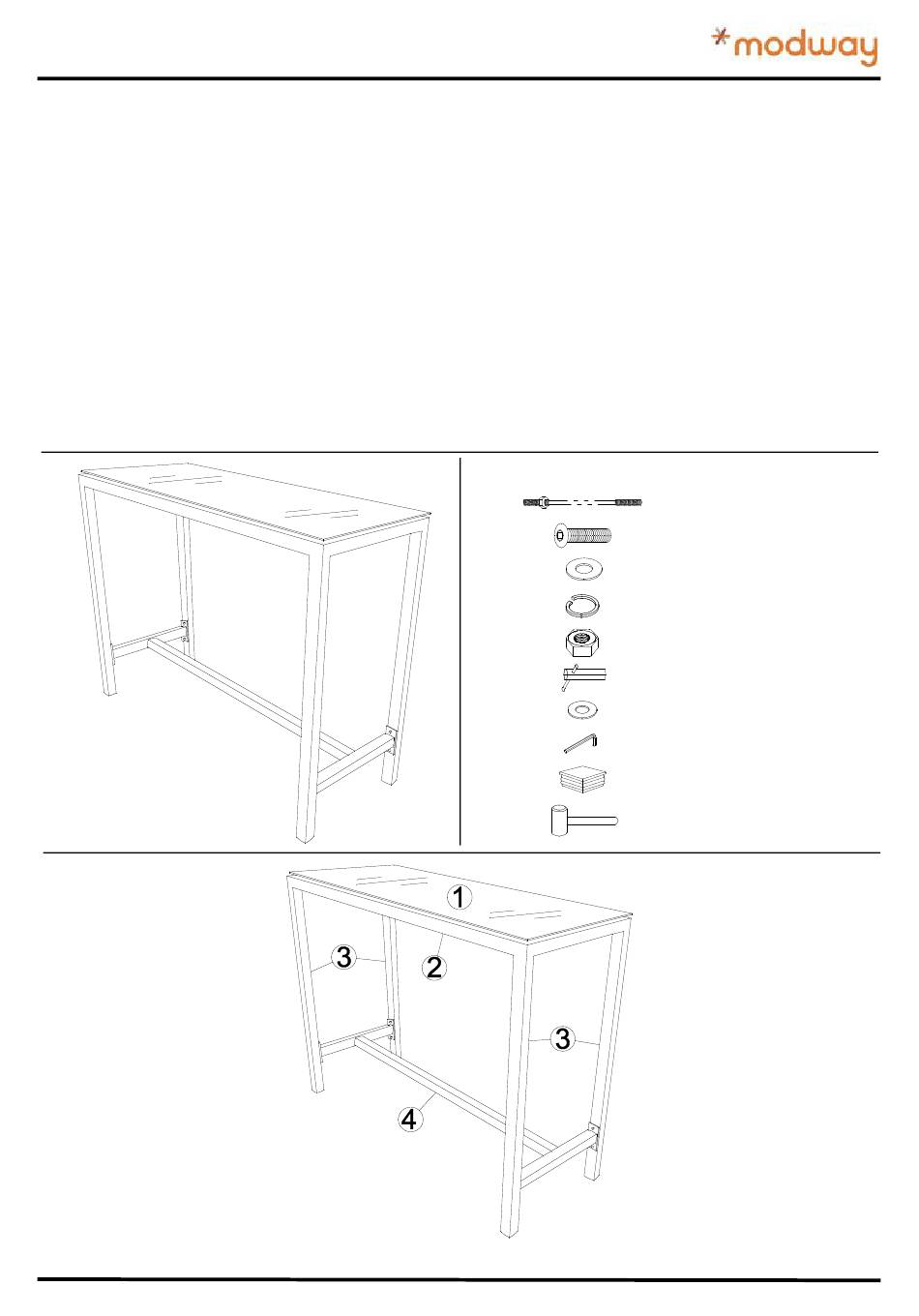

EEI-2803/2804 BAR TABLE
Thank you for purchasing the MODWAY BAR TABLE.
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the Bar Table, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all pieces out of reach of children.
Components:
1. Table Glass
Customer Service 609-256-9000︱www.modway.com
x1
2. Table Top
Hardware:
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
x1
3. Table Leg
Double-End
x4
Bolt M6x20mm
Flat Washer
Dia22mm
Spring Washer ¼
Nut ¼
Wrench ¼
Flat Washer
Dia18mm
Allen Wrench
Plastic Cover
Hammer (Not Provided)
x4
4. Stretcher
Page 1 of 4
Bolt
x8
x8
x8
x4
x1
x8
x1
x4
x1
Advertisement
Related Manuals for modway EEI-2803
Summary of Contents for modway EEI-2803
- Page 1 EEI-2803/2804 BAR TABLE Thank you for purchasing the MODWAY BAR TABLE. Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2. Owing to the size and weight of the Bar Table, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI-2803/2804 BAR TABLE STEP 1: 1. Please put Table Top (2) upside down on a carpeted or padded area. 2. Fully secure 4 pieces of Double-End Bolts (A) with 4 pieces of Flat Washers (C) and 4 pieces of Spring Washers (D) into the bottom of Table Top (2) as shown.
- Page 3 EEI-2803/2804 BAR TABLE STEP 3: 1. Place Stretcher (4) to the assembled Table Top (2) and Table Legs (3) as shown. 2. Insert 8 pieces of Bolts (B) with 8 pieces of Flat Washers (G) into the holes on Table Legs (3) through the holes on Stretcher (4).
- Page 4 EEI-2803/2804 BAR TABLE STEP 5: Insert 4 pieces of Plastic Covers (I) into the assembled Table Legs (3) by using Hammer (J) as shown. STEP 6: 1. Carefully turn over the assembled bar table. 2. Put Table Glass (1) to the Table Top (2) as shown.
