EEI –2870

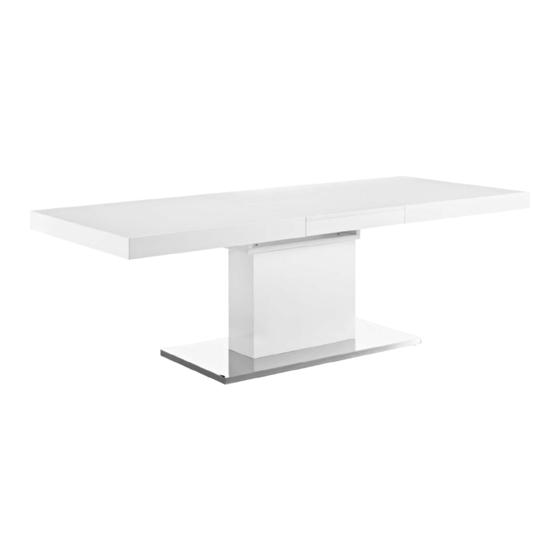

TABLE
Thank you for purchasing the MODWAY TABLE！
Before you start, here is some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the table, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 45 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe and
environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6. Please keep all fitting out of reach of children.

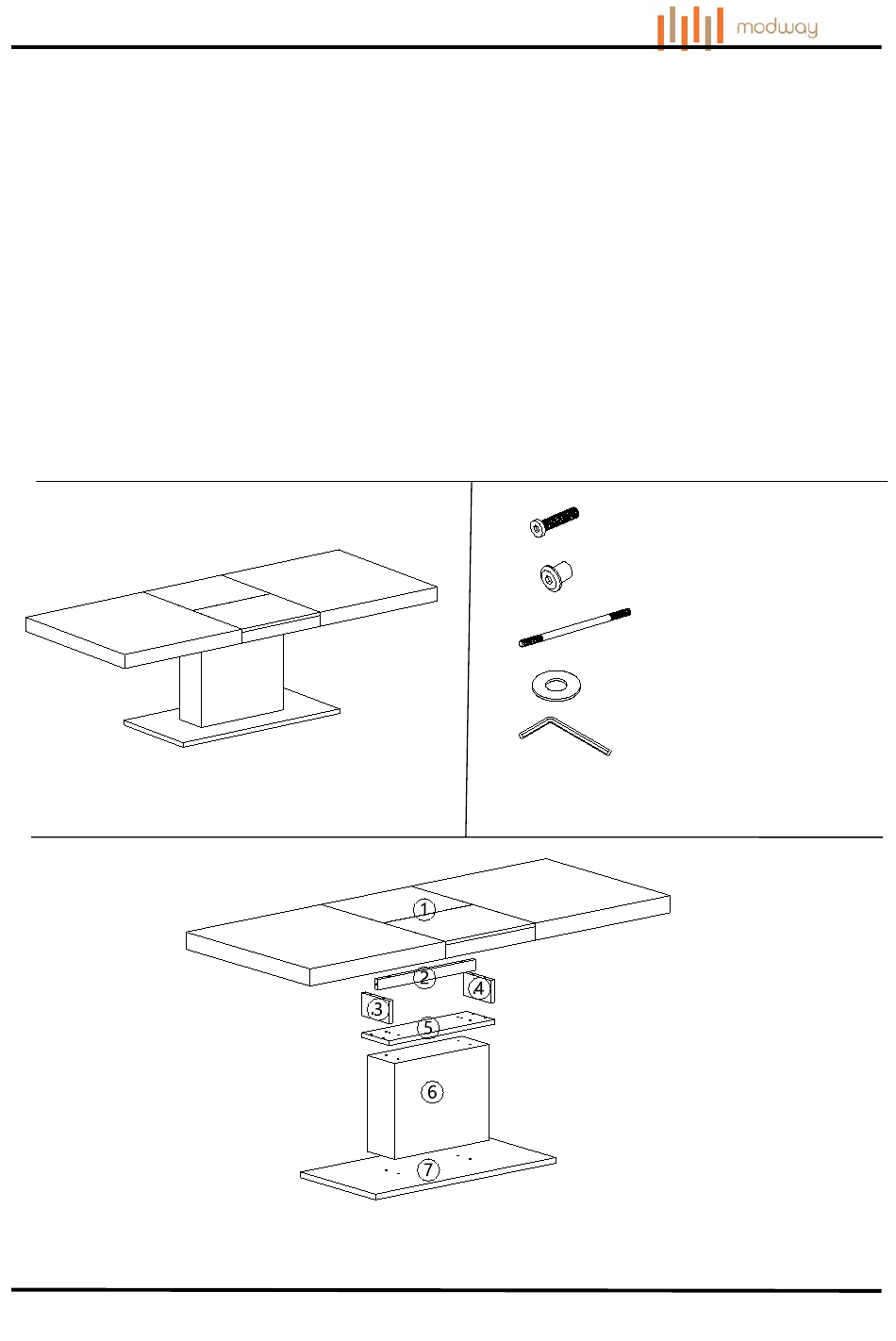

Component:
1 Table Top x1
5 Middle Panel x1
Customer Service 908-368-1025︱www.modwayfurniture.com
2 Top Rail x1
6 Base x1
Hardware:
A.
B.
C.
D.
E.
3 Left Side Panel x1
7 Bottom Panel x1
Bolt M8x40mm
x 12
Nut M8
x 4
Double End Bolt M8x160mm
Flat Washer ø8*18mm x 12
Allen Wrench M5 x1
4 Right Side Panel x1
Page 1 of 10
x4
