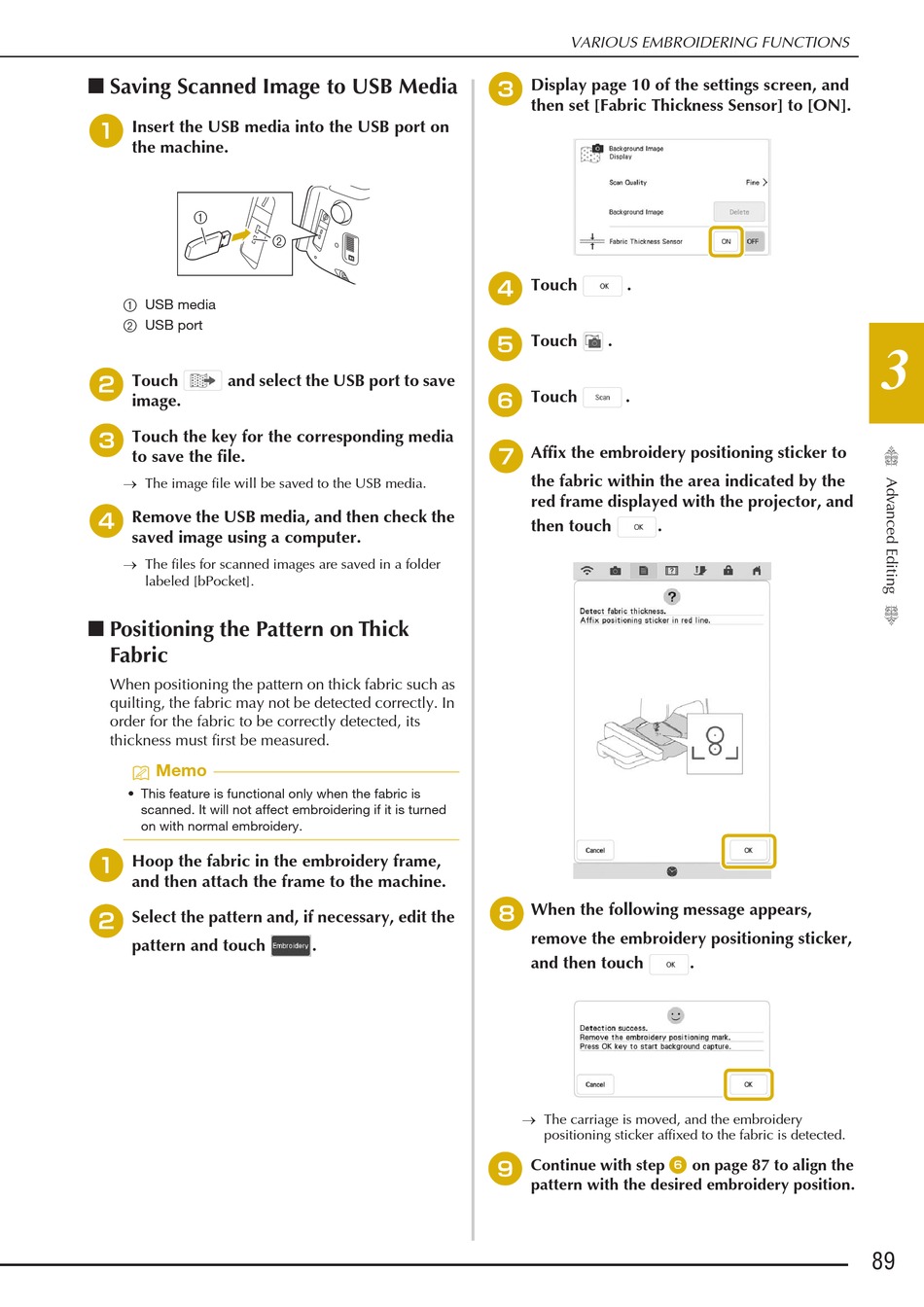

■ Saving Scanned Image to USB Media
a
Insert the USB media into the USB port on
the machine.
a
a USB media
b USB port
b
Touch
and select the USB port to save
image.
c
Touch the key for the corresponding media
to save the file.
 The image file will be saved to the USB media.
d
Remove the USB media, and then check the
saved image using a computer.
 The files for scanned images are saved in a folder
labeled [bPocket].
■ Positioning the Pattern on Thick
Fabric
When positioning the pattern on thick fabric such as
quilting, the fabric may not be detected correctly. In
order for the fabric to be correctly detected, its
thickness must first be measured.
Memo
• This feature is functional only when the fabric is
scanned. It will not affect embroidering if it is turned
on with normal embroidery.
a
Hoop the fabric in the embroidery frame,
and then attach the frame to the machine.
b
Select the pattern and, if necessary, edit the
pattern and touch
.
VARIOUS EMBROIDERING FUNCTIONS
c
Display page 10 of the settings screen, and
then set [Fabric Thickness Sensor] to [ON].
d
Touch
.
e
Touch
.
f
Touch
.
g
Affix the embroidery positioning sticker to
the fabric within the area indicated by the
red frame displayed with the projector, and
then touch
.
h
When the following message appears,
remove the embroidery positioning sticker,
and then touch
 The carriage is moved, and the embroidery
positioning sticker affixed to the fabric is detected.
i
Continue with step
pattern with the desired embroidery position.
.
f
on page 87 to align the
3
89
