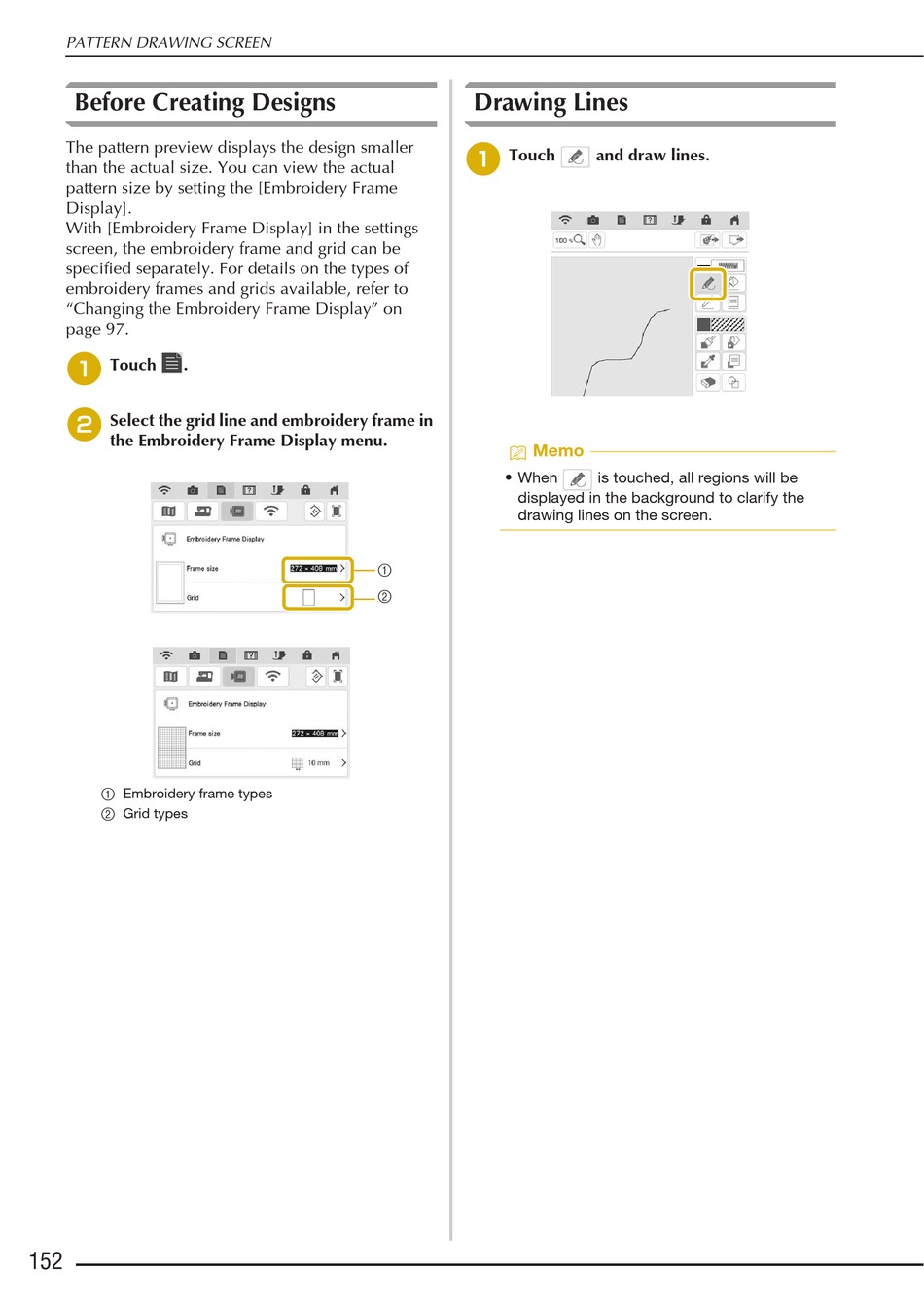

PATTERN DRAWING SCREEN

Before Creating Designs

The pattern preview displays the design smaller
than the actual size. You can view the actual
pattern size by setting the [Embroidery Frame
Display].
With [Embroidery Frame Display] in the settings
screen, the embroidery frame and grid can be
specified separately. For details on the types of
embroidery frames and grids available, refer to
"Changing the Embroidery Frame Display" on
page 97.
a
Touch .
b
Select the grid line and embroidery frame in
the Embroidery Frame Display menu.
a Embroidery frame types
b Grid types
152

Drawing Lines

a
Touch
Memo
• When
displayed in the background to clarify the
drawing lines on the screen.
a
b
and draw lines.
is touched, all regions will be
