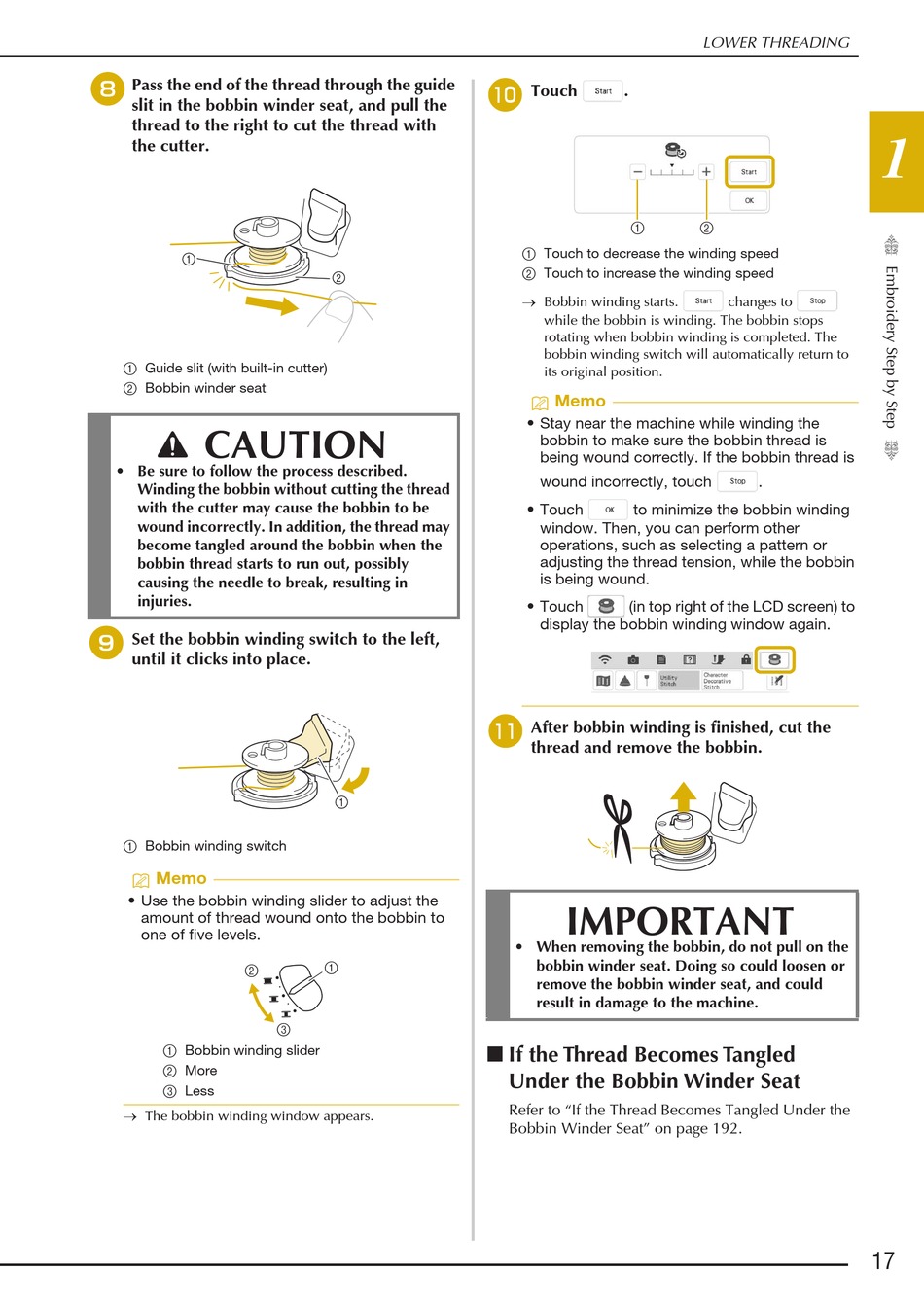

Baby Lock SOLARIS VISION BLSA3 Instruction And Reference Manual page 19

h
Pass the end of the thread through the guide
slit in the bobbin winder seat, and pull the
thread to the right to cut the thread with
the cutter.
a Guide slit (with built-in cutter)
b Bobbin winder seat
CAUTION
• Be sure to follow the process described.
Winding the bobbin without cutting the thread
with the cutter may cause the bobbin to be
wound incorrectly. In addition, the thread may
become tangled around the bobbin when the
bobbin thread starts to run out, possibly
causing the needle to break, resulting in
injuries.
i
Set the bobbin winding switch to the left,
until it clicks into place.
a Bobbin winding switch
Memo
• Use the bobbin winding slider to adjust the
amount of thread wound onto the bobbin to
one of five levels.
a Bobbin winding slider
b More
c Less
 The bobbin winding window appears.
j
k
a
■ If the Thread Becomes Tangled
Touch .
a
a Touch to decrease the winding speed
b Touch to increase the winding speed
 Bobbin winding starts.
while the bobbin is winding. The bobbin stops
rotating when bobbin winding is completed. The
bobbin winding switch will automatically return to
its original position.
Memo
• Stay near the machine while winding the
bobbin to make sure the bobbin thread is
being wound correctly. If the bobbin thread is
wound incorrectly, touch
• Touch to minimize the bobbin winding
window. Then, you can perform other
operations, such as selecting a pattern or
adjusting the thread tension, while the bobbin
is being wound.
• Touch (in top right of the LCD screen) to
display the bobbin winding window again.
After bobbin winding is finished, cut the
thread and remove the bobbin.
IMPORTANT
• When removing the bobbin, do not pull on the
bobbin winder seat. Doing so could loosen or
remove the bobbin winder seat, and could
result in damage to the machine.
Under the Bobbin Winder Seat
Refer to "If the Thread Becomes Tangled Under the
Bobbin Winder Seat" on page 192.
LOWER THREADING
b
changes to
.
17
