3.5 PoE power output

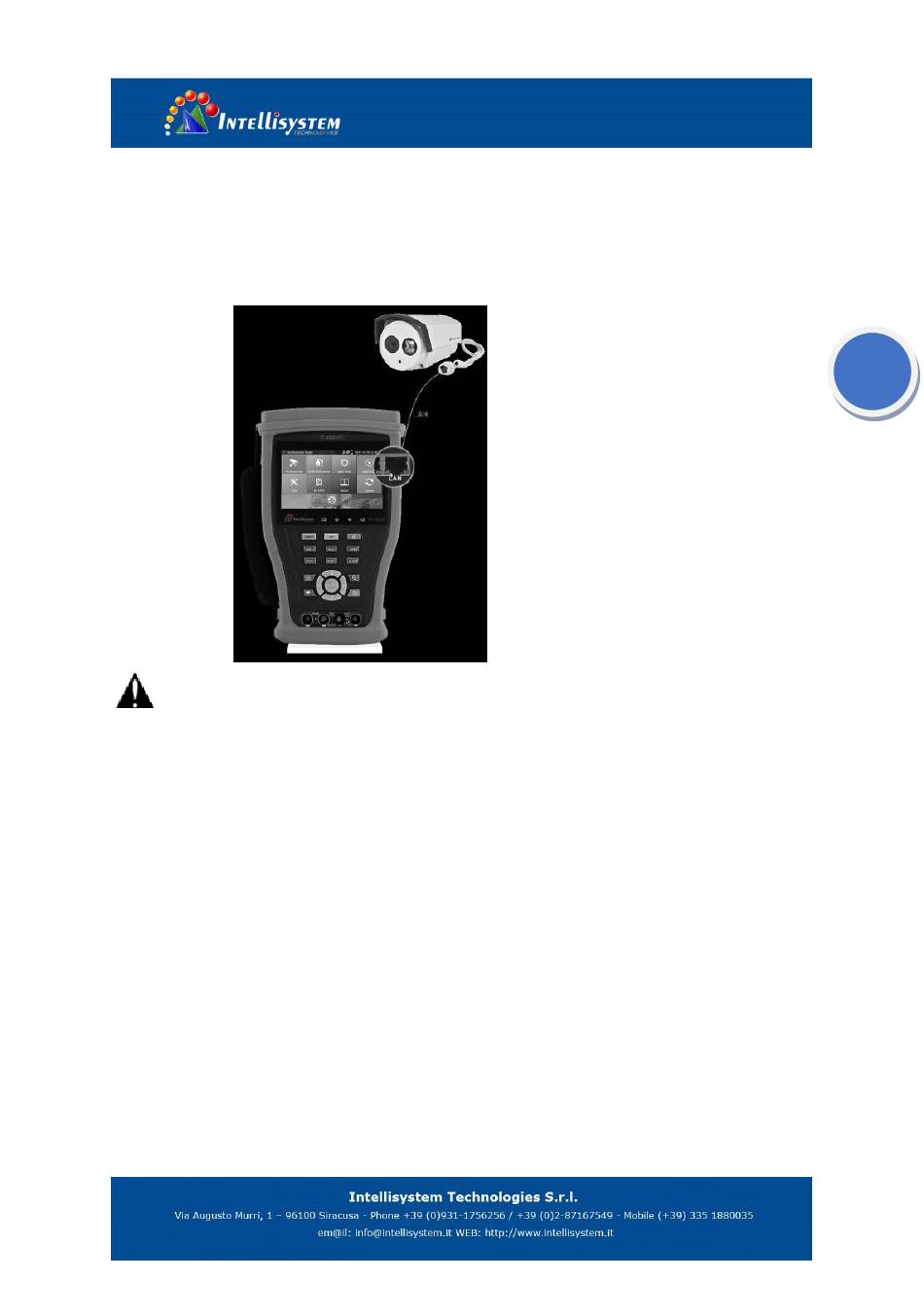

The IP tester supports PoE (Power over Ethernet) output to an IP camera via the LAN port. Data
transmission and 48VDC use the network cable's 1, 2, 3, and 6 pins to deliver power. If the IP camera
supports PoE, you can directly connect to the camera without the use of an external power supply.
113
Notice
a. Please make sure the cable connected to the tester's Lan port is straight-line cable and has no short
circuit, otherwise will damage the tester
b. Before using PoE power output, pls check the IP camera whether supports POE powered. Otherwise
it will damage the IP camera.
c. The instrument's PoE maximum power output is 24W. If Ultra- high-power load happens, the tester
will enter protection mode.
3.6 HDMI output
The built in HDMI output port can output live video from an analog or IP camera, recorded files, media
files and images to HDTV monitors. Connect an HDMI cable from the IP tester to an HDTV monitor at
any time. It supports up to 1080P resolution.
