Note: If the device requires a current greater than the rated value of the PGM output, a
relay and an approved power supply are required.

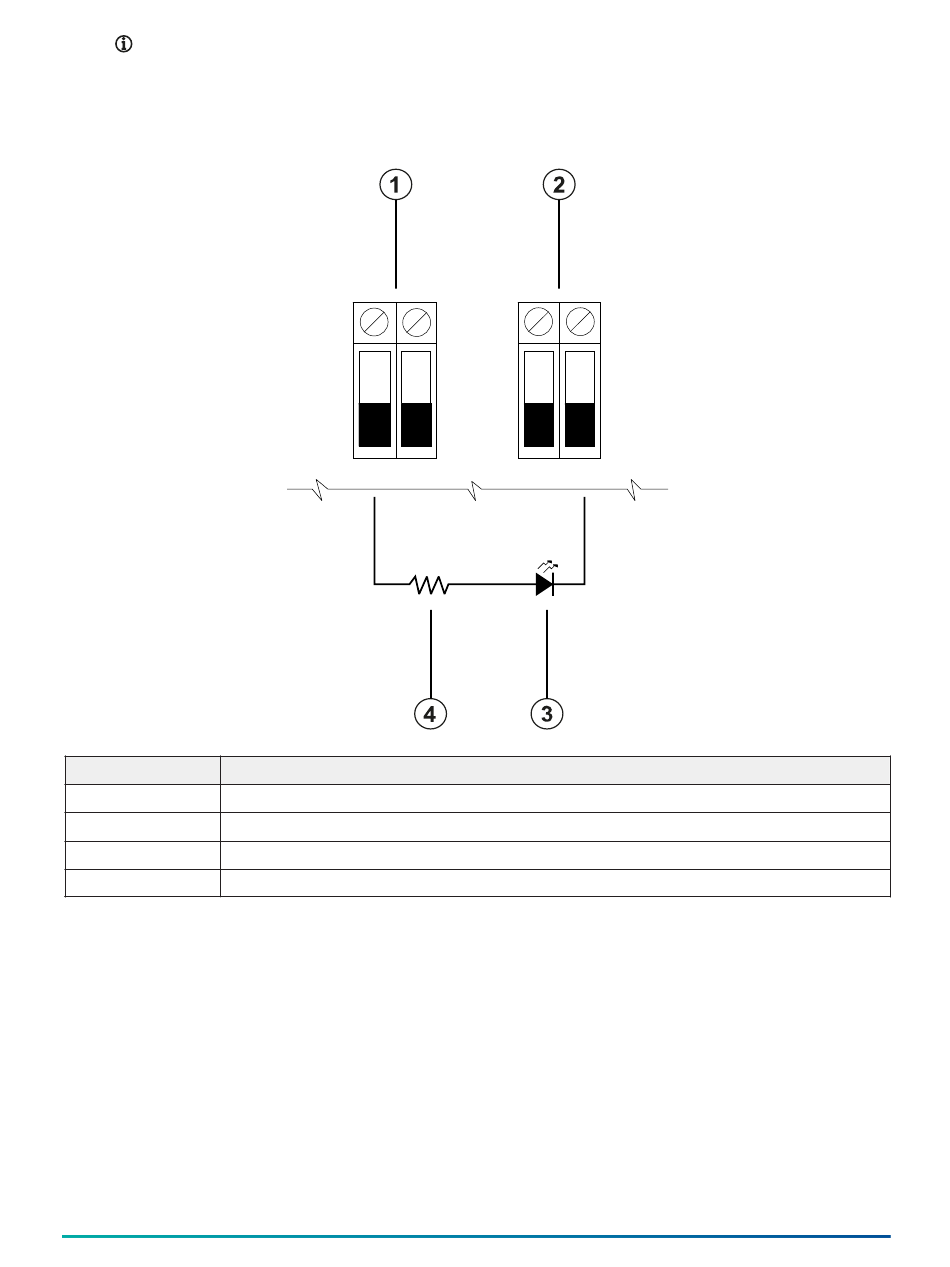

To wire the LED indicator, see Figure 6.
Figure 6: LED indicator wiring
Callout Description
1 AUX terminals
2 PGM terminals
3 LED indicator
4 680 Ω resistor (typical value)
To wire the relay output, see Figure 7.
