Altronix WayPoint104 Installation Manual page 5

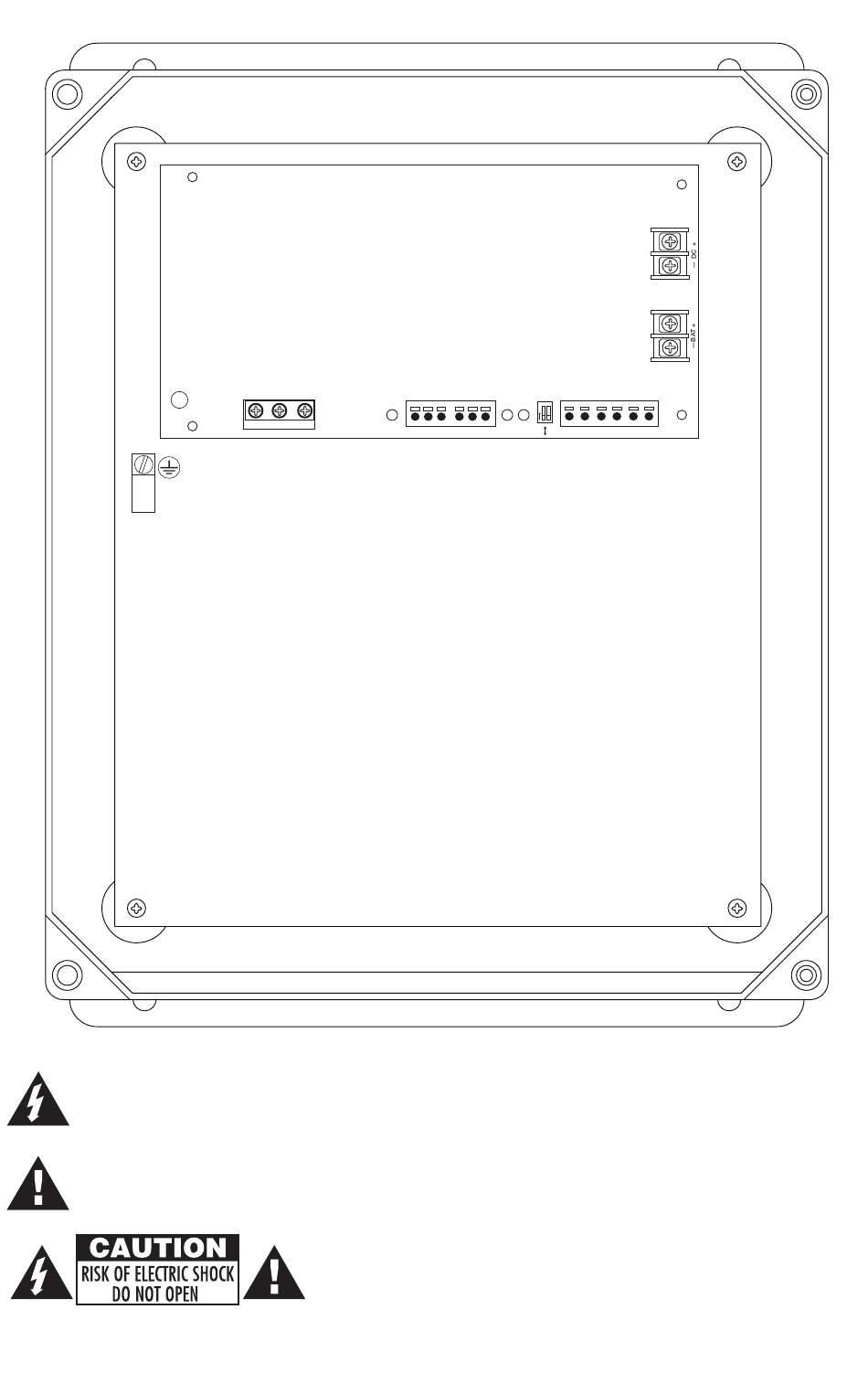

Fig. 3 - WayPoint102 and WayPoint104
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of an insulated DANGEROUS VOLTAGE within the product's enclosure that may
be of sufficient magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
WayPoint DC
5A 250V
L G N
CAUTION
HIGH VOLTAGE
CAUTION: To reduce the risk of electric shock do not open
enclosure. There are no user serviceable parts inside.
Refer servicing to qualified service personnel.
AC FAIL BAT FAIL
AC DELAY SHUTDOWN
AC1
O
N
AC DC
1 min. enable
NC C NO NC C NO
2 hr. disable
TRIGGER EOL NO GND
+ AUX –
SUPERVISED RESET
