6. Configure each section.
a. OPTIONAL: Tap the manifold number or name to rename the section. Sections
display in alphanumeric order based on name.
EXAMPLE:
•
Seed tower names: S1, S2, S3, etc.
•
Fertilizer tower names: F1, F2, F3, etc.
b. Tap the ECU or ECUs that are connected to the section. The ECU serial number is
located on the back of the ECU.
NOTE: If you split a manifold's runs across two ECUs or joined two manifolds on one
ECU, refer to the instructions below when assigning ECUs:
•
Splitting: Select the two ECUs that your manifold is connected to.
•
Joining: Select the same ECU for two different manifolds.
c. Select the number of sensors connected to the ECU.
d. If you are running two different products via two different airstreams, decide which
product will be product A and which will be product B. Select which product this
section is running.
NOTE: Make sure that you assign product types consistently. For example, if
Sections 01 and 03 are running seed and Sections 02 and 04 are running fertilizer
pellets, you should assign Product A to Sections 01 and 03 and Product B to
Sections 02 and 04.
e. Tap the blue Next button to continue to the next section.
NOTE: To permanently delete a section, tap the red trash icon in the upper left
corner. To temporarily disable a section, toggle the Enabled switch in the upper right
corner.
When you're done configuring all sections, tap Done. Then, tap the next arrow
f.
in the bottom right corner of the screen.
600890-000075, rev 1.0

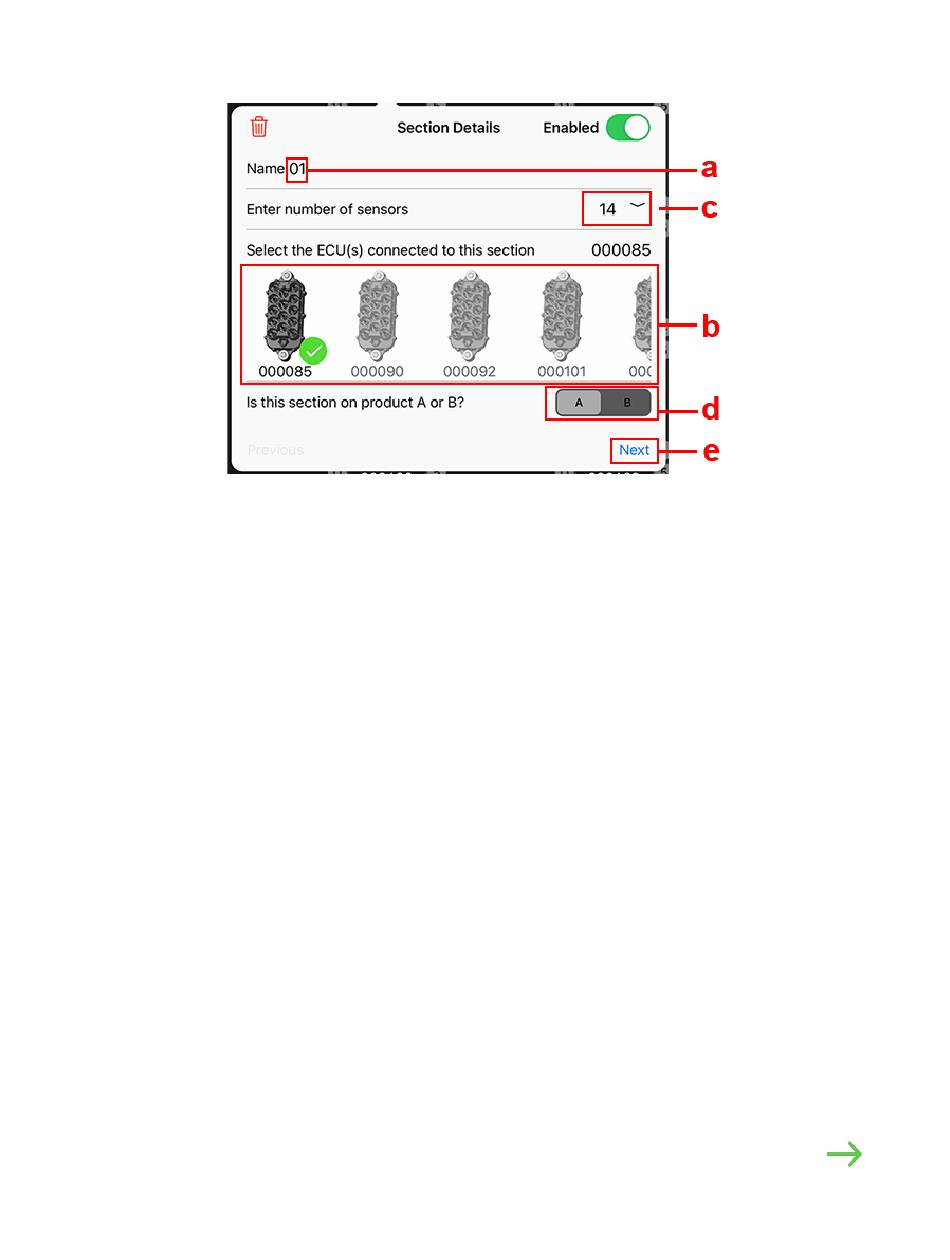

Figure 6: Configuration – Section Details
