IntelligentAg Recon Blockage Plus Operator's Manual page 11

c. Select the current mode of your implement (raised or lowered). This determines the
configuration of your work switch. To verify your work switch setup after
configuration, refer to Section 2.3.
d. Tap the next arrow
9. Set up alarm delay and volume.
NOTE: To view other alarm settings after configuration, see Section 2.6.

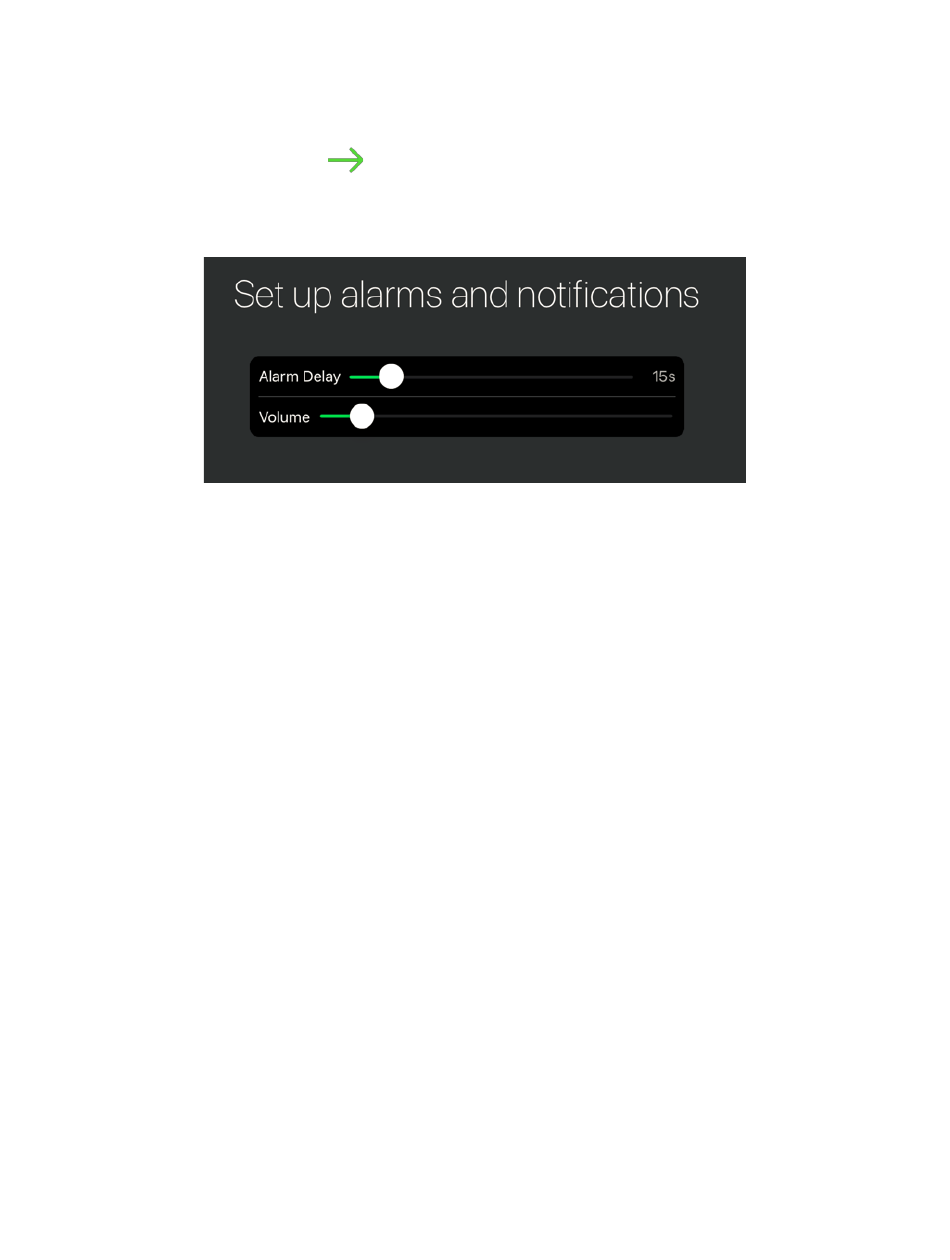

Figure 9: Configuration – Set Up Alarms and Notifications
a. Drag the slider to select a delay before alarms sound.
b. Drag the slider to select the volume of the alarms (unless the volume is controlled by
your device's side switch).
c. Tap the checkbox
600890-000075, rev 1.0
.
Recon Blockage Plus™ Operator's Guide
Page 11 of 26
