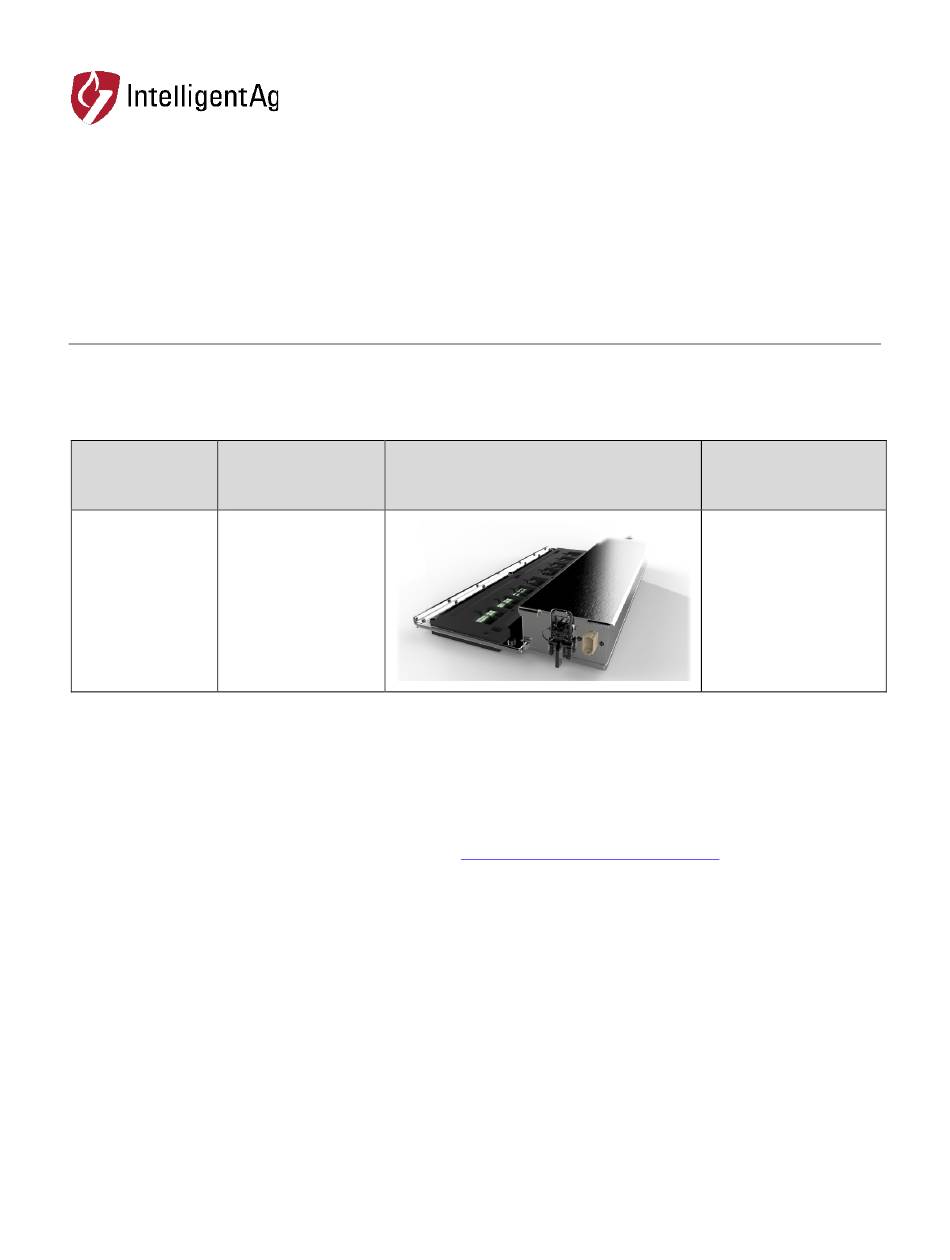

DOCUMENT NUMBER: 600870-000041
SUBJECT: ENGAGE
ZONE CONTROL MOTOR REPLACEMENT
®
DATE: FEBRUARY 15, 2021
This information notice describes how to replace a failed motor inside the Engage Zone Control unit.
Affected Parts

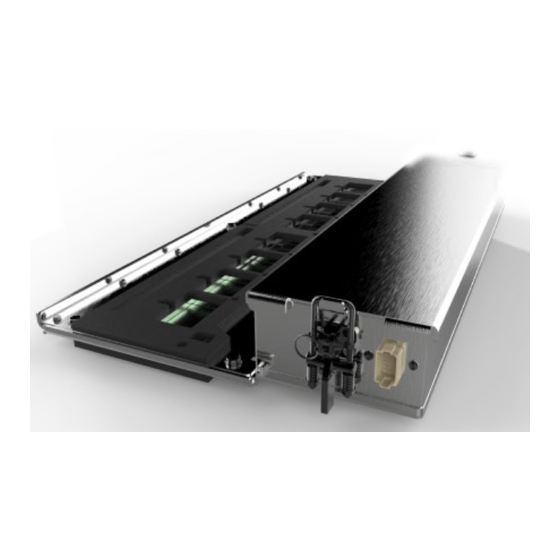

PART NAME
Engage Zone
153510-000121
Control unit
Document References
The content in this information notice and additional maintenance instructions are found in the
Engage® Zone Control Maintenance Manual (600840-000047). This document and all other
Intelligent Ag support documentation is found at
About
If a motor inside the Engage Zone Control unit fails, follow the instructions in this document to
replace it.
INFORMATION NOTICE
IAS PART
NUMBER
Page 1 of 8
1810 NDSU Research Circle N
www.intelligentag.com/support.
Fargo, ND 58102
www.intelligentag.com
PROBLEM
Motor failure

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Engage Zone Control and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IntelligentAg Engage Zone Control

Summary of Contents for IntelligentAg Engage Zone Control

  • Page 1 Engage® Zone Control Maintenance Manual (600840-000047). This document and all other Intelligent Ag support documentation is found at www.intelligentag.com/support. About If a motor inside the Engage Zone Control unit fails, follow the instructions in this document to replace it. Page 1 of 8...
  • Page 2 1810 NDSU Research Circle N Fargo, ND 58102 www.intelligentag.com Tools Needed Pliers (for turning lead screw) • 1/4” hex drive (for ground wire screw) • 15 mm socket, ratchet, and extension (for removing motor mounts) • 5.5 mm socket, ratchet and extension (for removing plates from motor face) •...
  • Page 3 1810 NDSU Research Circle N Fargo, ND 58102 www.intelligentag.com IMPORTANT: Before removing the motor mounts, make note of the serial number of each motor controller and if it is installed on the left side or right side of the enclosure. The motor controllers must be reinstalled in their original position.
  • Page 4 1810 NDSU Research Circle N Fargo, ND 58102 www.intelligentag.com 2. Manually turn the lead screw of the motor in order to unscrew the black nut holding clip. If the motor is seized and will not turn by hand, use a piers to turn the lead screw.
  • Page 5 1810 NDSU Research Circle N Fargo, ND 58102 www.intelligentag.com 4. Insert the new motor onto the motor mount with the power connector facing up as shown below. 5. Re-install the four 5.5 mm screws. Use a torque screwdriver to torque them to 21 inch/lbs.
  • Page 6 1810 NDSU Research Circle N Fargo, ND 58102 www.intelligentag.com 4. Plug all connections of the motor controller harness back into their respective connections. Refer to the motor controller harness connections diagram at the end of the maintenance manual. NOTE: Ensure that that harness is routed toward the back of the enclosure.
  • Page 7 1810 NDSU Research Circle N Fargo, ND 58102 www.intelligentag.com Appendix A: Engage® Zone Control Unit Components Page 7 of 8...
  • Page 8 1810 NDSU Research Circle N Fargo, ND 58102 www.intelligentag.com Appendix B: Motor Controller Harness Connections Page 8 of 8...
