NOTE: When the implement is out of the ground, the app might display that all runs are blocked
(because no material is flowing through the runs), but the audio alarm will not sound. Residual
seed or other product can cause the flow and blockage readings to fluctuate for a few minutes
after stopping seeding.
3.2.1 Silencing the audio alarm
When the blocked run alarm is sounding, silence it by tapping anywhere on the Blockage
screen. It will stay silent until another blockage is detected.
3.2.2 Viewing blockage history
View all recently detected blockages from the Blockage History list. To view blockage history,
tap the history icon on the Blockage screen. For example, in manifold view, a blockage on
Manifold 2, Run 5 will appear as "02 - R 5." In row view, a blockage will display with the run
number. Blockages that are currently active are in black text.
3.2.3 Adjusting flow rate settings
If you are applying product at a low application rate, you can adjust your flow rate settings to
prevent the flow alarm from falsely triggering.
To adjust the flow level settings:
1. Tap the settings
2. Under Flow Rate, select Normal, Low, or Very Low.
•
Normal: Use when applying seed at a rate greater than 7 pounds/acre. Used for
most products.
•
Low: Use when applying seed at a rate between 5 to 7 pounds/acre. Often used with
canola, flax, alfalfa, and grass.
•
Very Low: Use when applying seed at a rate less than 5 pounds/acre. Often used
with canola and sunflowers.
600890-000075, rev 1.0

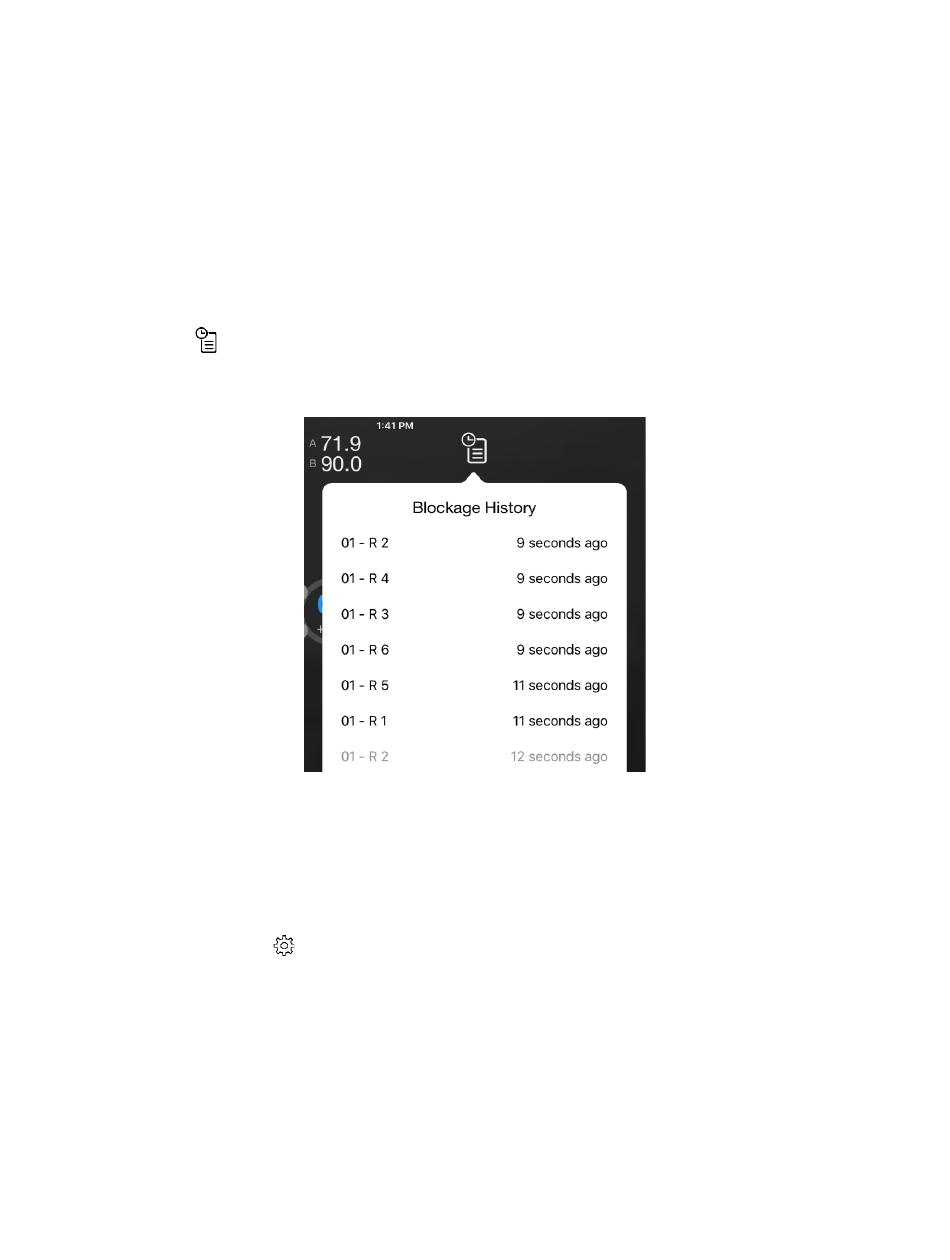

Figure 17: Blockage History screen
icon on the main Blockage screen.
