IntelligentAg Recon Blockage Plus Operator's Manual page 26

6. Change gateway serial number. Tap the gateway serial number next to Work Switch.
Then, select the new gateway serial number.
7. Re-configure the work switch method. Implement work switches use either the default
or inverted method. Toggle the Work Switch Inverted switch to change the method.
Refer to Section 2.3 for more information on these two methods.
NOTE: If you selected Raised for What mode is the implement currently in? during
initial setup, the work switch will automatically be configured for the inverted method.
8. Change the manifold view type. Tap Visualization Mode to change between manifold
view and row view.
9. Change run direction. In manifold view, ports are displayed by default in clockwise
order around the manifold, as shown in Figure 25. If you installed the sensors in
counterclockwise order around the manifold, you can change the way the ports are
displayed in the app. Next to Run Direction, tap the clockwise
symbol to change the run direction.
NOTE: Run direction cannot be changed for row view.

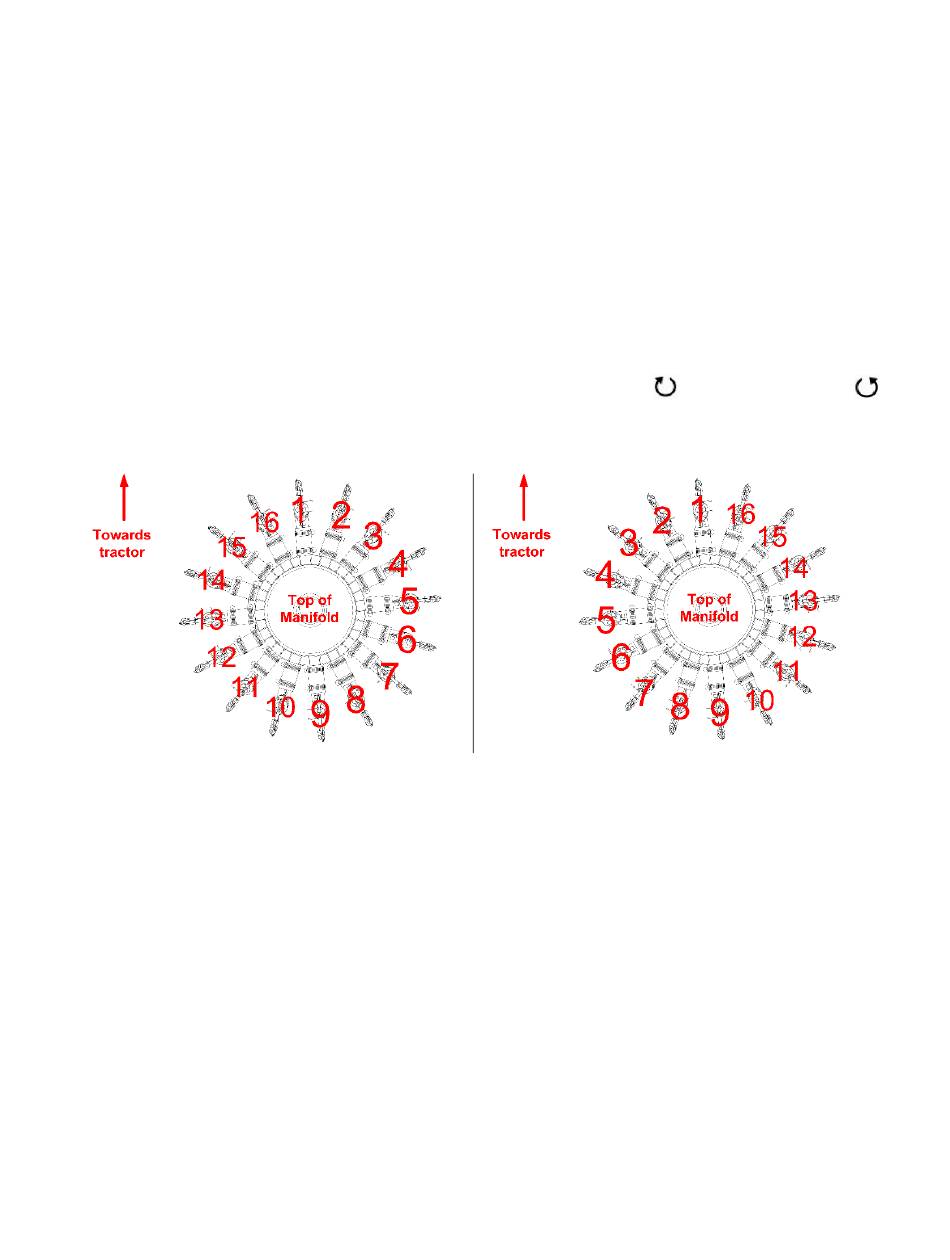

Figure 25: Default/clockwise order (left); counterclockwise order (right)
10. Re-configure the system or edit individual sections.
•
Tap Setup Wizard to re-configure the system from the beginning.
•
Tap Edit Config to edit the configuration of individual sections.
600890-000075, rev 1.0
Recon Blockage Plus™ Operator's Guide
or counterclockwise
Page 26 of 26
