PDA4000
HARDWARE INSTRUCTION MANUAL
PDA4000-AE-1.00
25/10/2011
PDC4000A Instruction Manual
1
Advertisement
Table of Contents
Related Manuals for Ponovo PDA4000
Summary of Contents for Ponovo PDA4000
- Page 1 PDA4000-AE-1.00 DATE: 25/10/2011 This manual is the publication of PONOVO POWER CO., LTD Any form of copy needs to be consent by PONOVO POWER CO., LTD This manual represents the technical status for the moment of publishing. The product information, description and specifications mentioned in the manual do not have any contact binding force and PONOVO POWER CO., LTD remains the right to make...
- Page 2 PDC4000A Instruction Manual Notes： In order to prevent static electricity, the tester must be connected to ground before testing. Please note personal and equipments safety while huge current is putout. Avoid short circuit or connecting load while testing. Avoid external voltage and current being added at the output of equipments. Avoid the equipment being wet by rain.
-
Page 3: Table Of Contents
PDC4000A Instruction Manual Content Precautions 1. General Description ....................4 2. Panel Description ....................4 3. Technical specifications ..................5 3.1 Output and Input ..................5 3.2 Binary input ....................6 3.3 Binary output ....................7 3.4 LED ......................7 3.5 Power input .................... -
Page 4: General Description
PDC4000A Instruction Manual 1. General Description PDC4000A consists of control unit and DC current output unit. The 100-4000A 0.2% high precision programmable DC current is used for characteristics testing in Special high-voltage DC converter station, DC current transformer, control and protection. 2. -
Page 5: Technical Specifications
PDC4000A Instruction Manual 3. Technical specifications 3.1 Output and Input Single channel output of group A and B Model PDC4000A Output model Single channel output of group A and group B Output range 100A~2000A Accuracy ±0.1% 100A 800A 2000A Port voltage 4.1V 4.0V 3.8V... -
Page 6: Binary Input
PDC4000A Instruction Manual 400A-0A 1000A-0A 2000A-0A 300A-0A 4000A-0A 99%-1% 50ms 50ms 50ms 50ms Falling time 50ms Group A-B connecting parallel Model PDC4000A Output model Group A-B connecting parallel Output range 100A~2000A Accuracy ±0.2% 100A 800A 2000A Port voltage 8.2V 8.0V 7.6V Precision of 100A... -
Page 7: Binary Output
PDC4000A Instruction Manual Figure 1.2 3.3 Binary output One pair；contact rating：250V DC/0.5A、250V AC / 8A 3.4 LED 4.8 inch High-brightness LCD and visible in glare. 3.5 Power input Rated input：Three-phase four-cable 380V 50Hz, input voltage range: -10%~+20% 50Hz. 3. 6 Dimension and weight Dimension：660mm x 425mm x 765mm（L*W*H）... -
Page 8: Choose Variables
PDC4000A Instruction Manual Entering the main menu, rotate ENTER button to select the test function and push the ENTER go to specified function. Push F1 in sub menu to go back the top menu. 4.2 Choose variables Entering the test menu, rotate ENTER button to select variable. The selected operation is displayed in white with background of black 4.3 Set test parameter Change variable parameter by pushing ENTER button and rotating it clockwise and... -
Page 9: Check And Save Test Report
PDC4000A Instruction Manual 4.5 Check and save test report 4.5.1 Check test report The saved test report can be checked by entering the report check interface. Ten reports can be displayed in each page and 30 reports can be stored. “1/3” means that there are three pages and the present is the first page. -
Page 10: Manual Test
PDC4000A Instruction Manual 5.1 Manual test This unit can put out current of A, B channels, A-B serial connection and A-B parallel connection. Current output of A,B，A-B serial connection can get 2000A maximum, and A-B parallel can put out 4000A current which can control current amplitude and output time manually and test opening time. -
Page 11: Channel B Output
PDC4000A Instruction Manual Set current and time, and output time will be shown real-timely after run. Lout will be shown which is the real output current collected in Channel A. The set current will be put out by pushing RUN button and it stops output when getting to the set time. -
Page 12: A-B Serial Connection
PDC4000A Instruction Manual All operations are the same to Channel A, in which lout means the real output current in Channel B. 5.1.3 A-B serial connection Connect the cables as followings: All operations are the same to Channel A. Lout means the real output current collected in Channel A. IA means the real output current collected in Channel A. -
Page 13: A-B Parallel Connection

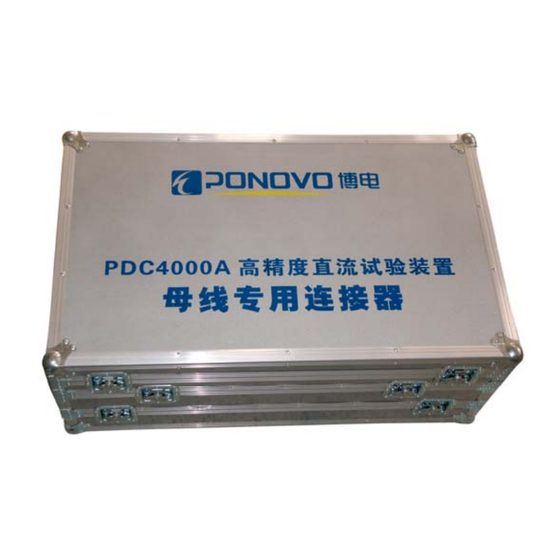

PDC4000A Instruction Manual 5.1.4 A-B parallel connection Connect the cables as followings: All operations are the same to Channel A. Lout means the real output current collected in Channel A and B. IA means the real output current collected in Channel A. IB means the real output current collected in Channel B. - Page 14 PDC4000A Instruction Manual 50 fixture：10 sets【It is used for testing bus cable with diameter of 50mm, seeing the installation below.】 30 bush：10 sets【It is used for testing bus cable with diameter of 30mm, seeing the installation below.】 4000A installation bus cable：2 stripes【It is used for connecting equipments and fixture, seeing the installation below.】...
- Page 15 PDC4000A Instruction Manual Tandem arrangement, Parallel row Power wires Yellow Yellow, green, red Blue green L1、 L2、 L3 （no phase Zero line Earth wire sequence） Fitting one：Bus dedicated connector...
- Page 16 PDC4000A Instruction Manual High-intensity air box is used for package box and there are three floors. In the first floor, there is 250 fixture. In the second floor, there are 50 and 30 fixture. In the third floor, there is testing bus cables.
- Page 17 PDC4000A Instruction Manual Fitting two: Standard cable bags There are two power wires, one ground wire, one crocodile clip, one tandem arrangement, two parallel rows, two wrenches and a set of screw nuts. Installation of test fixture 1.（Bus）Diameter is 250mm. First clean the bus where the fixtures are installed, and connect 250 fixture and bus cables showing in the picture.
- Page 18 PDC4000A Instruction Manual Connect the other end of bus cable with the equipment. 2.（Bus）Diameter is 50mm. First clean the bus where the fixtures are installed, and connect 50 fixture and bus cables showing in the picture. Fasten the connection with screw nut. If there are several bus cables, 4 bus cables with diameter of 50mm can be connected to the bus cables’...
- Page 19 PDC4000A Instruction Manual Connect the other end of bus cable with the equipment. 3.（Bus）Diameter is 30mm. First clean the bus where the fixtures are installed, and put bushing 30mm into fixture 50mm and the tested bus cables. Installed as the following: Fasten the connection with screw nut.
- Page 20 PDC4000A Instruction Manual Connect the other end of bus cable with the equipment.
