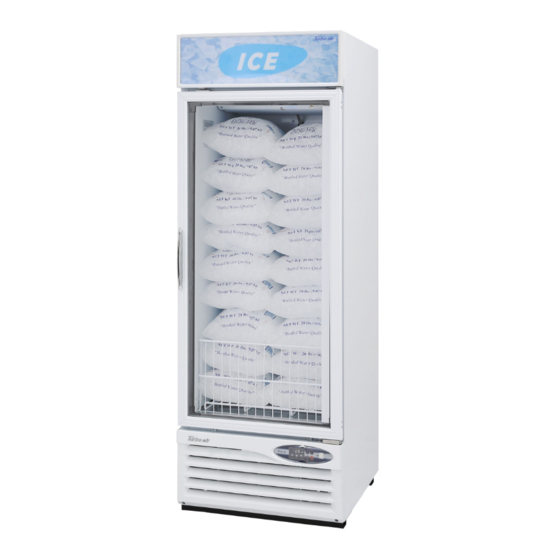

GLASS DOOR ICE MERCHANDISERS
Please read this manual completely before attempting to install or operate this equipment!
An asterisk(*) in a model number means the external finish of cabinet, black & white color,
and each model is identical except the aesthetic difference which doesn't affect the performance.

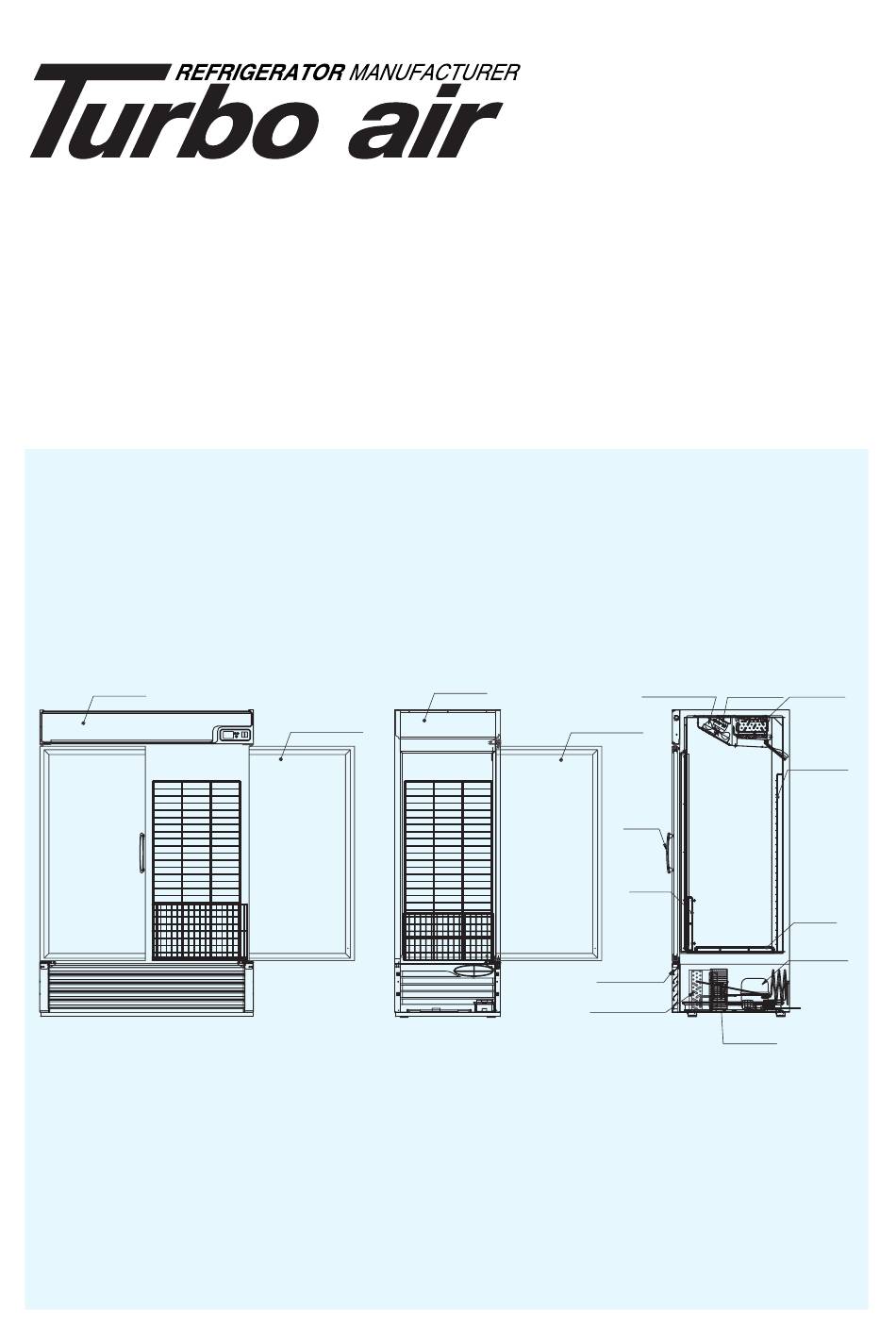

SIGN PANEL
FRONT VIEW
SIGN PANEL
DOOR ASSEMBLY
FRONT VIEW
Model No. :
TGIM-23*
TGIM-49*
EVAPORATOR FAN
EVAPORATOR
MOTOR BLADE
FAN MOTOR
DOOR ASSEMBLY
DOOR
HANDLE
SHELF(F)
BOTTOM GRILLE
CONDENSER COIL
CONDENSER
FAN MOTOR
SIDE VIEW
EVAPORATOR
COIL
BACK SPACER
SHELF(U)
COMPRESSOR
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Turbo Air TGIM-23 Series
Summary of Contents for Turbo Air TGIM-23 Series
- Page 1 GLASS DOOR ICE MERCHANDISERS Please read this manual completely before attempting to install or operate this equipment! An asterisk(*) in a model number means the external finish of cabinet, black & white color, and each model is identical except the aesthetic difference which doesn't affect the performance. Model No.
-
Page 2: Table Of Contents
(110-120)V~ / 60Hz R-134a 376lbs TGIM-49* 11.8A / 1160W(defrosting input) (110-120)V~ / 60Hz R-404A 587lbs SERIAL NUMBER The serial number can be found on the data label located inside the unit. Please retain this serial number for service purposes. Turbo air... -
Page 3: Notice To Customer / Installation
- Turn leg levelers counter clockwise as necessary in order to properly level cooler. 6. LEVELING - Please make sure that the unit levels from the front to the back and side to side. 7. Unit should be on dedicated outlet. Turbo air... -
Page 4: Cleaning
- Turn ‘off’ the power switch before disconnecting the power cord, whenever performing maintenance functions or cleaning the refrigerated cabinet. - Compressor warranties are void if compressor burns out due to low voltage. 2. RE-STARTING - If disconnected, wait for 5 minutes before re-starting. Turbo air... -
Page 5: Basic Operation
6. Evaporator fan motor will run after all doors are completely closed. 7. Good air flow in freezer is critical. Be careful when stationing the product so that it does not press against the back wall,and is at least 4 inches away from the evaporator compartment. Turbo air... - Page 6 DISPLAY PANEL OF FREEZER (TGIM-23*) TEMP CONTROL BUTTON (SEE PAGE 8) LAMP SWITCH INTERIOR TEMP INDICATOR (SEE PAGE 9) POWER SWITCH TEMPERATURE Turbo air LAMP POWER T.F. DOOR TURBO FREEZE TURBO FREEZE DOOR OPENING FAN RUNNING TURBO FREEZE BUTTON (SEE PAGE 8)
- Page 7 DISPLAY PANEL OF FREEZER (TGIM-49*) TEMP CONTROL BUTTON (SEE PAGE 8) LAMP SWITCH INTERIOR TEMP INDICATOR (SEE PAGE 9) POWER SWITCH LAMP POWER TEMPERATURE T.F. DOOR TURBO FREEZE TURBO FREEZE DOOR OPENING FAN RUNNING TURBO FREEZE BUTTON (SEE PAGE 8) Turbo air...
- Page 8 3. Once all frost is eliminated, the temperature will continue to rise until it reaches 42.8˚F (6˚C). When this temperature is detected by the defrost limit control, the defrost control changes to refrigeration mode. 4. The panel displays “ ” during the defrost cycle. Turbo air...
- Page 9 3. 1 minute after it is opened, it will sound beep again five (5) times. 4. After 5 minutes of staying open, the beeping sound will ring continuously. 5. Once the door is closed, the beeping noise will stop. Turbo air...
-
Page 10: Before Requesting Service
• The door gasket has come out. The following are not malfunctions: • A water-flowing sound can be heard when the compressor stops. This is the sound of REFRIGERANT flowing. • The compressor does not run against defrosting function. Turbo air... - Page 11 Additional Three Year Compressor Warranty... In addition to the two (2) year warranty stated adove, Turbo Air warrants its hermetically sealed compressor to be free from de fects in both material and workmanship under normal and proper use and maintenance service for a period of three (3) additional years from the date of original installation, but not to exceed five (5) years and three(3) months after shipment from the manufacturer.
-
Page 12: Warranty
TURBO AIR UNIT installed in my place of business mailed immediately (Installation date) after installation The above warranties are in effect from this installation date, or 90 days after shipment from TURBO AIR, whichever comes first. date for warranty to MANUFACTURING COMPANY be in effect. - Page 13 4184 CONANT ST LONG BEACH, CA 90808 U.S.A & Canada Toll Free 800-627-0032 For Service 800-381-7770 TEL: 310-900-1000 FAX: 310-900-1077 http://www.turboairinc.com...
