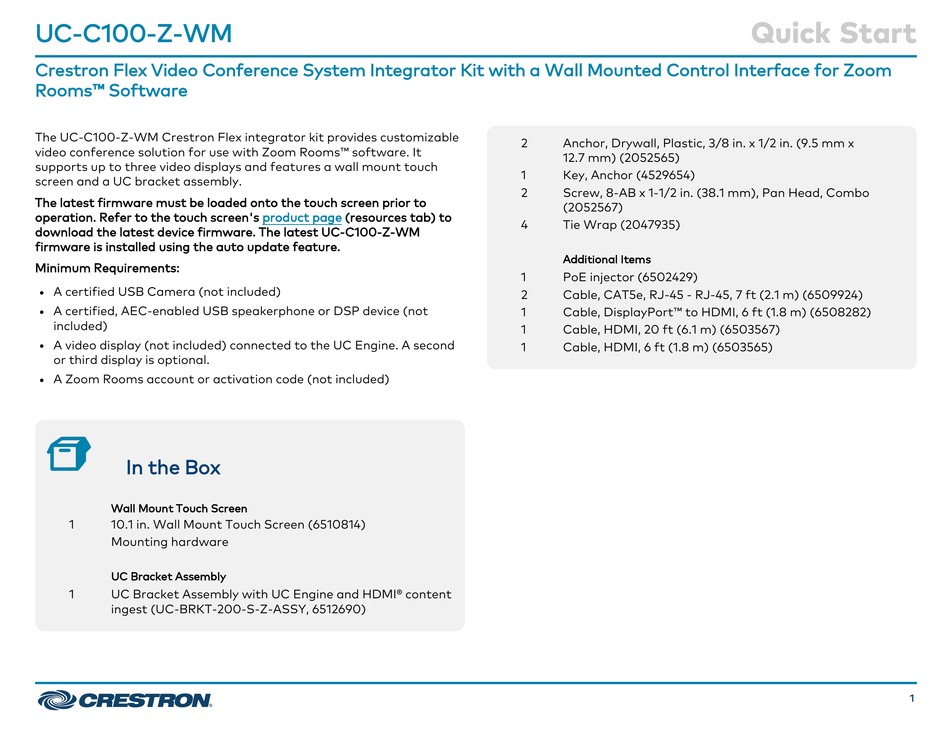

Crestron UC-C100-Z-WM Quick Start Manual

UC-C100-Z-WM
Crestron Flex Video Conference System Integrator Kit with a Wall Mounted Control Interface for Zoom
Rooms™ Software

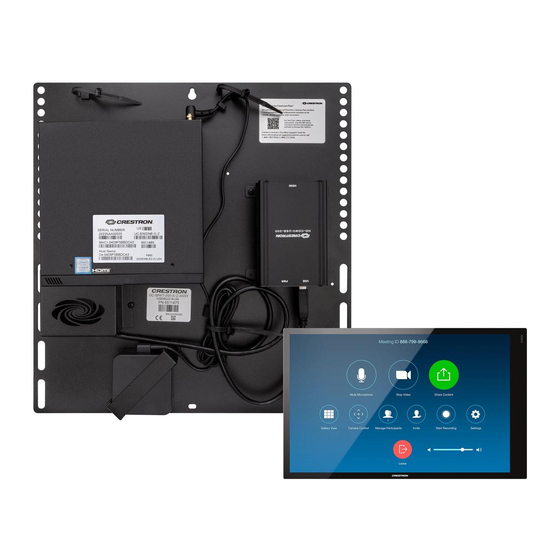

The UC-C100-Z-WM Crestron Flex integrator kit provides customizable
video conference solution for use with Zoom Rooms™ software. It
supports up to three video displays and features a wall mount touch
screen and a UC bracket assembly.
The latest firmware must be loaded onto the touch screen prior to
operation. Refer to the touch screen's
download the latest device firmware. The latest UC-C100-Z-WM
firmware is installed using the auto update feature.
Minimum Requirements:
A certified USB Camera (not included)
l
A certified, AEC-enabled USB speakerphone or DSP device (not
l
included)
A video display (not included) connected to the UC Engine. A second
l
or third display is optional.
A Zoom Rooms account or activation code (not included)
l
In the Box
Wall Mount Touch Screen
1 10.1 in. Wall Mount Touch Screen (6510814)
Mounting hardware
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® content
ingest (UC-BRKT-200-S-Z-ASSY, 6512690)
product page (resources tab) to
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1 Key, Anchor (4529654)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 PoE injector (6502429)
2 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, HDMI, 20 ft (6.1 m) (6503567)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
Quick Start
1
