Crestron UC-C160-T Quick Start

UC-C160-T
Crestron Flex Video Conference System Integrator Solution for Microsoft Teams™
The Crestron® UC-C160-T Video Conference System Integrator Solution is used to build a small
to large Skype® for Business or Microsoft Teams™ conference room system that allows the
installer to select audio and camera hardware dictated by the room.

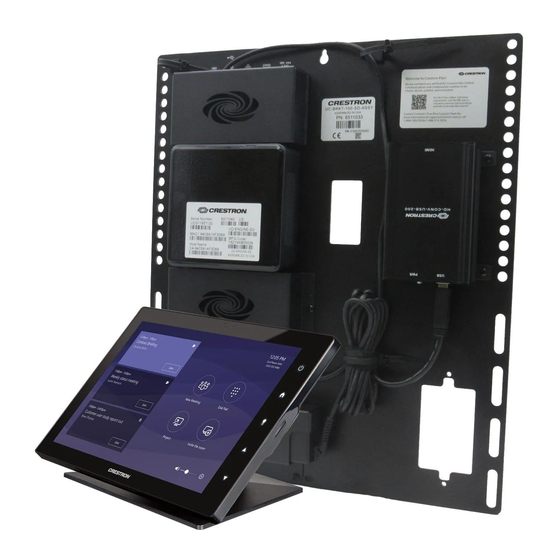

The UC-C160T comes with a UC-BRKT-100-ASSY Wall Bracket Assembly which contains an
HD-CONV-USB-200 HDMI® to USB 3.0 Converter, UC-ENGINE, and required mounting
hardware. This solution also comes with the required cables for the installation.
Check the Box
Item
UC-C160-T
CBL-CAT5E-7, 7 ft (2.1 m) CAT5e Cable (P/N 6509924)
CBL-HD-THIN-HS-6, 6 ft (1.8 m), Thin HDMI® Cable (P/N 6508218)
CBL-HD-20, 20 ft (6.1 m) HDMI Cable (P/N 6503567)
CBL-USBC-HD-9, 9 ft (2.7 m) USB 3.0 to HDMI converter cable (P/N 6510718)
CCS-UCA-KB-USB Wireless Keyboard w/Touchpad (P/N 6509547)
DM-CBL-ULTRA-PC-50 DigitalMedia™ Ultra Patch Cable, 50 ft (15.2 m) (P/N 6507641)
PWE-4803RU PoE Injector (P/N 6502429)
TSW-1060-B-S 10.1 in. Touch Screen, Black Smooth (P/N 6507651)
TSW-1060-TTK-B-S Tabletop Kit for TSW-1060, Black Smooth (P/N 6507729)
UC-BRKT-100-ASSY Wall Bracket Assembly (includes HD-CONV-USB-200,
CBL-MDP-HD-0.5, UC-CONN-HD, and UC-ENGINE) (P/N 6510636)
Additional Requirements
The following items are required to complete the system.
• A Microsoft Teams or Skype for Business (SfB) account
• A Microsoft Teams or SfB-compliant USB camera
• A Microsoft Teams or SfB-compliant, AEC enabled USB speakerphone device such as a
Crestron Avia DSP, UC-SB1, UC-SB1-CAM, or other third-party equipment.
• A video display, to be connected to the UC-ENGINE
• #1 Phillips head screwdriver
• Drill with a 5/16 in. bit (required for use with mounting anchors)
NOTE: The camera and speakerphone devices should be certified for operation with Microsoft
Teams or Skype for Business. For a list of devices certified for use with Microsoft Teams, visit
https://products.office.com/en-us/microsoft-teams/across-devices/devices. For a list of devices
certified for use with Skype for Business, visit https://partnersolutions.skypeforbusiness.com/
solutionscatalog/personal-peripherals-pcs.
Optional Items
A secondary display can be connected to the UC-ENGINE.
Install the Wall Bracket Assembly
The wall bracket assembly can be installed on a wall behind a display device, or attached to
the rear of the display device. The wall bracket assembly includes mounting slots on both side
edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the
display mounting plate. Additional mounting holes are provided on each side for other mounting
locations. Centerline mounting holes are also provided for attachment to the building structure.
Integrated, reusable cable tie wraps manage cable runs between the wall bracket and peripheral
devices.

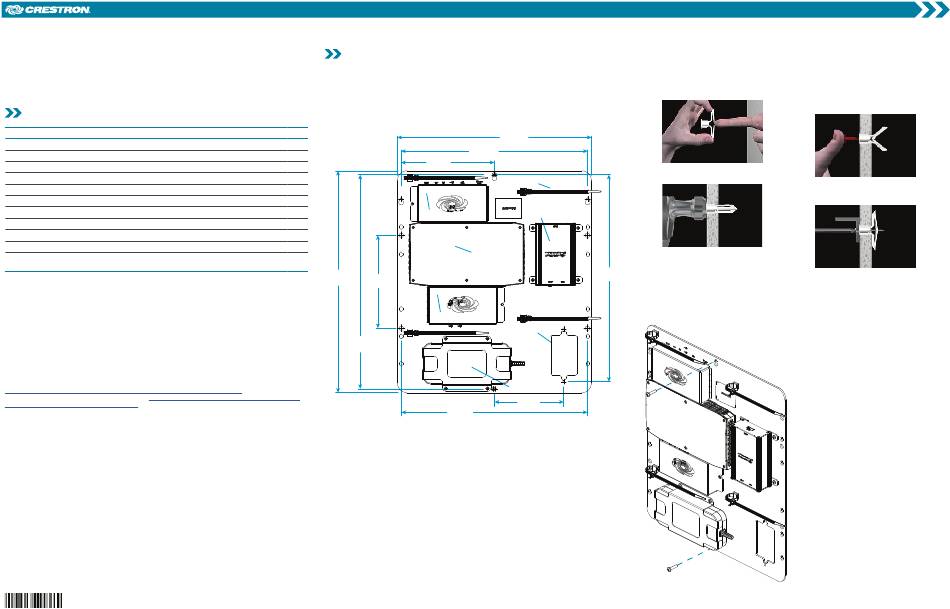

Dimensions and Callouts
Qty
1
2
7.00 in.
(178 mm)
1
1
1
Connector Cover
1
1
1
1
1
1
16.00 in.
6.70 in.
(406 mm)
(170 mm)
Connector Cover
15.44 in.
(392 mm)
13.42 in.
(341 mm)
NOTES:
• The integrated cable tie wraps are reusable. Take care to avoid damage to the cable tie
wraps.
• The wall bracket assembly has an opening and pass through screw holes for placement
over a US electrical wall box that can be covered by a decorative wall plate. If the wall
plate opening will be positioned over an electrical wall box, longer screws will be needed
to secure the decorative wall plate to the electrical box. Do not secure the wall bracket
assembly with the wall plate opening screws.
When mounting on a wall, the wall bracket assembly should be anchored to the wall. The screws
and anchors included with the assembly are best suited for surfaces with 3/8 in. to 3/4 in.
thickness. To use the included anchors, perform the following procedure.
14.00 in.
(356 mm)
13.45 in.
(342 mm)
Reusable Cable Tie Wrap (x4)
HD-CONV-USB-200
UC-ENGINE
14.92 in.
(378 mm)
Install the Wall Bracket Assembly On a Wall
Wall Plate Opening
Power Pack
5.00 in.
(127 mm)
1. Drill a 5/16 in. pilot hole. 4. Insert the included anchor key to pop the
anchor open and lock it behind a hollow
2. Fold the anchor in the middle and pinch
wall.
the ends together.
WARNING:
key.
3. Insert the anchor in the hole and tap flush
with the wall.
5. Drive the screw part of the way into the
anchor, leaving approximately 1/4 in. of
the screw exposed.
6. Repeat steps 1 through 5 for the other
anchor.
7. Place the wall bracket assembly on the
screws and hand tighten the screws until
the wall bracket is secured to the wall.
Quick Start
Do not force or hammer the
