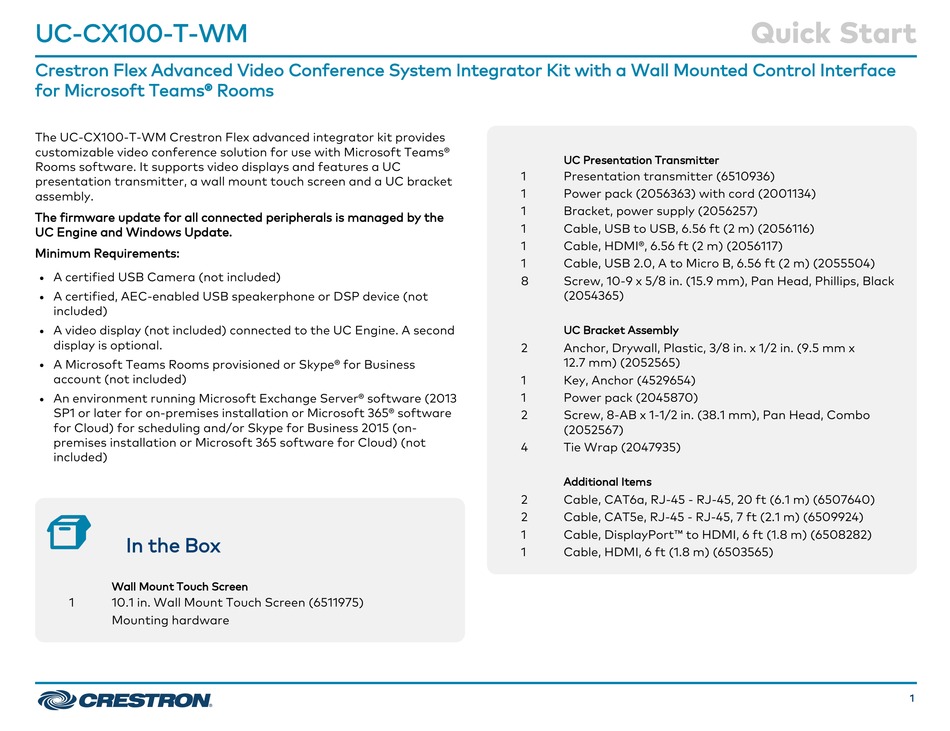

Crestron UC-CX100-T-WM Quick Start Manual

UC-CX100-T-WM

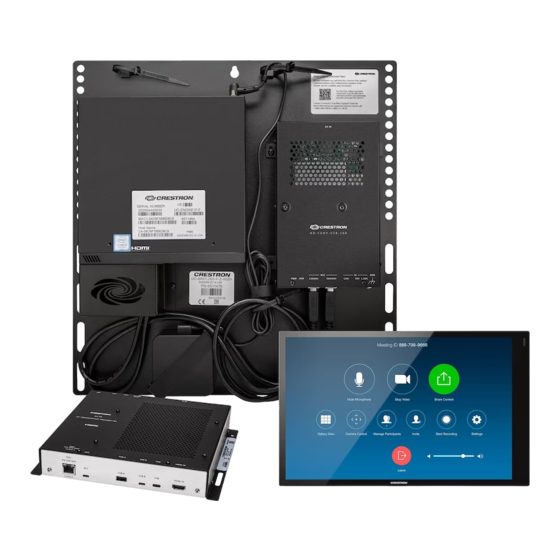

Crestron Flex Advanced Video Conference System Integrator Kit with a Wall Mounted Control Interface
for Microsoft Teams® Rooms
The UC-CX100-T-WM Crestron Flex advanced integrator kit provides
customizable video conference solution for use with Microsoft Teams®
Rooms software. It supports video displays and features a UC
presentation transmitter, a wall mount touch screen and a UC bracket
assembly.
The firmware update for all connected peripherals is managed by the
UC Engine and Windows Update.
Minimum Requirements:
A certified USB Camera (not included)
l
A certified, AEC-enabled USB speakerphone or DSP device (not
l
included)
A video display (not included) connected to the UC Engine. A second
l
display is optional.
A Microsoft Teams Rooms provisioned or Skype® for Business
l
account (not included)
An environment running Microsoft Exchange Server® software (2013
l
SP1 or later for on-premises installation or Microsoft 365® software
for Cloud) for scheduling and/or Skype for Business 2015 (on-
premises installation or Microsoft 365 software for Cloud) (not
included)
In the Box
Wall Mount Touch Screen
1 10.1 in. Wall Mount Touch Screen (6511975)
Mounting hardware
UC Presentation Transmitter
1 Presentation transmitter (6510936)
1 Power pack (2056363) with cord (2001134)
1 Bracket, power supply (2056257)
1 Cable, USB to USB, 6.56 ft (2 m) (2056116)
1 Cable, HDMI®, 6.56 ft (2 m) (2056117)
1 Cable, USB 2.0, A to Micro B, 6.56 ft (2 m) (2055504)
8 Screw, 10-9 x 5/8 in. (15.9 mm), Pan Head, Phillips, Black
(2054365)
UC Bracket Assembly
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1 Key, Anchor (4529654)
1 Power pack (2045870)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
2 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
2 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
Quick Start
1
