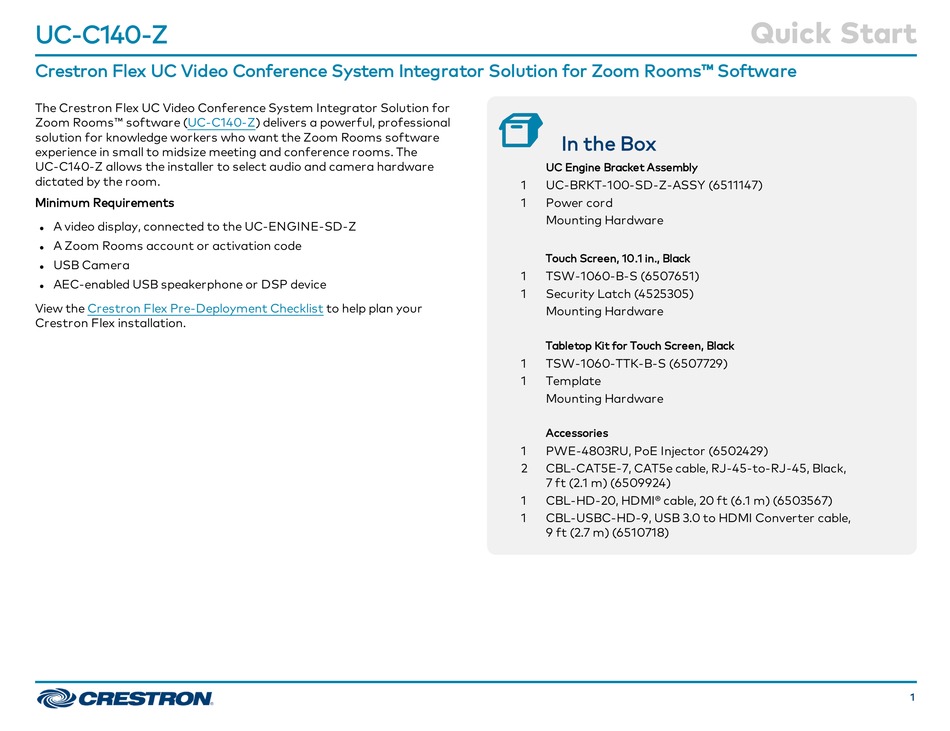

Crestron Flex UC-C140-Z Quick Start Manual

UC-C140-Z
Crestron Flex UC Video Conference System Integrator Solution for Zoom Rooms™ Software
The Crestron Flex UC Video Conference System Integrator Solution for
Zoom Rooms™ software (UC-C140-Z) delivers a powerful, professional
solution for knowledge workers who want the Zoom Rooms software
experience in small to midsize meeting and conference rooms. The
UC-C140-Z allows the installer to select audio and camera hardware
dictated by the room.
Minimum Requirements
A video display, connected to the UC-ENGINE-SD-Z
l
A Zoom Rooms account or activation code
l
USB Camera
l
AEC-enabled USB speakerphone or DSP device
l
View the Crestron Flex Pre-Deployment Checklist
Crestron Flex installation.
to help plan your

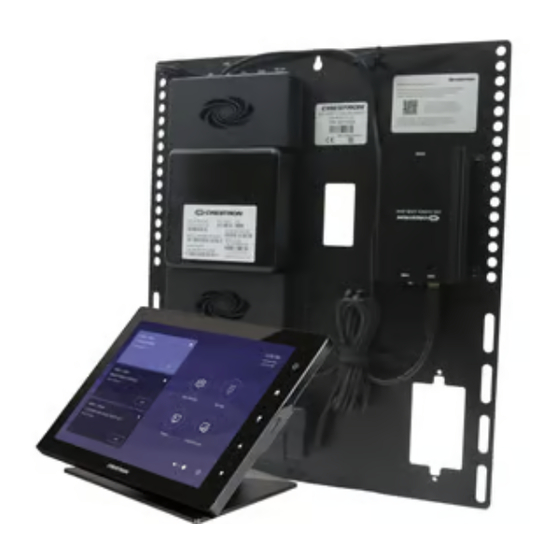

In the Box
UC Engine Bracket Assembly
1 UC-BRKT-100-SD-Z-ASSY (6511147)
1 Power cord
Mounting Hardware
Touch Screen, 10.1 in., Black
1 TSW-1060-B-S (6507651)
1 Security Latch (4525305)
Mounting Hardware
Tabletop Kit for Touch Screen, Black
1 TSW-1060-TTK-B-S (6507729)
1 Template
Mounting Hardware
Accessories
1 PWE-4803RU, PoE Injector (6502429)
2 CBL-CAT5E-7, CAT5e cable, RJ-45-to-RJ-45, Black,
7 ft (2.1 m) (6509924)
1 CBL-HD-20, HDMI® cable, 20 ft (6.1 m) (6503567)
1 CBL-USBC-HD-9, USB 3.0 to HDMI Converter cable,
9 ft (2.7 m) (6510718)
Quick Start
1
