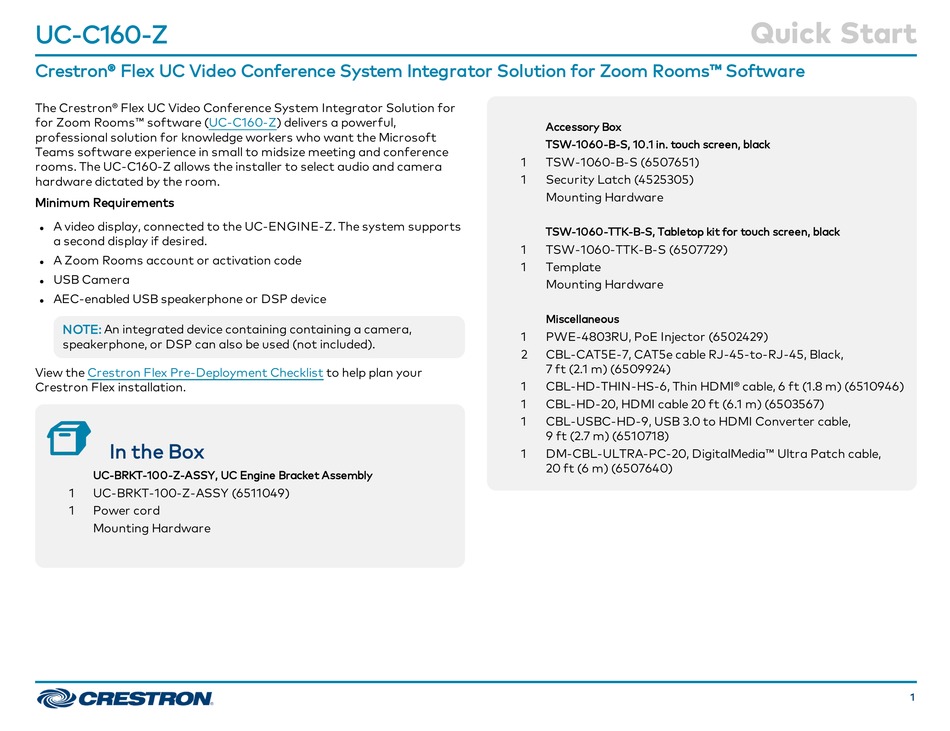

Crestron UC-C160-Z Quick Start Manual

UC-C160-Z
Crestron® Flex UC Video Conference System Integrator Solution for Zoom Rooms™ Software
The Crestron® Flex UC Video Conference System Integrator Solution for
for Zoom Rooms™ software (UC-C160-Z) delivers a powerful,
professional solution for knowledge workers who want the Microsoft
Teams software experience in small to midsize meeting and conference
rooms. The UC-C160-Z allows the installer to select audio and camera
hardware dictated by the room.
Minimum Requirements
A video display, connected to the UC-ENGINE-Z. The system supports
l
a second display if desired.
A Zoom Rooms account or activation code
l
USB Camera
l
AEC-enabled USB speakerphone or DSP device
l
NOTE: An integrated device containing containing a camera,
speakerphone, or DSP can also be used (not included).
View the Crestron Flex Pre-Deployment Checklist
Crestron Flex installation.
In the Box

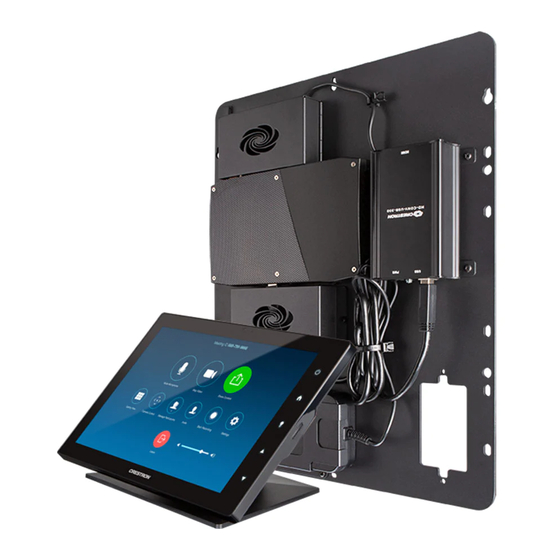

UC-BRKT-100-Z-ASSY, UC Engine Bracket Assembly
1 UC-BRKT-100-Z-ASSY (6511049)
1 Power cord
Mounting Hardware
to help plan your
Accessory Box
TSW-1060-B-S, 10.1 in. touch screen, black
1 TSW-1060-B-S (6507651)
1 Security Latch (4525305)
Mounting Hardware
TSW-1060-TTK-B-S, Tabletop kit for touch screen, black
1 TSW-1060-TTK-B-S (6507729)
1 Template
Mounting Hardware
Miscellaneous
1 PWE-4803RU, PoE Injector (6502429)
2 CBL-CAT5E-7, CAT5e cable RJ-45-to-RJ-45, Black,
7 ft (2.1 m) (6509924)
1 CBL-HD-THIN-HS-6, Thin HDMI® cable, 6 ft (1.8 m) (6510946)
1 CBL-HD-20, HDMI cable 20 ft (6.1 m) (6503567)
1 CBL-USBC-HD-9, USB 3.0 to HDMI Converter cable,
9 ft (2.7 m) (6510718)
1 DM-CBL-ULTRA-PC-20, DigitalMedia™ Ultra Patch cable,
20 ft (6 m) (6507640)
Quick Start
1
