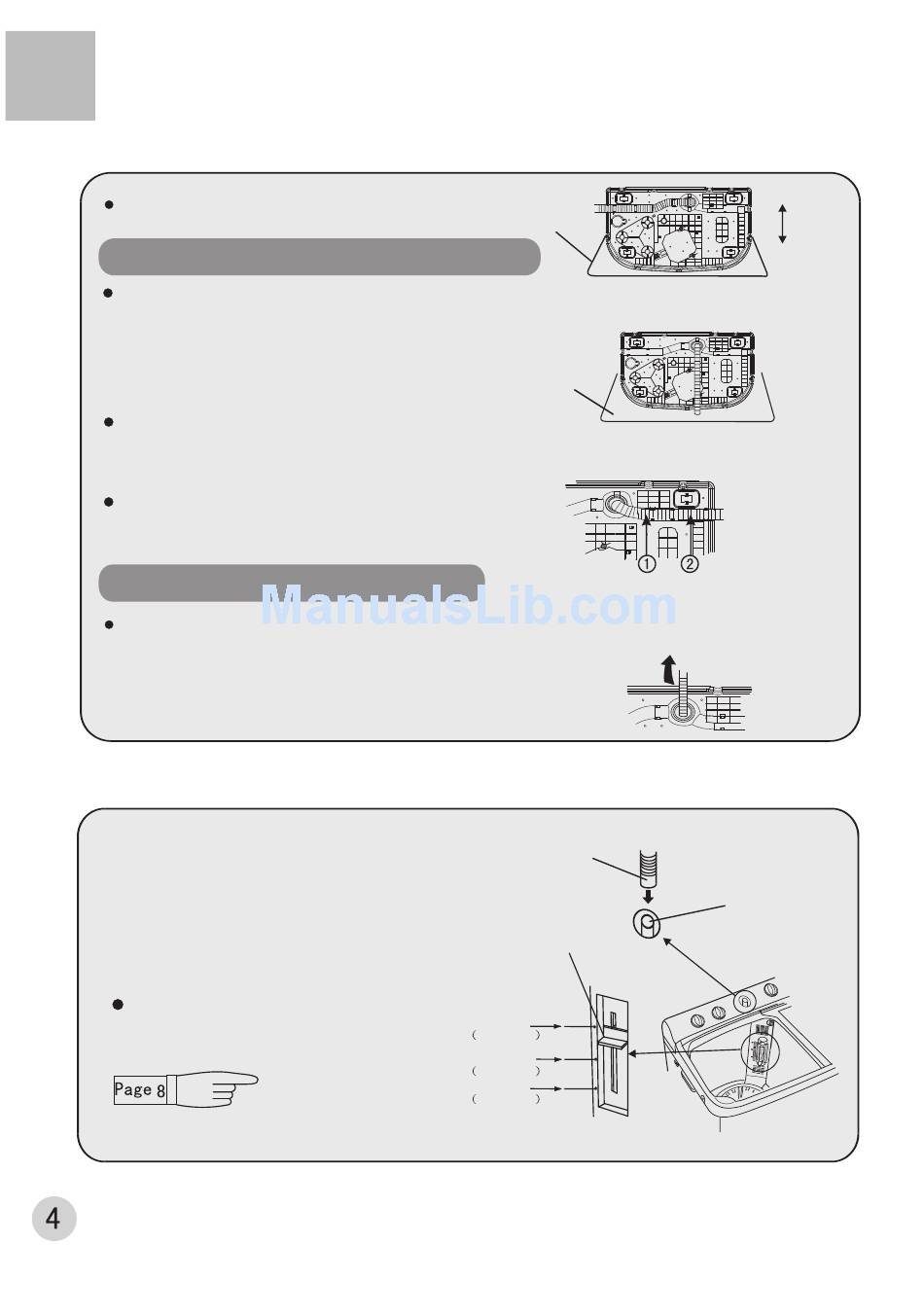

How to change the direction of the drain hoses

Figure 1 indicates the ex factory installation
position of the drain hose.
Extend the drain hose from the side of wash tub
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Take the hose out of the fixing groove.
(See to Figure 2).
Embed the drain hose into the groove along the side
of thewash tub in the order of (1)~(2), heading for the
side of the wash tub. (See to Figure 3).
Embed the drain hose into the groove with
hands. Take care not to damage the drain
hose in fastening the fixing clamp.
Extend the drain hose from the rear side
Take out the drain hose from the fixing groove. Extend it from
the rear side as per the direction of the arrow. (When the drain
hose is extended from the rear side, it can be hung on the
point for drain hose at the two sides of the cabinet.)
(See to Figure 4).

Install the water inlet hose; Select the water level

Insert the water inlet hose into the water-filling
entrance on the control panel directly. (pull it
out to dismantle it)
Select water level according to the
quantity of the laundries.
Adjust the water level adjusting
lever to desired water level line.
Soft item
Soft item
Embed into the
groove in turn
Water inlet hose
Water level
indicator
High
High
about 39L
Medium
Medium
about 30L
Low
Low
about 24L
Before Using
Before Using
Back
Front
Figure 1
Figure 2
Extend to the
wash tub side
Figure 3
Figure 4
Wash water-filling
entrance
