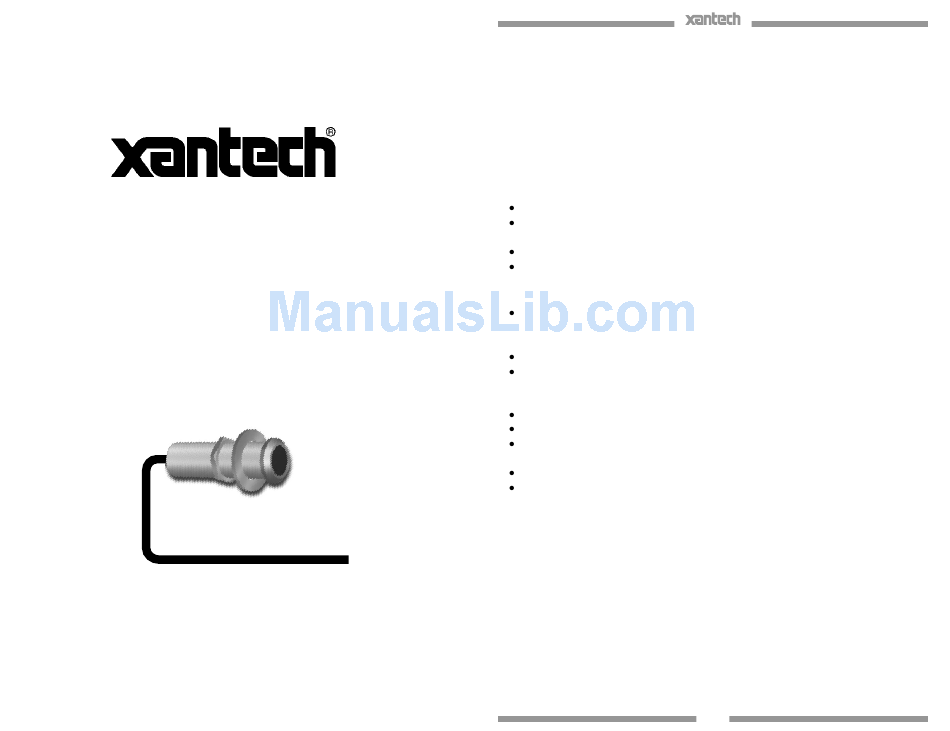

INSTALLATION INSTRUCTIONS
MODEL
ML85
Micro Link™ Peep-Hole Style
Plasma\LCD\LED\CFL Friendly
IR Receiver
DESCRIPTION

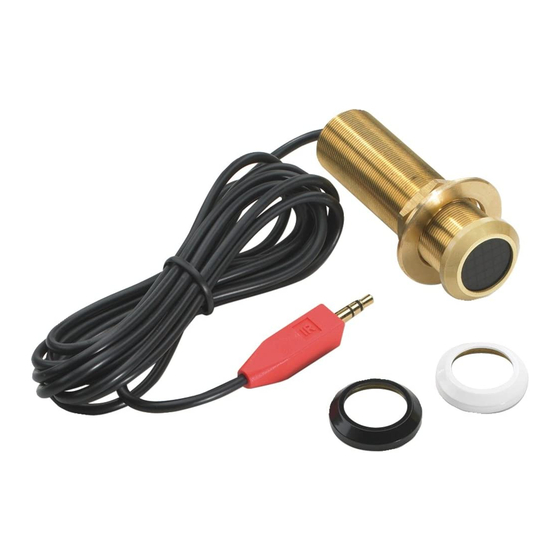

The Micro Link IR Receiver is a small peep-hole style infrared repeater
assembly. The Micro Link IR Receiver is equipped with a 7-foot cable and
a 3.5mm stereo mini plug, which is plugged directly into the "IR RCVR"
jack on the connecting block, such as the models 789-44, CB60, and 791-
44. The Micro Link IR Receiver is primarily intended for use in installations
where the connecting block is within reach of its 7-foot cable – as when
installing the Micro Link IR Receiver in a cabinet where the controlled
equipment is behind closed doors.
FEATURES
Small size; mounts in 1/2" diameter hole. 2 inches deep (50mm).
Quick-Connect 3.5mm Stereo Mini Plug on 7ft. cable for direct plug-in
to Xantech Connecting Blocks.
Works in normal 3-wire mode (12VDC, IR, GND).
Green Talkback LED for System Verification.
SPECIFICATIONS
Infrared modulation frequency bandwidth: 30 – 60 kHz.
IR reception range: Up to 80 feet, depending on remote control output
strength and ambient conditions.
Reception angle: 55 degrees off axis for 50% range reduction.
Cable requirements: 3-conductor. Use 24 gauge up to 200', 22 gauge
up to 600' 20 gauge up to 2000', 18 gauge up to 5000' – unshielded
OK.
Max. transmission length: 1 mile using 18 gauge wire.
Maximum current output: 100mA
Drives IR emitters through Xantech Connecting Blocks, Controllers,
etc.
Dimensions: 1/2" diameter x 2" deep (13mm x 50mm).
Power requirements: +12VDC, 20mA.
