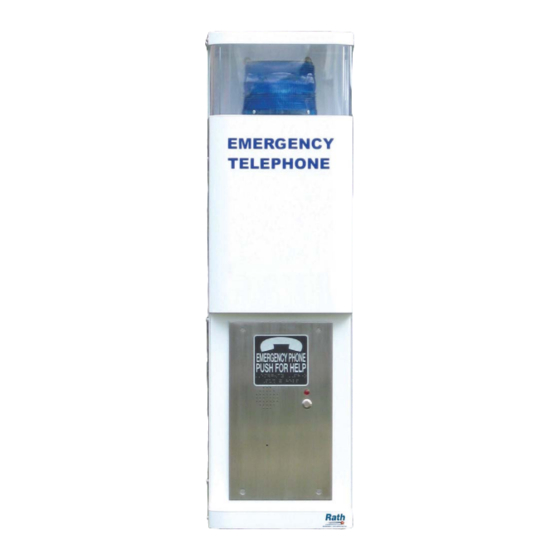

Emergency call station
Hide thumbs Also See for 2100-CPL Series:

Advertisement

Installation
& Operations
Manual
Emergency
Call Station
2100-CPL Series
N56 W24720 N. Corporate Circle
Sussex, WI 53089
RP8500CPL
866-850-8854
262-246-4828 (fax)
Ver. 2
Made in the USA
www.rathsecurity.com
2 Year Warranty
12/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2100-CPL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rath 2100-CPL Series

  • Page 1 Installation & Operations Manual Emergency Call Station 2100-CPL Series N56 W24720 N. Corporate Circle Sussex, WI 53089 RP8500CPL 866-850-8854 262-246-4828 (fax) Ver. 2 Made in the USA www.rathsecurity.com 2 Year Warranty 12/13...
  • Page 2 Welcome to Rath Security Thank you for purchasing Rath’s Emergency Call Station. We have been manufacturing phones for over 35 years and are the largest Emergency Phone manufacturer in North America. We take great pride in our products, service, and support. Our Emergency Phones and Towers are of the highest quality.
  • Page 3 Call Station Installation: To comply with Americans with Disabilities (ADA) requirements, the Call Station must be mounted so that the push button is less than 48” above the ground. Rath also recommends a minimum of two people for installation and set-up.
  • Page 4 Wiring: Enter Record 12VDC Play / Pause to Constant Stop Stobe Annunciator Audio Connector 10 conductor cable to front plate Wago Connector 10 contact Phone line connect with 110 VAC Water proof connections Power: Once the electrical is “live”, the phone needs to be programmed and tested. Reconnect the Wago connectors that attach the front plate to the NEMA 4 box.
  • Page 5: Programming The Phone

    Programming the Phone: 1. You can program the phone on-site or remotely. 2. If programming on-site, open back access panel located directly behind front stainless steel face plate. Use the #10 spanner bit provided to remove the 6 security screws. 3.
  • Page 6: Adjusting The Volume

    Reinstall the cover on the NEMA enclosure and secure the rear access panel. Suggested Ongoing Testing of the Phone: Rath recommends that the Emergency Call Station be tested and maintained on a monthly basis to ensure proper operation. For testing, follow the procedure outlined in “Testing of the Phone”.
  • Page 7: Troubleshooting

    Troubleshooting: Problem Possible Cause & Fixes No dial tone when the • Check to make sure the phone line is connected. button is pushed: • Verify dial-tone and voltage on phone line going into unit. Audio is low from the •...
  • Page 8 Rath Call Station 8” 1/2” 9/16” 3” ” 1/4” 1/4” 36” 1/4” 3” 3” 12” 11” 9” (Back) (Bottom of Call Station to Center Button) Pg. 7...
