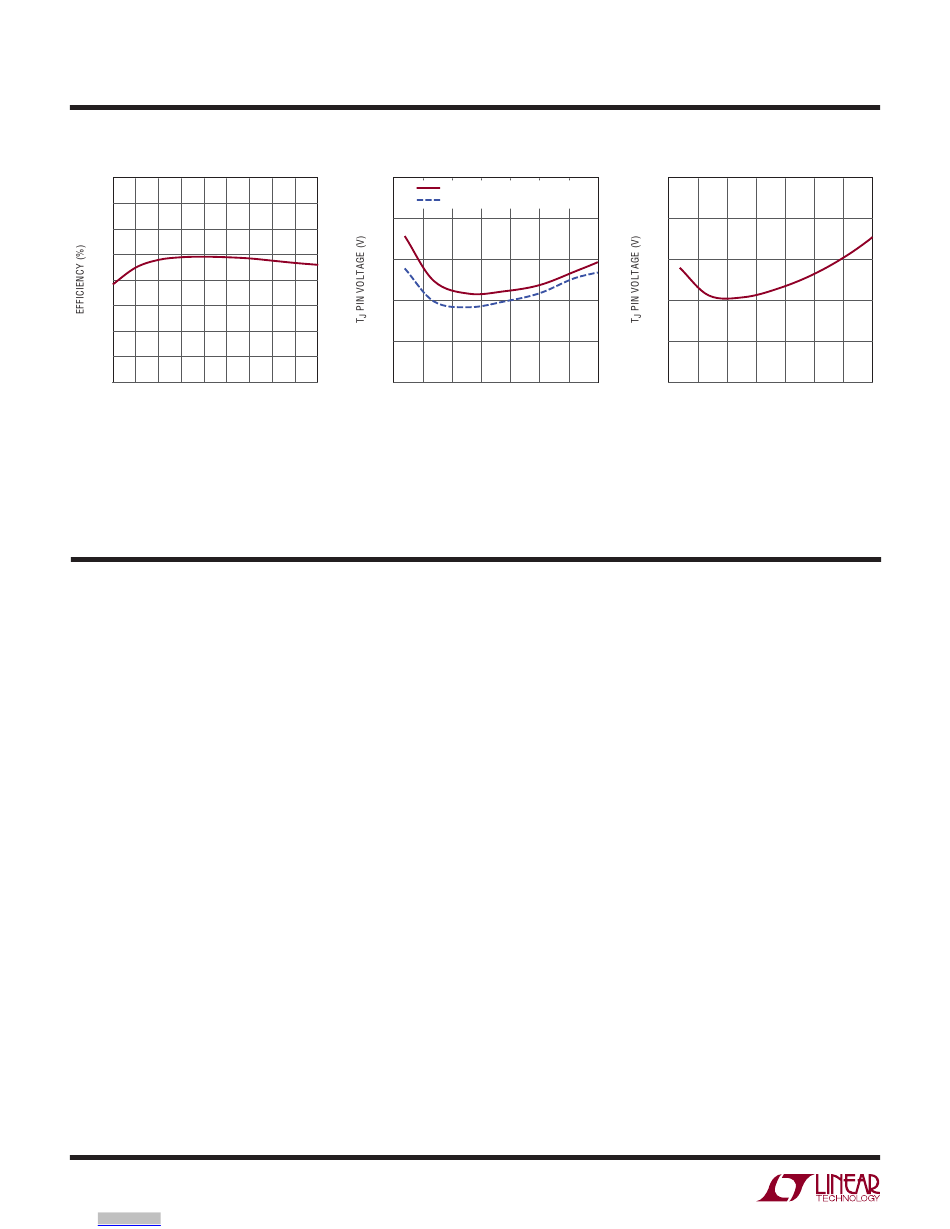

Figure 2. Dual Channel Efficiency
at V = 24V, f = 300kHz
IN

QUICK START PROCEDURE

Demo circuit 1537A is easy to set up to evaluate the
performance of the LT3992. Refer to Figure 5 for proper
measurement equipment setup and follow the procedure
below:
NOTE. When measuring the input or output voltage
ripple, care must be taken to avoid a long ground lead
on the oscilloscope probe. Measure the input or output
voltage ripple by touching the probe tip directly across
the VIN or VOUT and GND terminals. See Figure 6 for
proper scope probe technique.
1. Place JP1 on the SINGLE position.
2. With power off, connect the input power supply to VIN1
and GND. (Connect another input power supply to VIN2
and GND if DUAL is selected.)
3. Turn on the power at the input.
NOTE. Make sure that the input voltage does not exceed
60V (Due to part selection on D3 and D4, 60V is for
transient purpose. Continuous operation can be avail-
able after D3 and D4 are replaced with higher voltage
rated schottky diodes).
