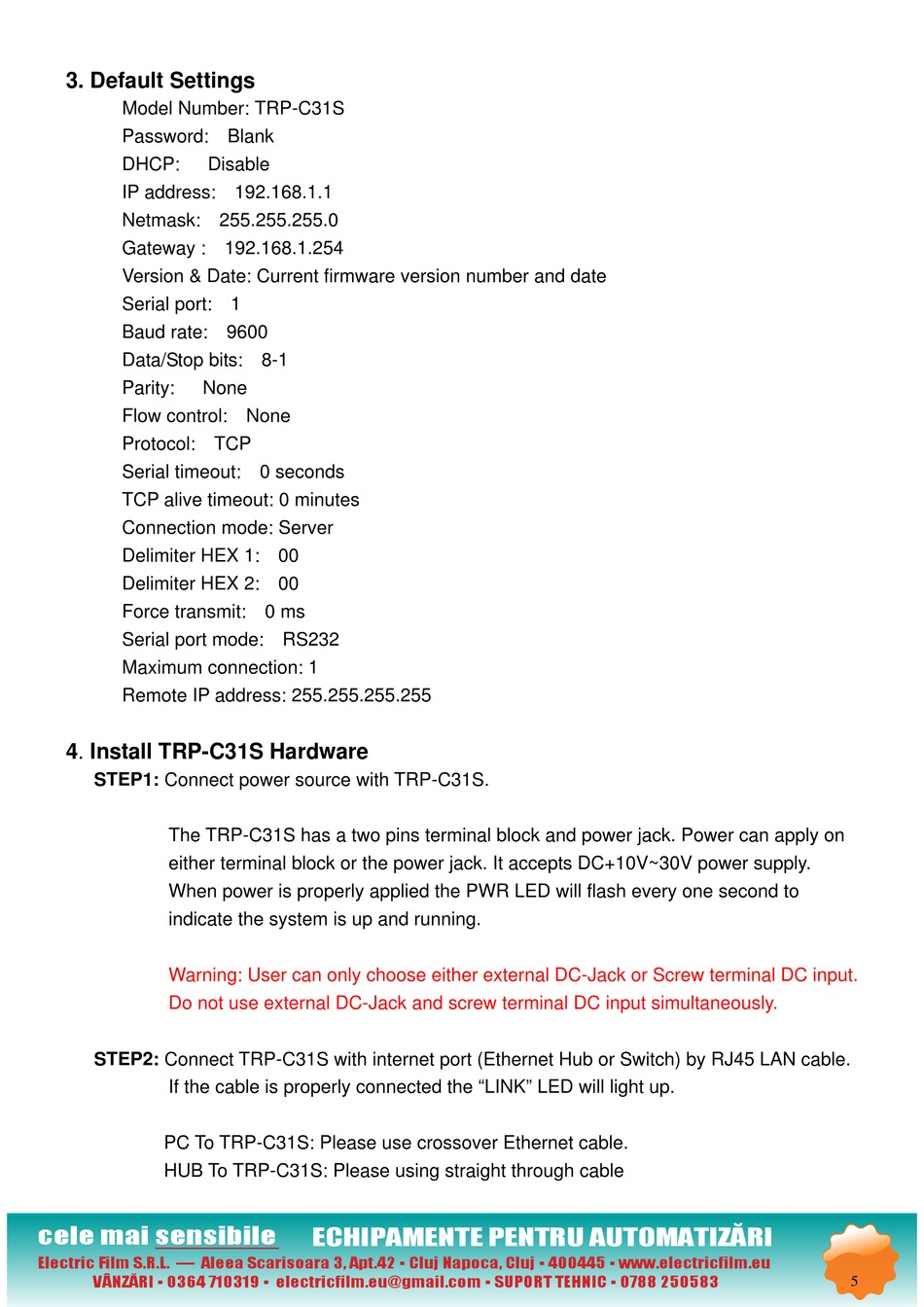

3. Default Settings
Model Number: TRP-C31S
Password: Blank
DHCP: Disable
IP address: 192.168.1.1
Netmask: 255.255.255.0
Gateway : 192.168.1.254
Version & Date: Current firmware version number and date
Serial port: 1
Baud rate: 9600
Data/Stop bits: 8-1
Parity: None
Flow control: None
Protocol: TCP
Serial timeout: 0 seconds
TCP alive timeout: 0 minutes
Connection mode: Server
Delimiter HEX 1: 00
Delimiter HEX 2: 00
Force transmit: 0 ms
Serial port mode: RS232
Maximum connection: 1
Remote IP address: 255.255.255.255
4. Install TRP-C31S Hardware
STEP1: Connect power source with TRP-C31S.
The TRP-C31S has a two pins terminal block and power jack. Power can apply on
either terminal block or the power jack. It accepts DC+10V~30V power supply.
When power is properly applied the PWR LED will flash every one second to
indicate the system is up and running.
Warning: User can only choose either external DC-Jack or Screw terminal DC input.
Do not use external DC-Jack and screw terminal DC input simultaneously.
STEP2: Connect TRP-C31S with internet port (Ethernet Hub or Switch) by RJ45 LAN cable.
If the cable is properly connected the "LINK" LED will light up.
PC To TRP-C31S: Please use crossover Ethernet cable.
HUB To TRP-C31S: Please using straight through cable
