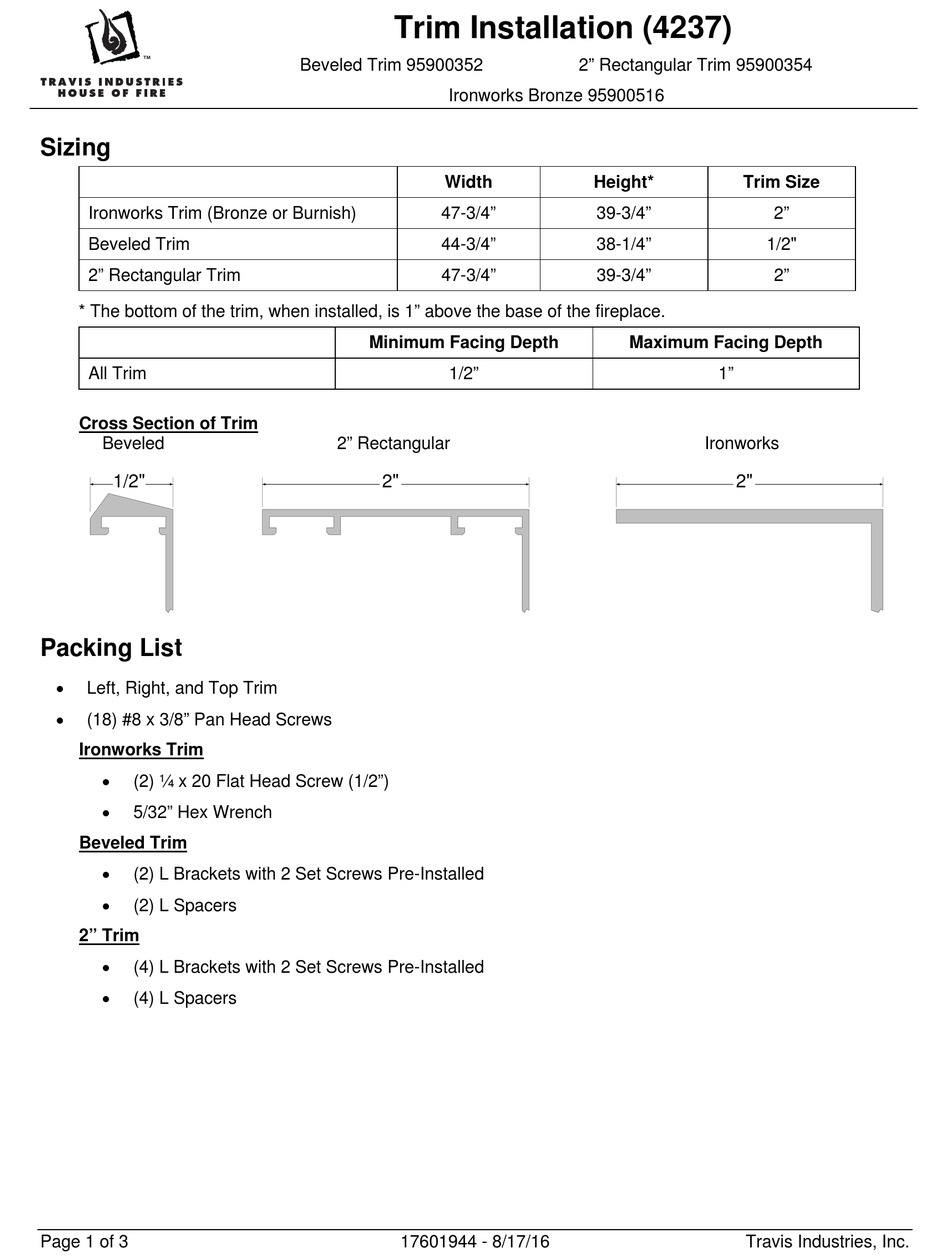

Travis Industries 95900352 Installation

Sizing

Ironworks Trim (Bronze or Burnish)
Beveled Trim
2" Rectangular Trim
* The bottom of the trim, when installed, is 1" above the base of the fireplace.
All Trim
Cross Section of Trim
Beveled
1/2"

Packing List


Left, Right, and Top Trim

(18) #8 x 3/8" Pan Head Screws
Ironworks Trim

(2) ¼ x 20 Flat Head Screw (1/2")

5/32" Hex Wrench
Beveled Trim

(2) L Brackets with 2 Set Screws Pre-Installed

(2) L Spacers
2" Trim

(4) L Brackets with 2 Set Screws Pre-Installed

(4) L Spacers
Page 1 of 3
Trim Installation (4237)
Beveled Trim 95900352
Ironworks Bronze 95900516
Width
47-3/4"
44-3/4"
47-3/4"
Minimum Facing Depth
1/2"
2" Rectangular
2"
17601944 - 8/17/16
2" Rectangular Trim 95900354
Height* Trim Size
39-3/4"
38-1/4"
39-3/4"
Maximum Facing Depth
1"
Ironworks
2"
Travis Industries, Inc.
2"
1/2"
2"
