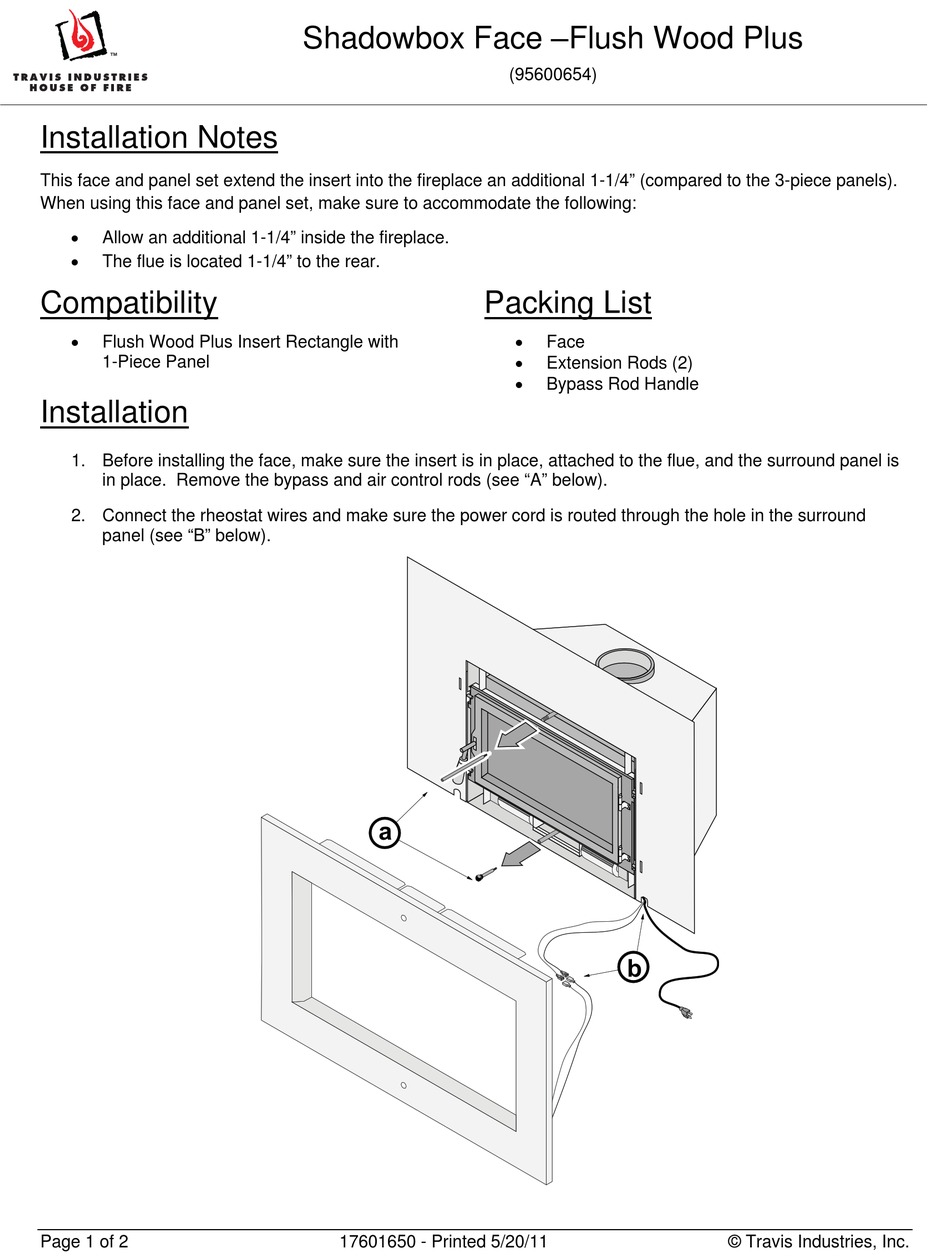

Shadowbox face –flush wood plus

Installation Notes

This face and panel set extend the insert into the fireplace an additional 1-1/4" (compared to the 3-piece panels).

When using this face and panel set, make sure to accommodate the following:



Allow an additional 1-1/4" inside the fireplace.



The flue is located 1-1/4" to the rear.



Flush Wood Plus Insert Rectangle with

1-Piece Panel

1. Before installing the face, make sure the insert is in place, attached to the flue, and the surround panel is

in place. Remove the bypass and air control rods (see "A" below).

2. Connect the rheostat wires and make sure the power cord is routed through the hole in the surround

panel (see "B" below).

Page 1 of 2

Shadowbox Face –Flush Wood Plus

17601650 - Printed 5/20/11

(95600654)



Face



Extension Rods (2)



Bypass Rod Handle

Table of Contents

Do you have a question about the 95600654 and is the answer not in the manual?

Page 1 Remove the bypass and air control rods (see “A” below). 2. Connect the rheostat wires and make sure the power cord is routed through the hole in the surround panel (see “B” below). Page 1 of 2 17601650 - Printed 5/20/11 © Travis Industries, Inc.
Page 2 Failure to do this may cause the wiring to become damaged. HINT: While installing the bypass extension, reach into the firebox and hold the bypass plate and yoke. See the manual for a detailed view. Page 2 of 2 17601650 - Printed 5/20/11 © Travis Industries, Inc.
