Mackworth TX600 Manual

Fixed ceiling hoist
Hide thumbs Also See for TX600:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
CONTENTS

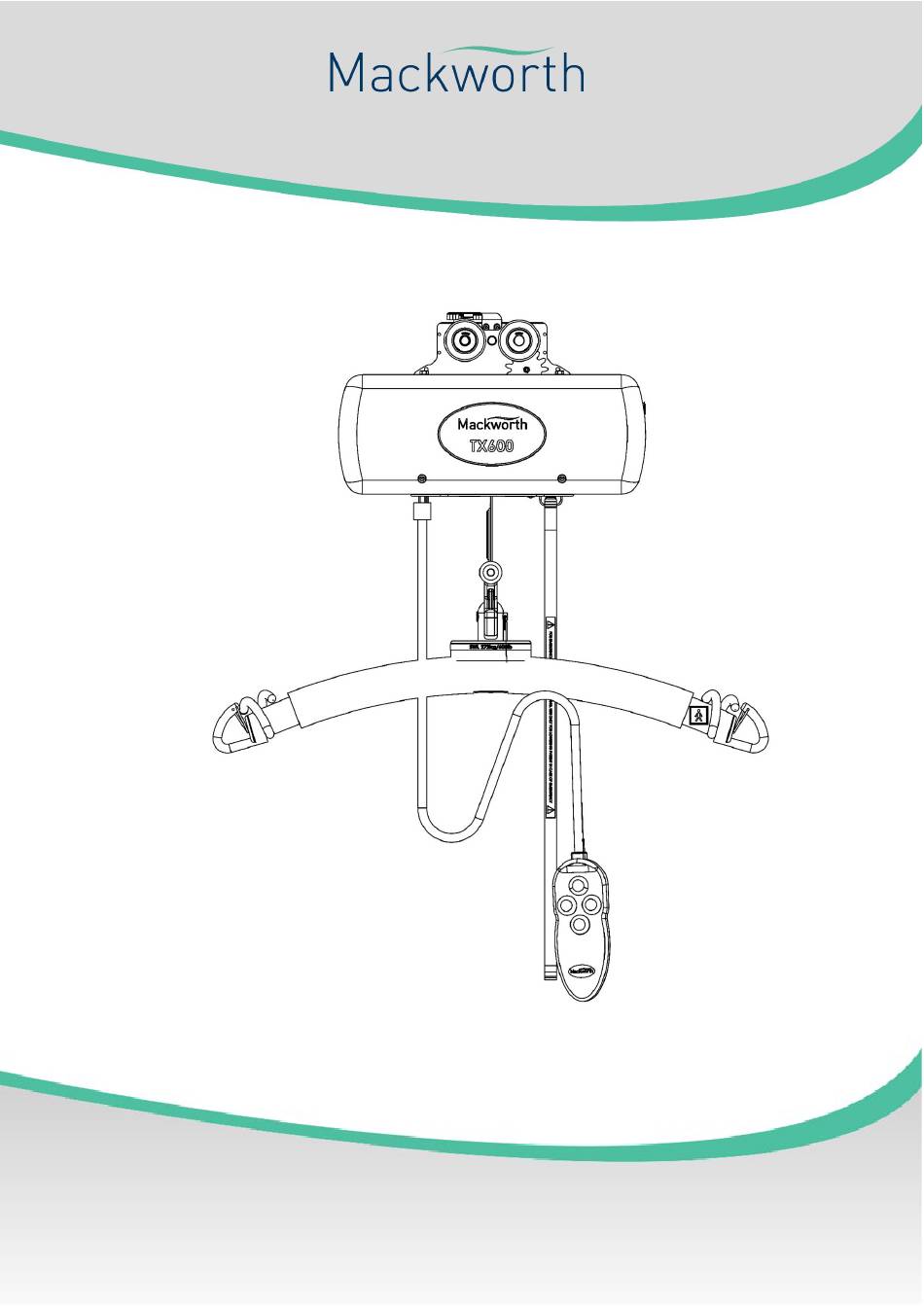

TX600 Fixed Ceiling Hoist
Pre Sales Information
993553 – Pre Sales Information – Rev A
P a g e
| 1 of 7
Revision A

Advertisement

loading
Need help?

Need help?

Do you have a question about the TX600 and is the answer not in the manual?

Questions and answers

Related Manuals for Mackworth TX600

Summary of Contents for Mackworth TX600

  • Page 1 CONTENTS TX600 Fixed Ceiling Hoist Pre Sales Information 993553 – Pre Sales Information – Rev A P a g e | 1 of 7 Revision A...
  • Page 2 CONTENTS Contents Intended Use Maintenance General Cleaning Disinfecting (if necessary) Technical Specification Shipping & Storage Conditions 993553 – Pre Sales Information – Rev A P a g e | 2 of 7...
  • Page 3 (Authorised Engineer) 3.0 General Cleaning The exterior of the TX600 can be cleaned using a damp soapy cloth for general cleaning duties. Please ensure the cloth is damp and not wet. Ensure the exterior of the device is dry after cleaning.
  • Page 4 CONTENTS Follow the manufacturer’s safety instructions for the use of the cleaning product before use to ensure safe use for the operator and the patient. Ensure the cloth is damp before the cleaning process. DO NOT use a wet cloth over electrical systems.

  • Page 5: Technical Specification

    There are no necessary modifications required for the device to perform its intended use. However, should the device or the installed system require modification, please consult your local Mackworth dealer to arrange a date and time to assess the required changes to the system.
  • Page 6 CONTENTS If this equipment is modified, appropriate inspection and testing must be conducted to ensure continued safe use of the equipment. Specifications Technical specifications Hoist Motor 24VDC Traverse Motor (optional at time of purchase) 24VDC Charger Input 100-240V AC 50/60Hz 1.5A Charger Output 24VDC/1.0A Batteries (sealed lead acid)
  • Page 7 CONTENTS Battery Capacity for Raising/Lowering (SWL) 35 Lifts (Top 500mm of Lift Tape) Battery Capacity for Raising/Lowering 60 Lifts (Top 500mm of Lift Tape) (200kg/440lbs) Battery Capacity for Raising/Lowering 120 Lifts (Top 500mm of Lift Tape) (100kg/220lbs) Table 1 Weights Safe Working Load (SWL) 272kg (600lbs) Hoist...
