Mackworth TX Commissioning Manual

Tx advanced ceiling track lift
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TX Advanced Ceiling Track Lift
Commissioning Manual
997674-en-us
Rev C
17/11/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX and is the answer not in the manual?

Questions and answers

Related Manuals for Mackworth TX

Summary of Contents for Mackworth TX

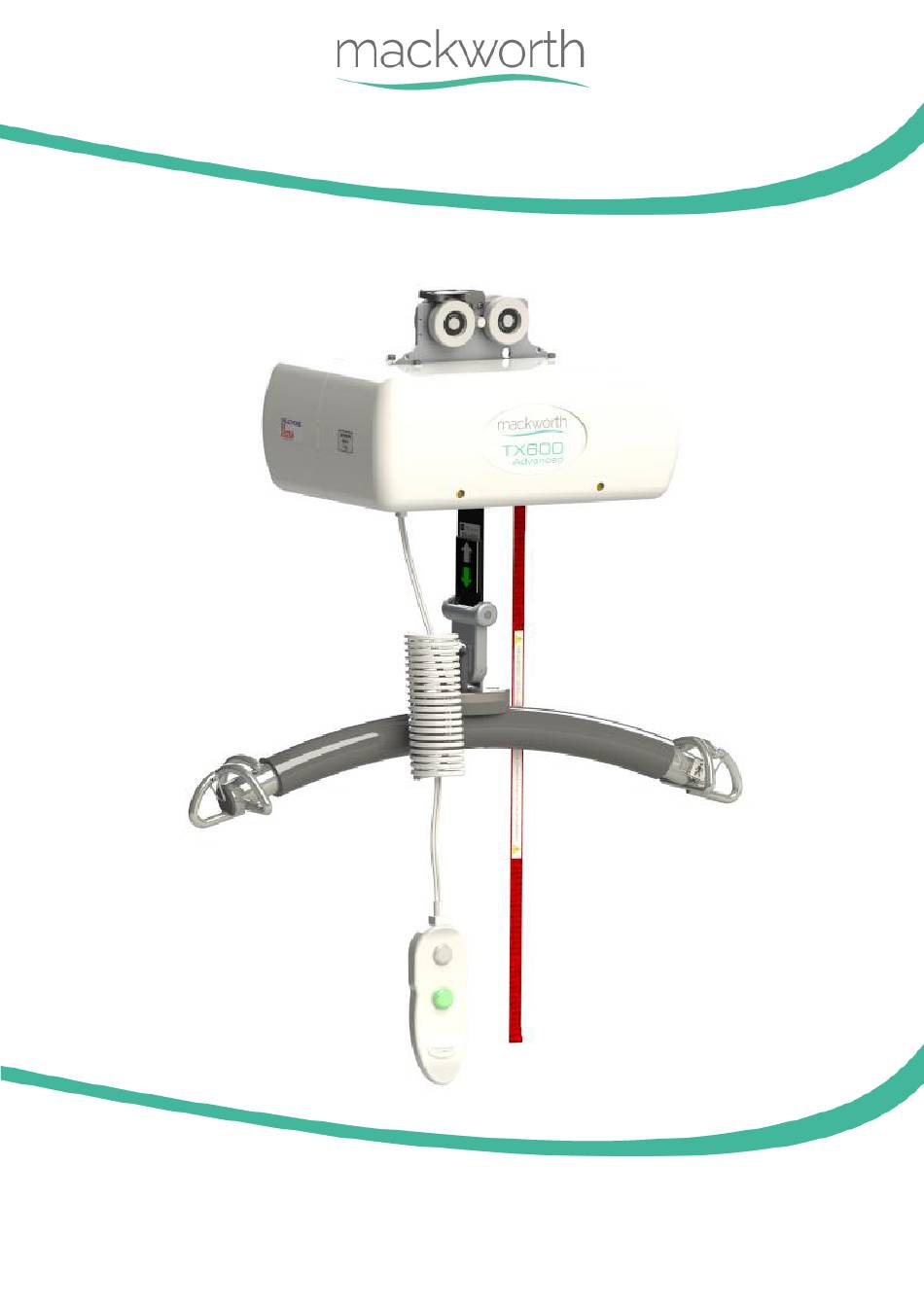

  • Page 1 TX Advanced Ceiling Track Lift Commissioning Manual 997674-en-us Rev C 17/11/23...

  • Page 2: Table Of Contents

    Introduction ....................................3 Safety Precautions ..................................4 Tools and Equipment List ..............................4 Ceiling Track Access ................................5 Installing the Ceiling Lift ................................. 7 5 . 1 Standard ceiling lift install .................................... 7 5 . 2 Constant charge ceiling lift install ................................7 5 .

  • Page 3: Introduction

    Introduction This manual will explain how to successfully commission the Mackworth TX Advanced Ceiling Track Lift safely and effectively. This document includes how to install the ceiling lift into a pre-installed ceiling track system, as well as removing and decommissioning the ceiling lift at the end of its life cycle. The aim of the manual is to advise and assist you, so that you can provide a successful install for the end user.

  • Page 4: Safety Precautions

    Safety Precautions Read and understand this manual in its entirety before Commissioning the Mackworth TX Advanced Ceiling Lift. • Only Mackworth authorised personnel are eligible to perform a ceiling lift commission and decommission. • The Ceiling lift must not be in use by the user during any form of servicing.

  • Page 5: Ceiling Track Access

    Ceiling Track Access This section will guide you on how to install and remove the safety components found within the track system. This includes the end stops, safety bolt and end caps. A pre-installed track system should already have these components installed. A track system should never be left without the safety components being installed.
  • Page 6 Once the end stop is secured, the safety bolt and end cap can be fitted. Place the rubber bumper inside the track, aligning it with the drilled hole and place the given bolt through the track and bumper and secure at the other end with the nut.

  • Page 7: Installing The Ceiling Lift

    Installing the Ceiling Lift Each variant of ceiling lift is installed into the track in the same manner, but see below for detailed instructions which may vary slightly for different ceiling lift types. Each varying track type of ceiling lift is installed into its relevant track type following the same method.

  • Page 8: Powered Auxiliary Ceiling Lift Install (Turntables Only)

    5 . 3 Powered Auxiliary ceiling lift install (Turntables only) Follow the guidelines above, noting the following points: The powered auxiliary ceiling lift for turntables will have two beaks on the chassis trolley. The charging beak is the white nylon block. Ensure that this is orientated to dock with the charger. (See figure 5.3.1) Figure 5-3-1 Figure 5-3-2 5 .
  • Page 9 Figure 5-4-4 Figure 5-4-5 Figure 5-4-3 Figure 5-4-6 Figure 5-4-7 Installing the ceiling lift onto the trolley Disengage the plunger found on the side face of the trolley to allow attachment access. (See figure 5.4.8) Using both hands to support the ceiling lift, raise the ceiling lift up to the trolley and align the ceiling lift anchors with the trolley hooks.

  • Page 10: Installing The Charging Dock

    Removing the ceiling lift from the trolley Removal is a reversal of the install process noting the following points: Traverse the ceiling lift to the dismount point and align the dismount hole in the track with the hole found on the trolley centre. Insert the dismount pin through the track to secure the trolley in position.

  • Page 11: Installing A Power Supply To The Constant Charge Strips

    Installing a power supply to the Constant Charge Strips Each track type has a different type of constant charge strips, with each being powered differently. Follow the subsection below which suits your install. 7 . 1 Installing a power supply to the constant charge strips (Track Type 1) – New Style The end cap is fitted with two contact terminals which will touch onto the constant charge strips.

  • Page 12: Installing A Power Supply To The Constant Charge Strips (Track Type 2)

    7 . 3 Installing a power supply to the constant charge strips (Track Type 2) When installing the charging unit to a varying track type, we must use the current dock found in the track. You must first remove the existing dock from the track, remove the charging unit attached and connect our charging unit to the existing dock.

  • Page 13: Installing A Power Supply To The Constant Charge Strips (Track Type 3)

    7 . 4 Installing a power supply to the constant charge strips (Track Type 3) When installing the charging unit to a varying track type, we must use the current dock found in the track. You must first remove the existing dock from the track, remove the charging unit attached and connect our charging unit to the existing dock.

  • Page 14: Mounting The Charing Unit To The Wall

    Figure 7-5-4 Figure 7-5-5 Figure 7-5-6 Mounting the Charing Unit to the Wall Once the charging dock is fitted into the track, or the charging unit jack plug is fitted for constant charge strips, the charging unit must be mounted to the wall. The charging unit is positioned in its casing (figure 8.3), this casing has three holes which are used to mount the bracket to the wall.

  • Page 15: Connecting The Handset

    Connecting the Handset There are various handset options depending on the ceiling lift chosen, all handsets are installed onto the ceiling lift in the same manner. Follow the guidance below for the correct install method. Figure 9-1 Figure 9-2 Figure 9-3 The handset grommet attaches to the airline grommet on the underside of the ceiling lift.

  • Page 16: Final Function Checks

    Additional Documentation See the list of available documents you may or may not need to refer to for a successful commission. All documents will be available to view on the Mackworth website: http://mackworthusa.com • Spare Part Manual – 992674 •...

  • Page 17: Decommissioning

    Decommissioning Once the ceiling lift has reached the end of its life cycle, the ceiling lift will require decommissioning. This includes removing the track from the ceiling lift, dismantling and disposal. Follow the guidelines below for detailed instructions on how to decommission correctly. Before removing the ceiling lift from the track, it is highly recommended that the ceiling lift be cleaned to reduce the risk of cross-contamination.
  • Page 18 While every effort has been made to ensure the accuracy of information contained in this manual, no liability can be accepted by Mackworth for any errors or omissions. Mackworth operates a policy of continuous improvement. Specifications and other data are subject to change without notice.

This manual is also suitable for:

Tx400Tx440Tx600
