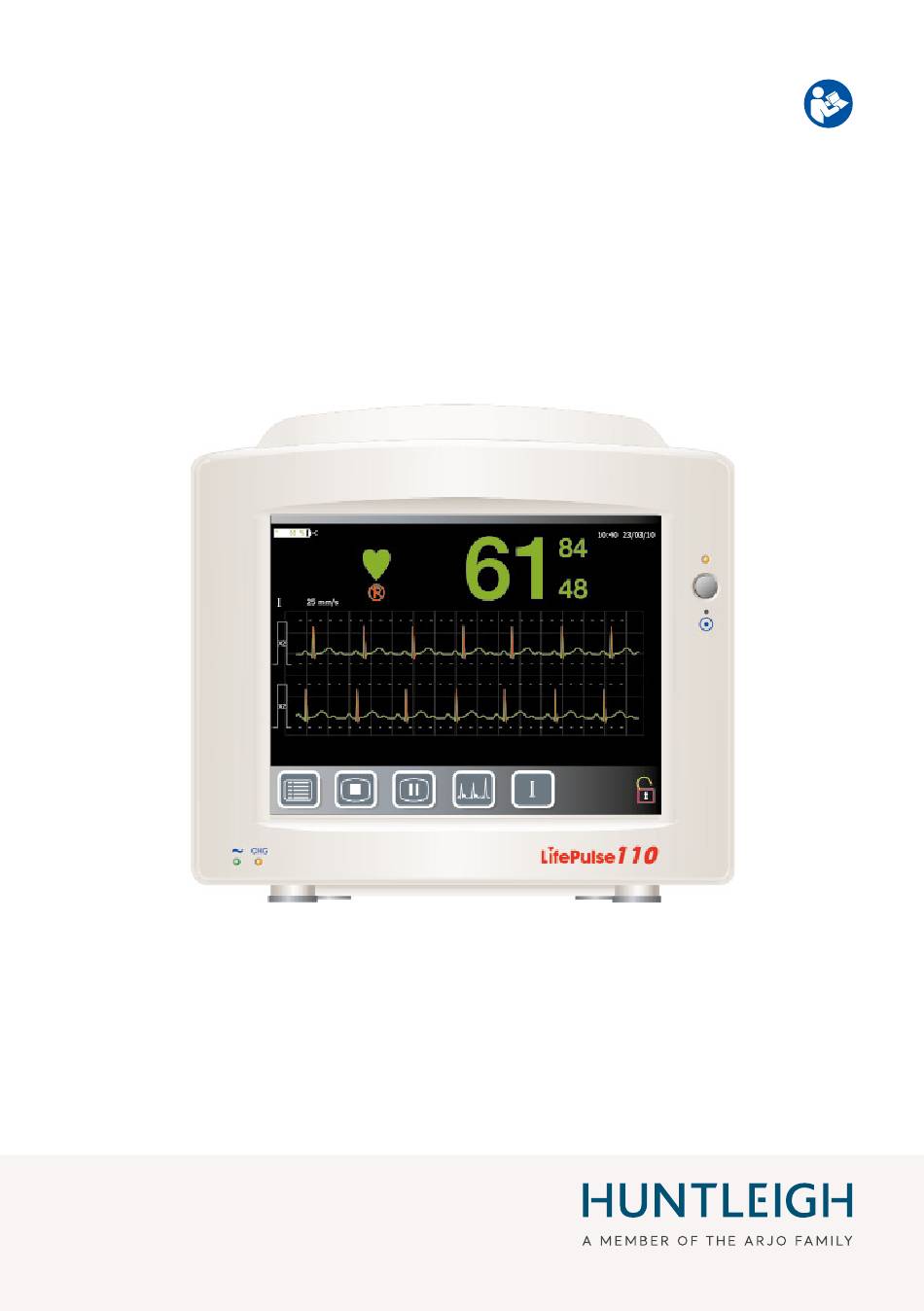

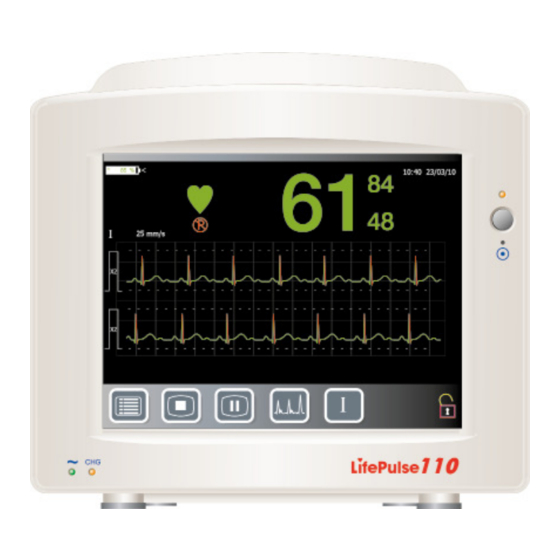

- Page 1 INSTALLATION MANUAL LP110/LP110-S Trigger Monitor 774355EN-1 08/2021...
-
Page 2: Table Of Contents
The LP110/LP110-S complies with the essential requirements of the Medical Device Directive (93/42/EEC) - Medical Device Regulation (EU/2017/745) Manufactured in the UK for CANON Medical Systems by Huntleigh Healthcare Ltd. As part of the ongoing development programme the company reserves the right to modify specifi... -
Page 3: Contraindications
Contraindications These guidelines are intended as an aid for qualifi ed personnel whilst undertaking the installation/commissioning of the LP110/LP110-S Trigger monitor with the Aquillion series CT scanner Introduction This guide will assist with the installation of the trigger monitor and ensure the correct connection to the CT scanner. -
Page 4: Detail
Detail Dimensions Figure 1 Dimensions are 240mm x 224mm x 161mm including feet and equipotential earth connector - Figure 1. Clearances Figure 2 A minimum side clearance of approximately 100mm is required to allow suffi cient clearance for connection of the patient cable. A minimum rear clearance of approximately 80mm is required to allow suffi... -
Page 5: Rear Connections
Rear Connections Figure 3 Trigger Output Equipotential Earth Point 3.3.1 Equipotential Earth Connection An Equipotential earth point is provided on the rear of the monitor for connection to a recommended earth point on the CT scanner. The earth wire should be run separately from any mains or current carrying cables and should be kept as short as possible. -
Page 6: Trigger Output Connection
3.3.2 Trigger Output Connection Connect the 25 way D-type to the rear of the monitor. Connect the other end of the cable to the Aquillion scanner. Ensure that both ends have been secured with the interlock screws provided. Gantry Mounting The monitor can be gantry mounted using the fi... -
Page 7: Mobile Cart /Table Pedestal Mounting
Mobile Cart /Table Pedestal Mounting The monitor is mounted on either the Mobile Cart (ACC-VSM-153) or the Table Pedestal (ACC-VSM-212) by fi xing the mounting plate to the underside (Mounting Kit ACC-VSM-152) as shown below in Figure 5. Figure 5 Installation Guide... -
Page 8: Attaching To A Mobile Cart/Table Pedestal
Attaching to a Mobile Cart/Table Pedestal The monitor slides onto the mobile cart/table pedestal with the slide mount lock to the front. For safe installation ensure that the slide mount lock is fully located into the location hole in the mounting plate. 3.6.1 Mobile Cart Slide mount lock... - Page 9 Figure 7 - Front view of Table pedestal and location of slide lock. The LP110 will slide onto the table pedestal and lock into place. The table pedestal should be fi tted directly to the scanner bed by locating the pole into the fi...
-
Page 10: Service
Service If you experience any diffi culties, contact your local supplier or Huntleigh Diagnostics directly: - Customer Care Department. Huntleigh Healthcare, Diagnostic Products Division, 35, Portmanmoor Rd., Cardiff . CF24 5HN United Kingdom. Tel: +44 (0)29 20496793 - Service (24hr answer machine) - Page 11 In the European Union, the user should also report the serious incident to the Competent Authority in the member state where they are located. Manufactured in the UK by Huntleigh Healthcare Ltd on behalf of; ArjoHuntleigh AB Hans Michelsensgatan 10 211 20 Malmö, Sweden...
