Table of Contents Doppler Measurement Sites and Recommended Probes ..3 1. Safety ................. 4 Warnings ....................4 Patient Applied Parts ................5 Acoustic Safety ..................5 2. Introduction ............... 7 Unpacking / Preliminary Checks ............7 Battery Insertion / Replacement ............7 Product Controls .................. -
Page 3: Doppler Measurement Sites And Recommended Probes
Doppler Measurement Sites and Recommended Probes 1 Jugular Vein 11 Subclavian Artery VP4HS, VP5HS VP4HS, VP5HS 2 Subclavian Vein 12 Brachial Artery VP4HS, VP5HS VP8HS, EZ8 3 Fetus 13 Ulnar Artery OP2HS, OP3HS VP8HS, EZ8 4 Femoral Vein 14 Radial Artery VP4HS, VP5HS VP8HS, EZ8 5 Great Saphenous Vein... -
Page 4: Safety
Safety Before using this equipment, please study this manual carefully and familiarize yourself with the controls, display features and operation. Ensure that each user fully understands the safety and operation of the unit, as mis- use may cause harm to the user or patient, or damage to the product. -
Page 5: Patient Applied Parts
“ALARA” principle, which states that the energy delivered to the patient should always be kept As Low As Reasonably Achievable. With the MD2/SD2, the transmitted acoustic power is fi xed and cannot be adjusted by the operator. Therefore, the... - Page 6 The calculated derated intensity values for the MD/SD2 compare very favorably with previously reported acoustic safety data for Doppler ultrasound instruments and are appropriate for all clinical applications recommended in this manual.
-
Page 7: Introduction
Unpacking / Preliminary Checks Contents Delivery Inspection Huntleigh takes every precaution to ensure that goods reach you in perfect condition. However, accidental damage can occur in transit and storage. For this reason we recommend that a thorough visual inspection is made immediately the unit is received. -
Page 8: Product Controls

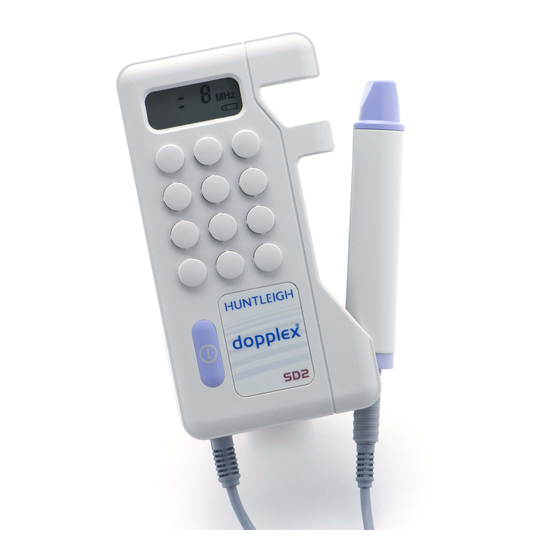

Product Controls MD2 SD2 ● ● Headphone Socket ● Waveform Socket ● RS232 Port ● ● LCD Panel ● ● Loud-speaker ● ● On/Off Button ● ● Probe Holder ● ● Volume Control ● Start/Stop Button ● Cal Button ●... -
Page 9: Product Labelling
Product Labelling Applied parts (ultrasound probes) are type B according to the defi nitions in IEC60601-1:1988 Power On/Off This symbol signifi es that this product, including its accessories and consumables is subject to the WEEE (Waste Electrical and Electronic Equipment) regulations and should be disposed of responsibly in accordance with local procedures. -
Page 10: Operation
Coupling Gel Use water based ultrasound gel ONLY. Vascular Mode The Multi Dopplex II/Super Dopplex II Dopplers (MD2/SD2) will select vascular mode when a vascular probe is connected to the control unit. Vascular Probes Five probes are available for vascular examinations: VP4HS 4MHz ±1% for deep lying vessels... - Page 11 Using the Mode button on the MD2 (Gain button for SD2), gain can be set to x1, x2, x4, x8. Connection to Printa II™ (MD2 Only) Hard copy printing is automatically selected when the plug of the interface buffer box is inserted into the RS232 socket on the top panel of the MD2.
-
Page 12: Obstetric Mode
Two probes are available for obstetric examinations: OP2HS 2MHz ±1% OP3HS 3MHz ±1% In this mode, MD2 provides fetal heart rate (FHR) display with 3 operating modes, and outputs FHR for printing on the Printa II. The SD2 in obstetric mode provides audio only. - Page 13 Clinical Use Apply a liberal amount of gel to the abdomen. Place the faceplate of the probe fl at against the abdomen above the symphysis pubis. Adjust the probe to obtain an optimum audio signal ideally by angling the probe around. Avoid sliding it over the skin.
-
Page 14: After Use
Use of Manual Mode Press and hold Start/Stop button and immediately count the audible heart beats, counting the fi rst beat as the button is pressed. The LCD displays the fl ashing clock symbol and the FHR reading is shown as three dashes. Release the Start/Stop button immediately on the count of 10 (i.e. -
Page 15: Care And Cleaning
Periodically, and whenever the integrity of the system is in doubt, carry out a check of all functions as described in the relevant section of the IFU. If there are any defects to the housing contact Huntleigh or your distributor for repair or to order a replacement. -
Page 16: General Cleaning And Disinfecting
General Cleaning and Disinfecting Always keep the external surfaces clean and free of dirt and fl uids using a clean dry cloth. Wipe any fl uids from the surface of the product using a clean dry cloth. Wipe with a cloth dampened in 70% Isopropyl Alcohol. Completely dry with a clean, dry lint free cloth. -
Page 17: Maintenance And Repair
Warning: Sodium Hypochlorite @ 10,000 ppm for disinfecting should only be used in situations described in the High Risk defi nition. Unnecessary use of this concentrated solution for Low and Medium risk situations may result in damage to the product. Do not allow Sodium Hypochlorite solutions to come into contact with metal parts. -
Page 18: Specifi Cations
Specifi cations Equipment Classifi cation Type of protection Internally powered equipment against electric shock. Degree of protection Type B - equipment with an applied part. against electric shock Mode of operation. Continuous Degree of protection Main Unit: IP20 against harmful ingress Probes (Tip only): IPX1 of particles and/or water. -
Page 19: Waveform Outputs (Md2 Only)
Waveform Outputs (MD2 Only) Analogue Zero crosser, 3.5V full scale per channel (forward and reverse). Conversion factor automatically adjusted to give full scale outputs at ±0.1% (±10%) of probe frequency (e.g. ±8kHz for VP8) Digital Data formatted to interface with Printa II or Recorder software running on compatible computer. -
Page 20: End Of Life Disposal
End of Life Disposal This symbol signifi es that this product, including its accessories and consumables is subject to the WEEE (Waste Electrical and Electronic Equipment) regulations and should be disposed of responsibly in accordance with local procedures. -
Page 21: Warranty
Warranty ARJOHUNTLEIGH INC. HEREBY DISCLAIMS ALL EXPRESS OR IMPLIED WARRANTIES (INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) AND ANY AGREEMENTS, REPRESENTATIONS, AFFIRMATIONS, OR WARRANTIES, WHETHER ORAL OR WRITTEN, MADE BY ANY AGENT, EMPLOYEE OR REPRESENTATIVE OF ARJOHUNTLEIGH INC., UNLESS SPECIFICALLY SET FORTH IN THIS PARAGRAPH. - Page 22 IN NO EVENT SHALL ARJOHUNTLEIGH INC. BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL LOSSES OR DAMAGES (INCLUDING BUT NOT LIMITED TO ECONOMIC LOSS, LOSS OF PROFITS OR SPECIAL DAMAGES) ARISING OUT OF OR INCURRED BY CUSTOMER IN CONNECTION WITH THE PURCHASE OF ARJOHUNTLEIGH INC.’S GOODS EVEN IF ARJOHUNTLEIGH INC.
-
Page 23: Service
• Call Huntleigh in Addison, IL for a return authorization number. Huntleigh Healthcare Ltd reserve the right to return product that does not contain a decontamination certifi cate. For service, maintenance and any questions regarding this, or any other... - Page 24 Manufactured in the UK by Huntleigh Healthcare Ltd. As part of the ongoing development programme the company reserves the right to modify specifi cations and materials without notice. Dopplex, and Huntleigh are registered trademarks of Huntleigh Technology Ltd. 2004. © Huntleigh Healthcare Ltd. 2004-2014...
- Page 25 House, Houghton Hall Business Park, Houghton Regis, Bedfordshire, LU5 5XF © Huntleigh Healthcare Limited 2004-2014 COMPANY, MEMBER OF THE GETINGE GROUP ® and ™ are trademarks of Huntleigh Technology Limited As our policy is one of continuous improvement, we reserve the right to modify 726331-US-10 designs without prior notice.
