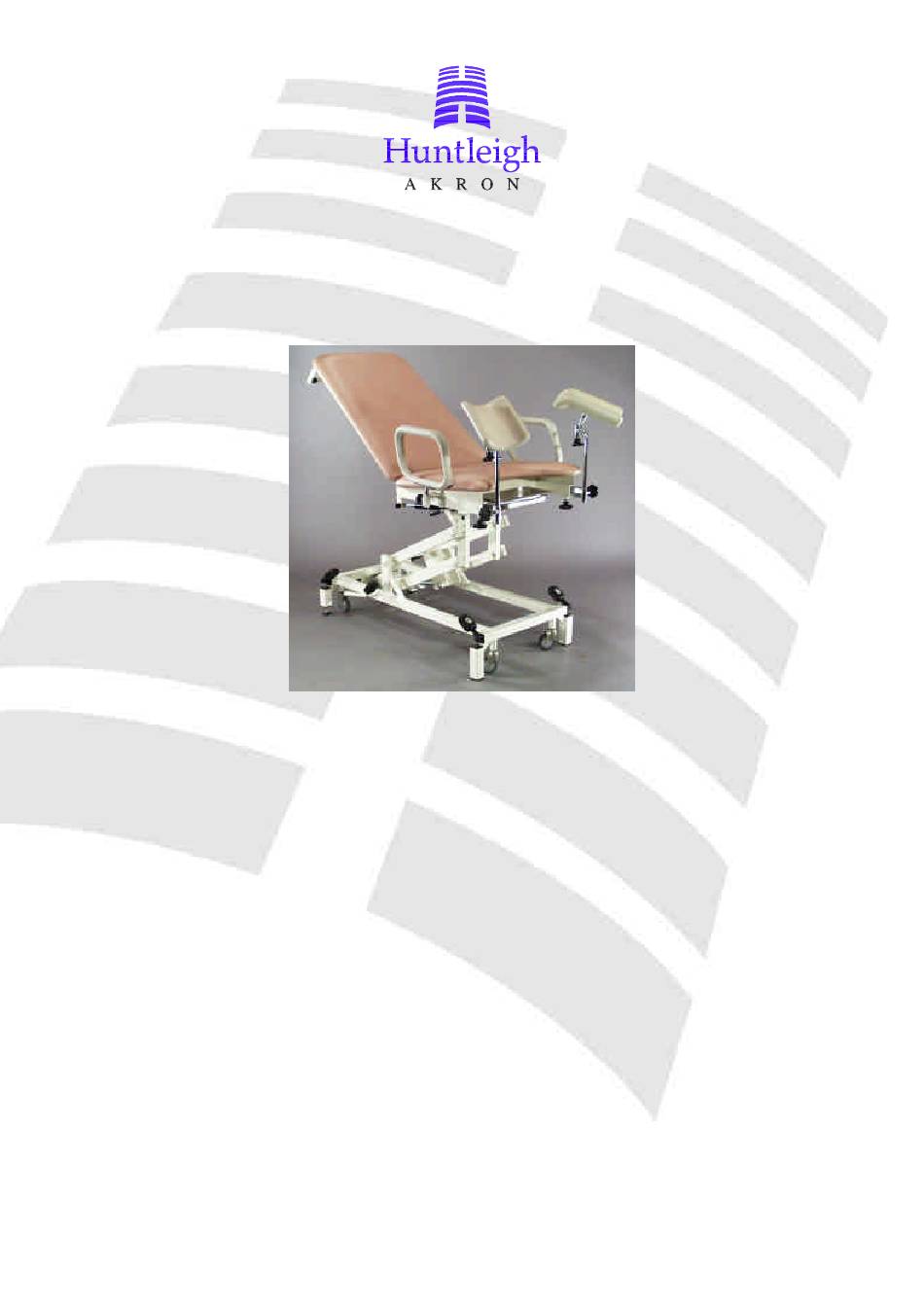

AKRON
GYNAECOLOGY 1
Models
9721, 9722, 9731,
9732, 9742, 9752
SERVICE MANUAL
794-025

Advertisement

loading
Need help?

Need help?

Do you have a question about the AKRON GYNAECOLOGY 1 Series and is the answer not in the manual?

Questions and answers

Dr Serag Youssif
June 28, 2025

Model Number 06A-6029-SF Magnetic (SKF) Triple Foot Switch do you have similar part

User image 685fc0e0edaa9
0
Mr Serag Youssif
June 28, 2025

Do you stock Magnetic (SKF) Triple Foot Switch Model Number 06A-6029-SF or similar product

0

Subscribe to Our Youtube Channel

Related Manuals for Huntleigh AKRON GYNAECOLOGY 1 Series

Summary of Contents for Huntleigh AKRON GYNAECOLOGY 1 Series

  • Page 1 ® AKRON GYNAECOLOGY 1 Models 9721, 9722, 9731, 9732, 9742, 9752 SERVICE MANUAL 794-025...
  • Page 2 General Maintenance including Gas Strut It is recommended that the following checks and adjustments are carried out at minimum of twice a year and more frequently if the couch is in constant use. The framework of the couch is of steel construction and coated with an epoxy paint finish.

  • Page 3: Manufacturers Details

    1 Farthing Road Ipswich Suffolk IP1 5AP England Tel. (0)1473 461042 Fax. (0)1473 462924 Huntleigh Akron T/A a Division of Huntleigh Nesbit Evans Limited A Member of the Huntleigh Technology PLC Group of Companies © Huntleigh Technology PLC 2000 Page 2...
  • Page 4 Gynaecology 1 Revision History DOCUMENT ISSUE DCN No. SIGNED DATE All Pages Gary Mullenger 14/6/00 2M3416Z Jason Barker 1/9/00 2M3410Z Jason Barker 8/9/00 2M3420Z 2M3421Z Jason Barker 23/10/00 2M3424Z Jason Barker 15/01/01 A7309 A7310 Jason Barker 30/03/01 Page 3...
  • Page 5 PARTS LIST 230V HANNING RAM KIT 2M2082Z – Issue 08 Reference Description Quantity Part Issue Number Number Status Motor Mounting Bracket 3A2006Z Ram Fixing Pin 3A2088Z Spacer (17.5mm) 3G9435Z Hanning Ram 230V (Type H) 5F0603Z Hanning Mains Lead (4 metres) 5F6000Z Hanning Plug Rubber 5F6100Z...
  • Page 7 PARTS LIST 115V HANNING RAM KIT 2M2083Z – Issue 07 Reference Description Quantity Part Issue Number Number Status Motor Mounting Bracket 3A2006Z Ram Fixing Pin 3A2088Z Spacer (17.5mm) 3G9435Z Hanning Ram 115V (Type H) 5F0504Z Hanning Mains Lead (4 metres) 5F6000Z Hanning Plug Rubber 5F6100Z...
  • Page 9 PARTS LIST 2M3416Z HYDRAULIC RAM KIT 2M3416Z – Issue 03 Reference Description Quantity Part Issue Number Number Status Pump Mounting Bracket 3A0142Z Pump Ring 3A0143Z Left Hand Foot Lever 3A2012Z Right Hand Foot Lever 3A2014Z Ram Fixing Pin 3A2088Z Packing Section 3A3694Z 25mm Spacer 3G9436Z...

  • Page 11: Parts List

    PARTS LIST 2M3413Z 230v SINGLE MAGNETIC RAM KIT WITH BATTERY BACKUP 2M3413Z – Issue 02 Reference Description Quantity Part Issue Number Number Status Motor Mounting Bracket 3A2006Z Ram Fixing Pin 3A2088Z LHS Control Mounting Bracket 3A3652Z RHS Control Mounting Bracket 3A3660Z 10mm Spacer 3G9434Z...
  • Page 13 PARTS LIST 2M3415Z 115v SINGLE MAGNETIC RAM KIT WITH BATTERY BACKUP 2M3415Z – Issue 02 Reference Description Quantity Part Issue Number Number Status Motor Mounting Bracket 3A2006Z Ram Fixing Pin 3A2088Z LHS Control Mounting Bracket 3A3652Z RHS Control Mounting Bracket 3A3660Z 10mm Spacer 3G9434Z...
  • Page 15 40x40 Moulded End Cap 5N3737M 40x40x2.5mm Threaded Insert 5N3737V 40x40x2.5mm Grey Insert 5N3744Z 10mm Foot Adjusting Stud 5N3782U 50x25x2.5mm Grey Insert 5N3944Z Nylon Foot Lever 5T0028Z Pedal Rubber 5T3200Z Huntleigh Akron Label 5U1006Z Pedal Sticker 5U1066Z Issue Date 9/99 12/99 E.C.N.
  • Page 17 8.5mm Grey Insert 5N2100M 40x40x2.5mm Grey Insert 5N3744Z 50x25x2.5mm Grey Insert 5N3944Z 3/4”x16G Round Grey Insert 5N9251M Nylon Foot Lever 5T0028Z Pedal Rubber 5T3200Z Huntleigh Akron Label 5U1006Z Pedal Label 5U1065Z Pedal Label 5U1066Z Issue Date 9/99 12/99 9/00 E.C.N.
  • Page 19 PARTS LIST 2M3418Z GYNAECOLOGY 1 TOP FRAME 2M3418Z – Issue 02 Reference Description Quantity Part Issue Number Number Status Backrest Release Lever 3A2086Z Gas Strut Release Flap 3A2087Z Hinge Pin 3A3181Z Gynae 1 Backrest 3A3679Z Gynae 1 Top Frame 3A3680Z Sliding Debris Tray Holder 3A3682Z Trunnion...
  • Page 20 PARTS LIST 2M3418Z GYNAECOLOGY 1 TOP FRAME 2M3418Z – Issue 02 Reference Description Quantity Part Issue Number Number Status Bush 796.237 Issue Date 8/99 12/99 E.C.N.
  • Page 22 PARTS LIST A7317 SLIDING LEG SUPPORT ASSEMBLY 2M3420Z – Issue 03 Reference Description Quantity Part Issue Number Number Status Leg Support Socket 3A3624Z M10x42 Brass Stud 3G4431Z M10 Half Nut 5L3319A Single Pin Button Lock 5M2850P M10x2-1/4” Knob 5N1582N 45x20x14-20G Insert 5N3832Z Issue Date...
  • Page 24 PARTS LIST A7318 ACCESSORY MOUNTING BRACKET ASSEMBLY 2M3421Z – Issue 03 Reference Description Quantity Part Issue Number Number Status Arm Rest Bracket 3A3689Z Arm Rest Fixing Plate 3F3695Z M10x25 Brass Stud 3G5023Z M8x40 CSK Allen Screw 5J7862U M10 Half Nut 5L3319A 2-1/4"x M10 Knob 5N1582N...
  • Page 26 PARTS LIST A7302 SHELF ASSEMBLY 2M3423Z – Issue 04 Reference Description Quantity Part Issue Number Number Status Shelf Bar 3A3697Z M5x12 Pan Head Set Screw 5K1135T R Clip 5M0800R 3/4" x 16G Grey Insert 5N9251M Gynae Shelf 5U1600Z Issue Date 9/99 12/99 3/00...
  • Page 28 PARTS LIST A7301 SINGLE ADJUSTABLE ARM SUPPORT 2M3424Z – Issue 04 Reference Description Quantity Part Issue Number Number Status Leg Support Assembly 3A3688Z Arm Support Pivot Plate 3A3696Z M12x60 Steel Stud 3A9415Z M6x6 Grub Screw 5J7653Z No 10x1" CSK Set Screw 5K0411Z M12 Half Nut 5L3519C...
  • Page 30 PARTS LIST PAPER ROLL HOLDER A7292 – Issue 02 Reference Description Quantity Part Issue Number Number Status Paper Roll Holder Frame 3A3630Z End Cap with 12.7mm Hole 3F3632Z End Cap with 15.875mm Hole 3F3633Z Spacer (15.5mm) 3G3620Z Paper Roll Tube 3G3621Z Paper Roll Sleeve 3G3634Z...
  • Page 32 PARTS LIST LEG SUPPORT A7309 – Issue 02 Reference Description Quantity Part Issue Number Number Status Leg Support Assembly 3A3688Z M12x60 Steel Stud 3A9415Z M12 Half Nut 5L3519C Tee Handle 1347 Black 5N1630Q Ball Joint 5T0051Z Joint Nut 5T0053Z Leg Rest Moulding 5T0067Z Issue Date...
  • Page 34 PARTS LIST ARM LOOPS A7310 – Issue 02 Reference Description Quantity Part Issue Number Number Status Arm Rest Support Bracket 3A3690Z M6x20 Cap Head Screw 5J7658R Arm Rest Loop 5T0062Z Issue Date 03/00 03/01 E.C.N.
  • Page 36 PARTS LIST HANNING SINGLE HANDSWITCH ASSEMBLY 2Z0300Z – Issue 03 Reference Description Quantity Part Issue Number Number Status Handswitch 5F2100Z Large Curly Wrap 0.03 5S0327Z Self Adhesive Magnet 5T8400Z Switch Label 5U1034Z Issue Date 1/96 E.C.N.
  • Page 38 PARTS LIST HANNING SINGLE FOOTSWITCH ASSEMBLY 2Z0400Z – Issue 04 Reference Description Quantity Part Issue Number Number Status Footswitch 5F2000Z Round Air Pipe 5F7000Z Large Curly Wrap 0.03 5S0327Z Issue Date 1/96 E.C.N.

  • Page 40: Parts List

    PARTS LIST Magnetic 1 Channel Footswitch Assembly A7316 – Issue 01 Reference Description Quantity Part Issue Number Number Status Magnetic 1 Channel Foot Switch 5F9107Z Push in Rubber Foot 5T4400Z Issue Date 02/00 E.C.N.
