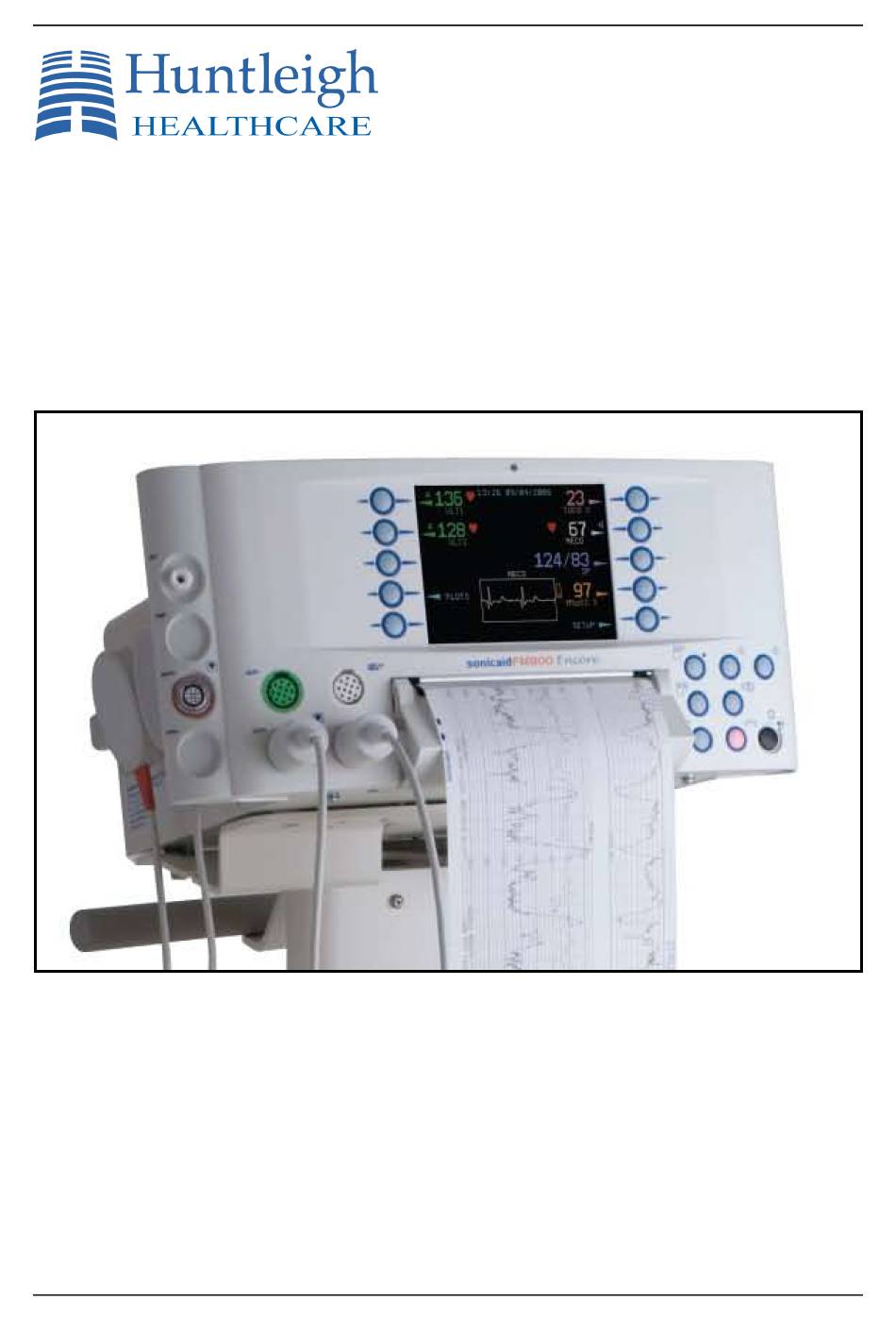

- Page 1 FM800Encore ® FM800ENCORE SERVICE MANUAL FM800Encore Service Manual...
-
Page 2: Table Of Contents
Diagrams ............................ 23 Disassembly ..........................26 10 Maintenance ..........................31 11 Troubleshooting Guide ......................33 12 Spare parts ..........................34 12.1 Ordering Spare Parts ......................34 12.2 Recommended Spare Parts....................34 13 End-of-Life Disposal........................35 14 Warranty............................. 36 FM800Encore Service Manual... - Page 3 This manual and any changes are protected by copyright. FM800Encore®, Huntleigh and 'H' logo are registered trademarks of Huntleigh Technology Ltd. 2008. © Huntleigh Healthcare Ltd. 2008...
-
Page 4: Quality, Reliability And Safety
Huntleigh Healthcare Limited can accept responsibility only if the following conditions are observed: The equipment is used in accordance with the instructions for use provided by Huntleigh Healthcare. The equipment is used in a building whose electrical installations conform to the standards specified by the country in which the building is situated. - Page 5 Quality, Reliability and Safety Cautions Cautions are identified by the Caution symbol shown above. Cautions alert the user to exercise care necessary for the safe and effective use of FM800Encore monitor. CAUTION: Do not mount the equipment directly above the patient. Place the...
-
Page 6: Introduction
Introduction 2 Introduction This manual contains information for servicing the FM800Encore monitor. Only qualified service personnel should service this product. Before servicing FM800Encore, read the user’s manual carefully for a thorough understanding of safe operation. Read and understand all safety warnings and service notes printed in this service manual and the user’s manual. -
Page 7: Product Description

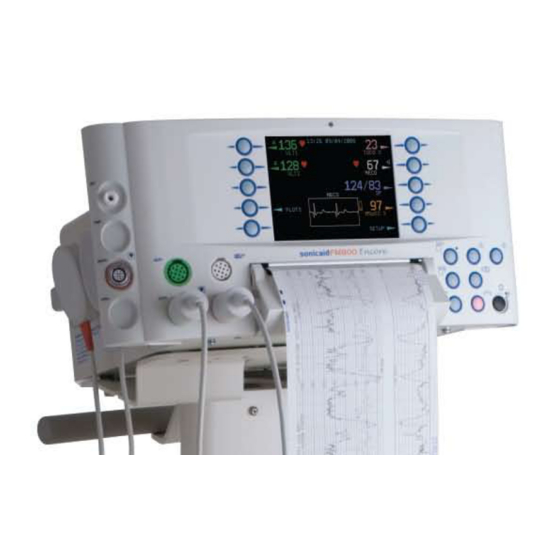

Product Description 3 Product Description The Sonicaid FM800Encore range of monitors is designed to provide flexible solutions for intrapartum monitoring needs, both for today and in the future. A choice of two models allows for the selection of the facilities required, from standard intrapartum fetal monitoring capabilities to high-risk fetal or maternal care. -
Page 8: Product Specification
High and Low FHR: 30 to 240 bpm Signal Alarms Loss: % loss in last 5 minutes Mode Directional pulsed Doppler Repetition rate 3.0KHz Frequency 1.0MHz (green) <1Mpa <20mW/cm2 Ispta <100mW/cm2 Resolution 12 bits Safety Type CF protection FM800Encore Service Manual... -
Page 9: Foetal Ecg (Fecg)
0-100 mmHg/0-15 kPa (user selectable) Sensitivity 5µV/V/mmHg Accuracy ±5% Safety Type CF protection Maternal heart rate and ECG Range 30-240 bpm Accuracy ±1 bpm High and Low (30-240 bpm) Alarms Rate Signal Loss Safety Type CF protection FM800Encore Service Manual... -
Page 10: Maternal Blood Pressure
Less than 70% is undefined. Pulse rate range 30-254 bpm Pulse rate accuracy ±3 bpm On-screen display and printed record of: Record/display Maternal % SpO2 Heart rate High and low saturation: 0-100% SpO2 Alarms Signal loss: Pulse or ECG FM800Encore Service Manual... -
Page 11: Installation
Surface Mounting The FM800Encore series units can be free-standing on any suitable stable surface. The unit should not overhang the surface. There are four high-adhesion rubber feet attached to the base of the unit these should help prevent the unit moving on the surface. If required the front of the Monitor can be tilted up by hinging down the front feet extensions. - Page 12 Installation FM800Encore Service Manual...
-
Page 13: Wall Mounting
Monitor must be securely attached to the shelf section of the wall mounting kit using the hardware provided. STEP (1): Fit the mounting plate (item 1) as shown in figure below, FM800Encore Service Manual... - Page 14 Installation STEP (2): Adjust the pivot arm to the required height. STEP (3): Slide the unit onto the carrier plate. Note: Make sure the locking pin is fully engaged. FM800Encore Service Manual...
- Page 15 Installation Locking pin must be fully engaged Item Description Quantity MOUNTING PLATE M3x14 SCREW GCX M-SERIES 12" PIVOT ARM GCX UTILITY BASKET FM800Encore Service Manual...
-
Page 16: Safety Testing
Safety Testing 6 Safety Testing FM800Encore safety tests meet the standards of, and are performed in accordance with IEC60601-1, for instruments classed as Class 1, Type CF. Please note that Dielectric strength testing as per clause 20 of EN60601-1 is carried out before the units leave the factory. -
Page 17: Earth Leakage Current
7) Repeat the patient leakage current test for all patient connections, using the appropriate test cables. Note: Contractions transducer (TOCO/IUP) socket has no direct patient connections. The patient leakage current can be measured by wrapping the transducer in aluminium foil and then attaching the test cable to the foil. FM800Encore Service Manual... -
Page 18: Patient Leakage Current (Mains On Applied Parts)
Note: Patient leakage current is measured with normal and reverse mains polarity. For each condition, the measured leakage current must not exceed that indicated in the table below. Allowable Leakage Test Condition Current (µA) Normal Condition (NC) Normal Condition RM (NCRM) FM800Encore Service Manual... -
Page 19: Patient Auxiliary Current
Allowable Leakage Test Condition Current (µA) Normal Condition (NC) SFC Open Supply (SFC OS) SFC Open Earth (SFC OE) Normal Condition RM (NCRM) SFC Open Supply RM (SFC OSRM) SFC Open Earth RM ( SFC OERM) FM800Encore Service Manual... -
Page 20: Performance Verification
All tests can be performed without removing FM800Encore cover. All tests must be performed as the last operation before the monitor is returned to the user. If FM800Encore fails to perform as specified in any test, repairs must be made to correct the problem before the monitor is returned to the user. -
Page 21: Time And Date
2. Connect the Cuff to the outlet of the QA-1290 simulator then connect NIBP Module to the INLET of the analyser. 3. Switch on the analyser and press BP test. 4. On the simulator select Adult cuff then the setting of 80/48, HR: 80 then press start. FM800Encore Service Manual... -
Page 22: Ultrasound
4. With the rubber surface still uppermost and level, reset the zero then place a 100g weight in the centre of the boot. 5. The shape of this weight is important and the contact area on the rubber boot should be 12mm diameter maximum. The TOCO display should indicate 80% ±10%. FM800Encore Service Manual... -
Page 23: Diagrams
Diagrams 8 Diagrams Drawing No. Description Figure 1 FM800E Block Diagram FM800Encore Service Manual... - Page 24 Generation of the ultrasound carrier frequencies and gating signals. Buffering the averaged samples in the FPGAs internal FIFOs. A read port to allow this data to be transferred to the Au1100. A serial interface to the isolated micro-controllers for ECG and Toco. FM800Encore Service Manual...
- Page 25 LED backlight control: This is to vary the LCD output intensity by adjusting the current in • the backlight LEDs. The light can be adjusted by software or can be set to automatic. USER INTERFACE KEYS: A total of 17 keys are provided for user interface control. • FM800Encore Service Manual...
-
Page 26: Disassembly
The chassis cover is held by a total of 11 screws, 7 at the rear panel and 4 on the side rails. Torque = 60cN/M Gently slide the lid to the back and lift upward. Disconnect the speaker loom from CON12. FM800Encore Service Manual... - Page 27 Disassembly Removing NIBP Module Detach the air tube from the module as shown below. M3 Screws and Shake-proof Washers Remove the four mounting screws. Detach the NIBP loom from the module PCB. Press down NIBP Module Loom FM800Encore Service Manual...
- Page 28 Disassembly Module PCB The module PCB is held by 8 M3 screws as shown below. BCI MSPO Module TOP VIEW Rear view Top view FM800Encore Service Manual...
- Page 29 Pod bracket FECG/MECG (CON9) TOCO (CON11) Paper out sensor Print head interface Plastic Cover Strip FM830E Front panel FM820E or FM830E front panel Signal processing board (SPB) Nylon Pillars (FM830E) Screws and washers in these positions (FM820E) FM800Encore Service Manual...
- Page 30 Disassembly Digital board (NDB) Paper out sensor Remove tie bar screw Print head interface Unplug event marker connectors Unplug power connectors 8 off Pillars Unplug stepper motor connector Push the PCB this way M3 Screw FM800Encore Service Manual...
-
Page 31: Maintenance
1 Withdraw the paper tray and remove the paper pack. 2 Using a lint-free cloth and pure alcohol, wipe along the full width of the print head, which is above the paper tray compartment. iii. 3 Re-fit the paper pack and return the paper tray. FM800Encore Service Manual... - Page 32 Do not dispose of batteries in refuse containers. Further Maintenance Huntleigh Healthcare recommends that preventative maintenance checks are carried out on the unit under a Huntleigh Healthcare Service Contract at 6-monthly intervals. Alternatively, the maintenance may be carried out by suitably qualified personnel.
-
Page 33: Troubleshooting Guide
Is the paper tray fully pushed in? Only one trace (twins) OR Correct "FHR scale for twins ‟ in Printer setup. Traces superimposed (twins) No beep when button pressed. Beep may be turned off. Alarm not working Alarm may be turned off. FM800Encore Service Manual... -
Page 34: Spare Parts
Items returned for replacement under guarantee should be labelled with the unit type, serial number, date of purchase, if known, and written details of the symptoms or fault found. Orders for spare parts may be sent by post, telex, fax or telephoned to Huntleigh Healthcare or approved agents or distributors. -
Page 35: End-Of-Life Disposal
EOL (end-of-life) disposal. Rules for the User: within the EU, at end-of-life, this product may be disposed of only through a government approved collection scheme or treatment facility. If in doubt contact your local Huntleigh Healthcare Ltd representative. FM800Encore Service Manual... -
Page 36: Warranty
Warranty 14 Warranty Huntleigh Healthcare Ltd (HHC.) provides a comprehensive warranty of 2 years from the date of purchase on hardware products and modules. Transducers have a 12-month warranty, and consumables and accessories (i.e. disposables and items with no serial number) have a 90-day warranty.
